Chevrolet G20 Headlight Switch: A Guide for 1980-1995 Van Owners
Having trouble with your van's headlights? The switch is a common failure point, but it's an easy fix.
- Headlight switch failure is very common on these vans, often due to the internal circuit breaker wearing out.
- Symptoms include flickering lights, total light failure, and a hot switch.
- Replacement is a simple DIY job that takes less than 30 minutes with basic tools.
- For best results, choose a quality aftermarket brand like ACDelco or Standard Ignition and always inspect the wiring plug for damage.
Is Your G20 Headlight Switch Failing?
On these classic Chevy vans, the headlight switch is a frequent weak point. After decades of use, the internal components simply wear out. The electrical contacts can corrode, and the built-in circuit breaker that protects your lights can become weak, causing it to trip unnecessarily. If you're experiencing strange lighting problems, there's a very good chance the switch is the culprit.
Common Symptoms of a Bad Headlight Switch
- Flickering or Intermittent Headlights: Your headlights may flash on and off randomly. This is often the internal circuit breaker overheating and resetting itself.
- Headlights or Parking Lights Won't Turn On: You might pull the switch and get nothing, or only some lights work. This points to broken internal contacts.
- Switch is Hot to the Touch: A failing switch can create high resistance, generating heat. You might also smell burning plastic or see smoke in severe cases.
- Dashboard Lights Malfunction: The dimmer for the instrument panel may stop working, or the dash lights might not come on at all, even if the headlights do.
Choosing the Right Aftermarket Headlight Switch
For a vehicle like the 1980-1995 G20, new Original Equipment (OEM) parts from GM are generally no longer available. The aftermarket is your primary source. Quality is important for electrical parts, so here’s a breakdown of the available brands.
Tier 1: OEM-Quality Aftermarket (ACDelco, Standard Ignition)
These brands are the top choice for reliability. ACDelco is General Motors' own parts brand, and their components are considered an OEM-equivalent, engineered to the original specifications. Standard Ignition (SMP) is a highly respected aftermarket manufacturer with a long history of producing quality electrical parts that meet or exceed OEM performance. For a critical safety component like a headlight switch, spending a little more on one of these brands is a smart investment in long-term reliability.
Tier 2: Budget-Friendly (Replacement)
"Replacement" branded parts are a more affordable, generic option. While they will fit and function, their internal components may not be as robust or long-lasting as the premium brands. For a daily-driven van or one you rely on for long trips, a Tier 1 brand is strongly recommended. For a vehicle that's used less frequently, a budget part can be a viable option to get your lights working again.
Headlight Switch Replacement Cost for 1980-1995 Chevrolet G20
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Budget) | $27 - $40 |
| New Aftermarket (Premium) | $40 - $70 |
| Shop Labor | $50 - $100 |
| Total Professional Replacement | $77 - $170 |
Frequently Asked Questions
Can I replace the headlight switch myself?
Yes, this is a very DIY-friendly job. It typically takes less than 30 minutes and only requires basic hand tools like a screwdriver. You will need to remove the lower dash trim panel 🎬 See this step-by-step walkthrough of the switch replacement process. to access the switch.
Do I need any special tools to replace the headlight switch?
No, special tools are not required. A Phillips or Torx screwdriver to remove the dash trim and possibly a small flathead screwdriver are usually all that's needed.
My lights still flicker after replacing the switch. What's wrong?
If a new, quality switch doesn't fix the problem, the issue is likely elsewhere in the circuit. The most common culprits are a bad ground connection at the headlights themselves or a faulty high/low beam dimmer switch, which is often located on the steering column.
Are there any recalls on the G20 headlight switch?
No open recalls were found for the headlight switch on the 1980-1995 Chevrolet G20. Any original safety campaigns would be long expired due to the vehicle's age.

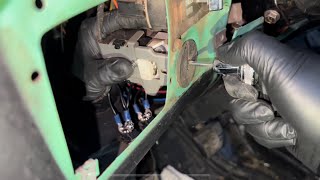

Helpful Videos
Technical Specifications
Typically a 7-terminal switch. The original knob and shaft must be reused.
