Choosing the Right Spark Plug Wire Set for Your 1980-1999 Cadillac DeVille
This guide will help you select the correct new aftermarket spark plug wire set to restore your DeVille's performance and reliability.
- You MUST identify your engine (e.g., 4.9L V8 vs. 4.6L Northstar V8) before ordering, as the parts are completely different.
- For most DeVille owners, a high-quality OEM-equivalent brand like ACDelco, Delphi, or NGK provides the best combination of performance and value.
- Replacing wires (or boots) at the same time as spark plugs is a best practice for ensuring long-term reliability.
- Symptoms of failure include rough idle, engine hesitation, poor fuel economy, and a Check Engine Light with misfire codes (P0300-P0308).
Engine Differences Are Key
Before buying a spark plug wire set for your Cadillac DeVille, you must know which engine your car has. The 1980-1999 period covers several different engines with very different ignition systems.

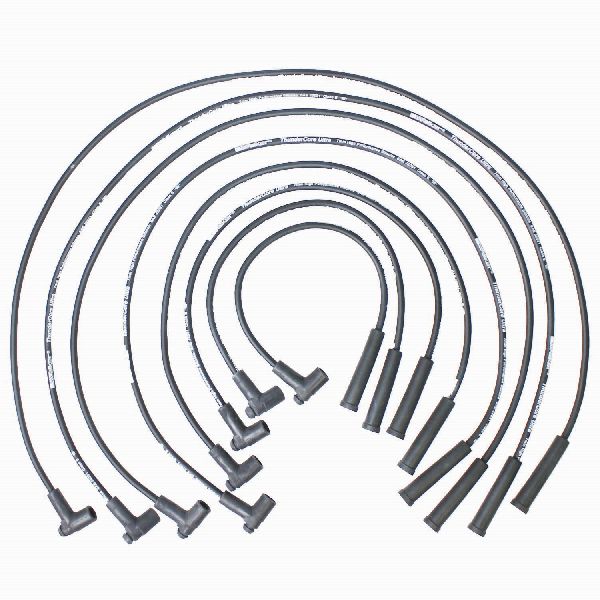

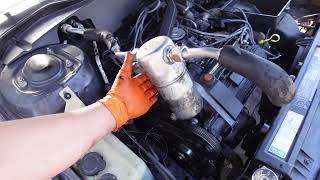

- 1980-1993 DeVille (e.g., 4.1L, 4.5L, 4.9L V8): These models use a traditional ignition system with a distributor and long spark plug wires that connect to each spark plug. When you shop for these models, you will be buying a set of 8 long wires. 🎬 Watch: Step-by-step spark plug and wire replacement for older DeVilles
- 1994-1999 DeVille (4.6L Northstar V8): These models use a more modern 'coil-on-plug' or 'coil-near-plug' system. They do not have traditional long spark plug wires. Instead, they use short ignition coil boots that connect the coil pack directly to the spark plug. Aftermarket retailers often sell these boots in a set, sometimes still calling it a "spark plug wire set." Be sure you are purchasing the correct parts for your Northstar engine. 🎬 See how to remove coils and boots on Northstar engines
Choosing the Right Aftermarket Brand
You don't need to buy the most expensive set to get good performance. For a daily-driven DeVille, a quality OEM-equivalent set is usually the best choice.
Tier 1: OEM-Equivalent & Premium Aftermarket
- ACDelco: As the original equipment (OE) supplier for General Motors, ACDelco is a trusted choice that guarantees a perfect fit and reliable performance. They offer both "GM Original Equipment" and a more affordable "Professional" line.
- Delphi: Delphi was once part of GM and is another top-tier manufacturer of original equipment parts. Their wire sets are considered to be of similar quality to ACDelco.
- NGK: Known for their high-quality spark plugs, NGK also produces excellent wire sets that are often considered an OEM-quality alternative.
Tier 2: Performance Brands
- MSD, Taylor Cable, Granatelli: These brands are geared towards high-performance applications. While they offer excellent quality and durability, they are generally overkill for a stock Cadillac DeVille engine. They often feature thicker 8mm or larger wires for improved heat resistance and lower electrical resistance.
Tier 3: Standard & Value Brands
- Standard Motor Products (Standard Wires), Denso, Walker Products: These brands offer a good balance of quality and price. They are a reliable choice for owners on a budget who still want a dependable part that meets or exceeds basic specifications.
Known Issues, Recalls, and TSBs
Searches for recalls and Technical Service Bulletins (TSBs) related specifically to spark plug wires on the 1980-1999 Cadillac DeVille did not yield direct results. However, some recalls for related systems are worth noting:
- NHTSA Recall 04014E: This recall concerned a fuel rail issue on 1995-1997 DeVille models with the 4.6L V8. The repair procedure involves disconnecting and repositioning spark plug wires to access the fuel rail, highlighting the importance of proper wire routing to avoid contact with hot or moving parts.
- Ignition System Recalls: Some DeVille models were part of broader GM recalls for ignition switch problems that could cause the engine to shut off while driving. While not directly related to the wires, it shows the importance of a fully functional ignition system.
Cost of New Aftermarket Spark Plug Wire Sets
| Brand Tier | Example Brands | Estimated Price Range |
|---|---|---|
| OEM-Equivalent / Premium | ACDelco, Delphi, NGK | $70 - $130 |
| Performance | MSD, Taylor Cable | $100 - $197 |
| Standard / Value | Standard Wires, Denso, Walker | $28 - $75 |
Note: Prices for Northstar coil boot sets can be different from traditional wire sets. Labor costs for replacement can range from $134 to $197, depending on the engine and location.
Frequently Asked Questions (FAQ)
Should I replace the wires when I change my spark plugs?
Yes, it is highly recommended to replace the spark plug wires (or boots on a Northstar) at the same time as the spark plugs. This ensures the entire ignition system is refreshed, providing optimal performance and preventing old wires from stressing new plugs.
🎬 Watch: Complete tune-up and coil pack replacement walkthroughWhat's the difference between 7mm and 8mm wires?
The measurement refers to the diameter of the wire's outer insulation. Thicker wires, like 8mm, generally offer better insulation against heat and electrical interference (RFI). For a stock DeVille, the standard 7mm OEM-style wire is perfectly adequate. Performance wires are often 8mm or larger.
Do I need to use dielectric grease?
Yes. Applying a small amount of dielectric grease to the inside of the spark plug boots is crucial. It helps seal out moisture, prevents corrosion, and makes it easier to remove the wires in the future. It also helps prevent high-voltage leaks.
Why is replacing wires on a Northstar engine different?
The Northstar V8 has its ignition coils and boots located under plastic covers on top of the engine. On some models, the rear set of coils can be very difficult to access, requiring the removal of other components. The older pushrod V8s have more traditional wire routing, but the rear wires can still be challenging to reach near the firewall.
Helpful Videos
Technical Specifications
The primary difference between models is traditional spark plug wires for pre-1994 engines (like the 4.9L V8) versus ignition coil boots for 1994-1999 Northstar V8 engines. Wire diameter (typically 7mm or 8mm) and core material (e.g., spiral core, carbon core) are key specifications for traditional sets.
