Engine Cylinder Head Bolt Set Guide for the 1981-1985 Dodge Challenger
Keep your Challenger's unique Mitsubishi engine sealed tight by understanding its specific head bolt needs.
- Your 1981-1985 Challenger has a Mitsubishi G54B engine, which is known for cylinder head cracking issues.
- Always replace head bolts when servicing the cylinder head or head gasket; it is inexpensive insurance against repeat failures.
- The correct multi-step torque procedure is more critical to a successful repair than the specific aftermarket brand of bolts you choose.
- This is a professional-level repair that requires specialized tools and knowledge and is not recommended for a DIY beginner.
A Challenger with a Different Heart
Before working on your 1981-1985 Dodge Challenger, it's important to know it's not like the other generations. This model is a "captive import," built by Mitsubishi in Japan and sold under the Dodge name. Most of these cars have a 2.6L 4-cylinder engine, known as the G54B. This engine has its own specific needs, especially when it comes to the cylinder head.
Known Issues: Cracked Cylinder Heads
The Mitsubishi G54B engine is known for a specific problem: the cylinder heads have a tendency to crack, especially between the valves or near the small "jet valves" used for emissions. This issue is often caused by overheating. When the head is replaced, or the head gasket is changed, the head bolts must also be addressed. Reusing old bolts is a major risk that can lead to a repeat failure of the new gasket.
Always Use New Bolts
While the original bolts on the G54B engine are not technically Torque-to-Yield (TTY), they should always be replaced. Over decades of heat cycles and stress, old bolts can stretch. A stretched bolt will not provide an accurate torque reading, leading to improper clamping force and a leaking head gasket.

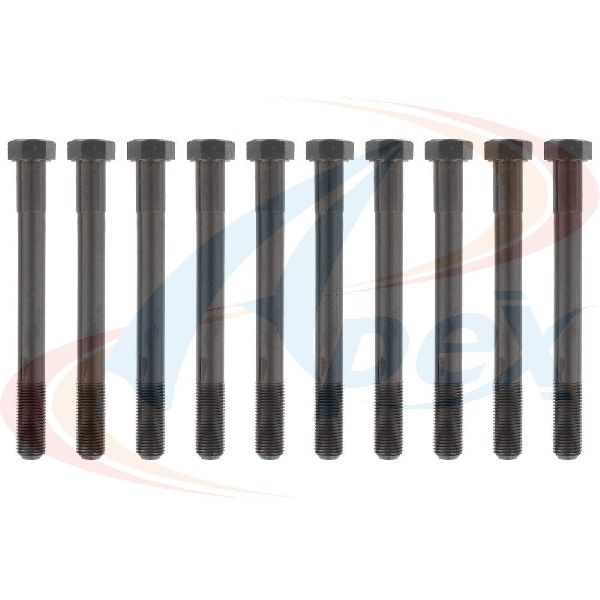

Choosing the Right Aftermarket Head Bolts
Since Original Equipment Manufacturer (OEM) parts are no longer made for this vehicle, you will be choosing from aftermarket brands. For a stock engine rebuild, the specific brand is less important than the installation procedure. Both available brands offer a viable solution.
- Pioneer Cable: Pioneer is a well-known aftermarket supplier that produces a wide variety of replacement parts. Their components are generally seen as budget-friendly, economy-level parts that meet basic factory specifications. For a standard daily driver, these bolts are a perfectly acceptable choice.
- Apex: Apex is another aftermarket brand that produces engine components, including gaskets and hardware. While some online discussions mention issues with their high-performance head studs on modern, high-horsepower engines, these concerns are not directly related to the standard bolts for this vintage application. They are considered a standard aftermarket option.
Pro Tip: The success of your head gasket job depends on a clean, flat surface and proper bolt tightening. The torque sequence and steps must be followed exactly as the service manual specifies for the Mitsubishi engine. An improperly torqued bolt will cause failure, no matter which brand you buy.
Estimated Replacement Costs
Replacing head bolts is part of a larger head gasket or cylinder head replacement job. The costs reflect the entire job, as the bolts are only a small fraction of the total price.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Head Bolt Set | $44 - $68 |
| Shop Labor (for complete head gasket job) | $800 - $1800 |
| Total Estimated Cost | $844 - $1868 |
Frequently Asked Questions (FAQ)
Do I absolutely have to replace my head bolts?
Yes. It is standard practice for any professional mechanic. Old bolts can stretch and fatigue, providing uneven or incorrect clamping force even when torqued to spec. For the small cost of a new set, you are insuring the entire expensive job of replacing the head gasket.
Why can't I find parts for a 1985 Dodge Challenger?
The second-generation Dodge Challenger was produced from 1978 to 1983. While your vehicle may be titled as a later year from its initial sale date, the manufacturing run ended in 1983, and parts are listed accordingly. There was no 1984 or 1985 model produced.
Are there any recalls for the 1981-1985 Challenger head bolts?
No. A search of the National Highway Traffic Safety Administration (NHTSA) database shows no recalls for the engine cylinder head bolts on this generation of Dodge Challenger.
Is this a difficult job to do myself?
Yes, this is a very advanced repair. It requires partial disassembly of the engine, a torque wrench, and a deep understanding of engine mechanics. This job is not recommended for a beginner and should be left to an experienced mechanic.
Technical Specifications
Designed for the Mitsubishi G54B 2.6L SOHC 8-valve engine. These are non-Torque-to-Yield (non-TTY) bolts. A specific, multi-step torque sequence and pattern is required for proper installation.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
