A Guide to Replacing the Engine Oil Pan on Your 1981-1985 GMC Jimmy
Stop that oil leak for good by choosing the right replacement oil pan for your classic Jimmy.
- The primary cause of failure is rust perforation or physical damage; new aftermarket pans are the most practical solution.
- Replacement on a 4x4 Jimmy is a very involved job that requires lifting the engine to clear the front crossmember.
- Always use a new, one-piece rubber gasket for the best seal and consider replacing the oil pump and rear main seal at the same time.
- Brands like ATP and Pioneer may offer heavier-duty steel pans, while Dorman and Spectra are reliable standard replacements.
Is Your GMC Jimmy's Oil Pan Failing?
On a classic truck like the 1981-1985 GMC Jimmy, the original oil pan has faced decades of heat, moisture, and road hazards. The most common reason for replacement is rust. Over time, rust can eat through the steel, causing pinhole leaks that only get worse. Another frequent issue is damage from off-roading, where rocks or obstacles can dent or even puncture the pan. Finally, the drain plug threads can strip out after years of oil changes, making a proper seal impossible.
Symptoms of a Bad Oil Pan
- Visible Oil Puddles: The most obvious sign is a puddle of dark oil on the ground where you park.
- Low Oil Level Light: Your dashboard's oil warning light may come on, or you'll notice the level is consistently low on the dipstick.
- Visible Damage or Rust: A visual inspection may show the pan is wet with oil, heavily rusted, or dented. A slow leak often collects a layer of greasy dirt and grime.
- Burning Oil Smell: If oil leaks onto the hot exhaust system while you're driving, it can create a distinct burning smell.
A Note on Leaks vs. Seeps
A small amount of dampness or "seeping" around the oil pan gasket might be acceptable on an older vehicle. However, any active drip that leaves spots on the pavement needs to be addressed. A significant oil leak is not just messy; it's a fire hazard and can lead to catastrophic engine failure if the oil level drops too low.
OEM vs. Aftermarket Oil Pans
Finding a brand new Original Equipment Manufacturer (OEM) oil pan for a vehicle from this era is highly unlikely, as they have been discontinued for years. Your main choices will be between a used OEM part from a salvage yard or a new aftermarket part.
- Used OEM: A used pan from a dry, rust-free region can be a good option. It will have the original fit and material quality. However, you risk getting a part that is already old, may have internal rust, or could have hidden damage.
- New Aftermarket: Aftermarket pans are brand new, readily available, and often affordable. Many come with a new drain plug and some feature corrosion-resistant coatings. Quality can vary by brand, but for a simple part like an oil pan, many aftermarket options are perfectly suitable.
Choosing the Right Aftermarket Brand
Several brands offer replacement oil pans for your Jimmy. They generally fall into a few tiers based on reputation and user reviews.

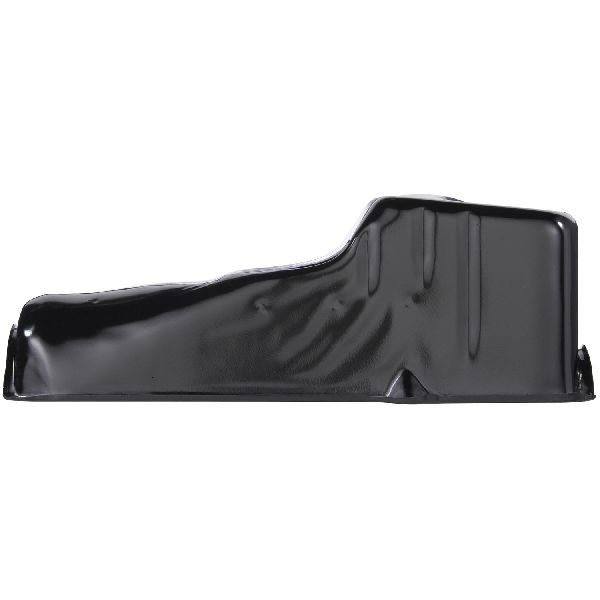

Standard Replacement Brands: Dorman & Spectra
Dorman and Spectra are common, widely available brands. For a basic stamped steel part like an oil pan, they are often considered reliable choices. Forum users have noted that sometimes parts from both brands appear identical, possibly coming from the same factory. Dorman is known for sometimes adding a drain plug to pans that didn't originally have one. While most users have good experiences, there have been occasional reports of fitment issues or cracks developing over time.

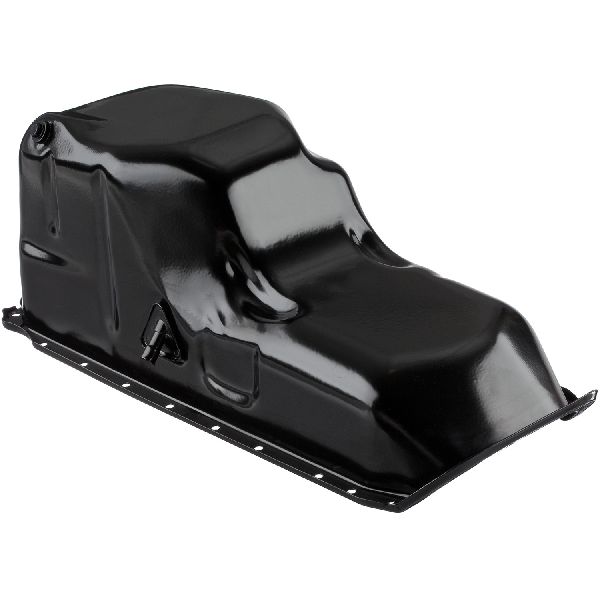

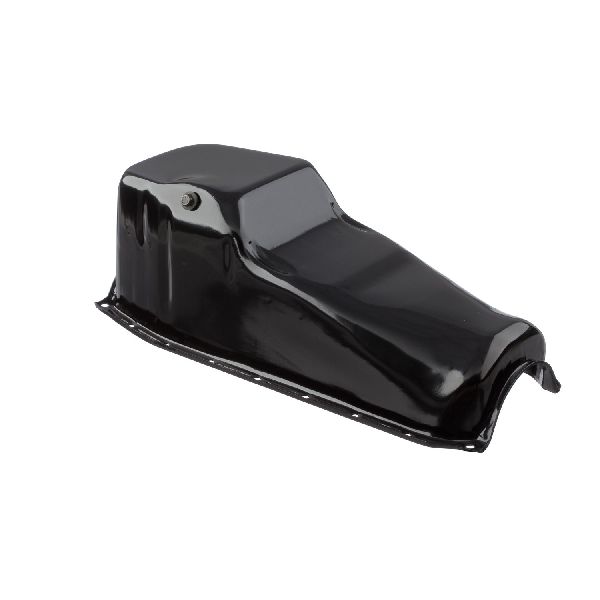

Enhanced Quality Brands: ATP / Pioneer
ATP has a reputation among some users for producing oil pans that are heavier and made from thicker steel than the original part, sometimes with better corrosion-resistant coatings. Pioneer Cable is often associated with ATP, and some parts are co-branded. If you are looking for a potentially more durable, long-lasting replacement, this tier is worth considering.
Specialty & Performance Brands: Trans-dapt
Trans-dapt focuses more on performance and custom applications, such as chrome-finished pans or pans for engine swaps. While some of their products are well-regarded, reviews for their standard replacement pans can be mixed, with some users reporting significant fitment problems. For a stock replacement, it's usually best to stick with the other brands unless you have a specific custom need.
Pro Tip: Get a One-Piece Gasket
Regardless of which pan you choose, pair it with a quality one-piece rubber gasket from a reputable brand like Fel-Pro. Mechanics and DIYers widely recommend them for providing a much better seal than older multi-piece cork gaskets. Also, remember to apply a small dab of RTV silicone at the corners where the timing cover and rear main seal meet the engine block.
Cost of Replacing a 1981-1985 GMC Jimmy Oil Pan
| Part Source | Estimated Cost |
|---|---|
| New Aftermarket Part | $108.69 - $260.87 |
| Shop Labor | $450 - $800+ |
| New OEM Part | Discontinued/Not Available |
| Used OEM Part | $50 - $150 |
Cost estimates are for parts and labor and may vary based on your location and the specific rates of your mechanic.
Frequently Asked Questions (FAQ)
How hard is it to replace the oil pan on a 4x4 Jimmy?
It is a difficult job. On 4x4 models (K-series), the front axle and crossmember are directly below the oil pan. To get enough clearance to remove it, you must unbolt the motor mounts and lift the engine several inches with a hoist or a jack. In some cases, you may also need to unbolt the oil pump pickup inside the pan to get it out. This is not a simple bolt-off, bolt-on job.
Do I need any special tools?
Yes. You will need a way to safely lift and support the engine, such as an engine hoist (cherry picker). You will also need a full set of sockets, wrenches, a torque wrench for proper reassembly, and potentially a gasket scraper. A special socket for the oil pressure sending unit may be needed if you have to remove it for clearance.
Should I replace anything else at the same time?
Absolutely. Since the job is so labor-intensive, it is the perfect time to replace the oil pump and the rear main seal, which is a common source of oil leaks. If your pan is rusted, there's a good chance your timing cover is as well, so inspect it carefully.
My drain plug is stripped. Do I need a whole new pan?
Not necessarily, but it's often the best long-term solution. There are repair kits with oversized, self-tapping drain plugs, but they are temporary fixes. Given the age of the vehicle and the likelihood of rust, replacing the entire pan is usually the most reliable repair.
Technical Specifications
Material: Stamped Steel Location: Bottom of Engine Common Gasket Type: One-piece rubber or multi-piece cork Primary Failure Mode: Corrosion (Rust)
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
