A Guide to the Engine Intake Manifold Gasket Set for the 1981-1987 Pontiac Firebird
Leaking coolant or a rough idle on your Firebird? Your intake manifold gasket might be the problem.
- You MUST correctly identify your Firebird's specific engine (e.g., Chevy 305, Pontiac 301) before buying a gasket set.
- Symptoms of failure include coolant leaks from the top of the engine, overheating, a rough idle, and milky-looking oil.
- Most mechanics recommend using RTV sealant for the front and rear seals ('China walls') instead of the included rubber or cork gaskets.
- Plan to change your oil and coolant as part of the replacement job to remove any contamination.
Is Your Firebird's Intake Gasket Failing?
The intake manifold gasket on the 1981-1987 Pontiac Firebird engines is a common failure point due to age. These gaskets endure constant temperature changes, which can cause them to become brittle, crack, and leak. The most common signs of a problem are coolant leaks, engine overheating, and performance issues.
Engine Identification is Critical

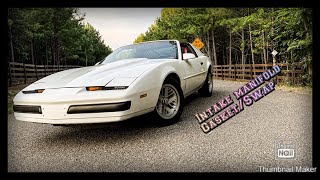

The 1981-1987 Firebird was built with several different engines, including V6 and V8 options from Buick, Pontiac, and Chevrolet. There is no single gasket set that fits all models. You must identify your specific engine before ordering a part. Check the VIN or engine block casting numbers to confirm if you have a Chevrolet 305, a Pontiac 301, 🎬 Watch this step-by-step guide for replacing a Chevy 305 intake gasket. or another engine variant. Using a gasket set for the wrong engine will result in major leaks and engine problems.
Symptoms of a Bad Intake Manifold Gasket
If your Firebird's intake gasket is failing, you'll likely notice one or more of these issues:
- Coolant Leaks: This is the most common symptom. You may see coolant dripping from the top of the engine, near the front or rear corners of the cylinder heads. Sometimes the leak is internal, and you won't see a puddle on the ground.
- Engine Overheating: A loss of coolant from a bad gasket will cause the engine to run hot. If you constantly have to add coolant, a leaky gasket is a likely suspect.
- Milky Engine Oil: If the gasket fails between a coolant passage and the engine's crankcase, coolant will mix with the oil. This creates a milky, frothy substance on your dipstick or oil cap and can cause severe engine damage.
- Rough Idle & Misfires: A break in the gasket can create a vacuum leak, letting unmetered air into the engine. This disrupts the air-fuel ratio, leading to a rough idle, engine misfires, and a general lack of power.
- Poor Fuel Economy: When the engine's computer tries to compensate for a vacuum leak, it often results in using more fuel than necessary.
Choosing the Right Aftermarket Gasket Set
For a vehicle of this era, aftermarket gaskets often provide excellent quality, sometimes improving on the original designs. The brands available offer a range of options for different needs and budgets.
Brand Quality Tiers
Performance Tier (Cometic, Edelbrock):
- Cometic: Known for high-performance, durable gaskets that seal very well. They are often made from advanced materials and can be a good choice for modified engines or if you want the best possible seal.
- Edelbrock: A legendary name in performance parts. Their gaskets are high quality, but be aware that some are designed specifically for their own aftermarket cylinder heads and intake manifolds. If you have stock cylinder heads, double-check that the gasket ports are not too large, which could cause a leak.
Quality OE-Replacement Tier (Victor Gaskets/Reinz):
- Victor Reinz: A well-respected manufacturer that supplies parts to automakers directly. Their gaskets are engineered to resist modern coolants and seal imperfect surfaces, making them a reliable choice for a stock or lightly modified Firebird.
Standard/Economy Tier (Apex):
- Apex: This brand offers gaskets that meet or exceed original factory specifications at a budget-friendly price. They are a good option for a standard repair when cost is a primary concern.
Pro Tip: Ditch the Rubber End Seals
Many V8 gasket kits for this era come with rubber or cork seals for the front and rear of the intake manifold (the "China walls"). Most experienced mechanics throw these away and instead apply a thick bead of high-quality RTV silicone sealant. This method provides a more reliable and durable seal against oil leaks.
🎬 See how to install gaskets without leaks using the RTV method.Estimated Costs for Replacement
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $10.00 - $72.59 |
| Shop Labor | $350 - $600 |
Frequently Asked Questions
Do I need any special tools for this job?
You will need a good set of sockets and wrenches, a torque wrench, a scraper for cleaning old gasket material, and possibly a fuel line disconnect tool. The torque wrench is essential for tightening the intake manifold bolts to the correct specification and in the proper sequence to ensure an even seal.
🎬 Watch a professional demonstration of installing SBC intake manifold gaskets.What are the different port shapes and heat crossover options?
You will see gaskets with different intake port shapes and sizes; these must match your cylinder heads and intake manifold. You may also see options for a blocked or open exhaust heat crossover. The heat crossover helps the engine warm up faster in cold weather but also heats the incoming air, which can slightly reduce performance. For a street-driven car, an open crossover is usually fine. For maximum performance, many choose to block it.
Can I reuse my old intake manifold bolts?
While you can reuse the original bolts if they are in good condition, it is a good practice to clean the threads thoroughly before reinstallation. Some mechanics prefer to use new bolts to ensure proper clamping force, but it is not strictly required for this application.
Do I need to drain the oil and coolant to do this job?
Yes. You must drain the coolant completely to prevent it from spilling into the engine cylinders when you remove the manifold. It is also highly recommended to change the engine oil and filter after the job is complete, as some coolant will inevitably drip into the engine valley and can contaminate the old oil.
Helpful Videos

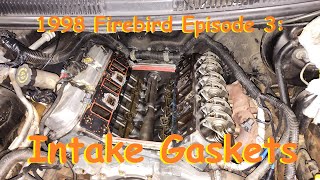

![1998 Firebird Ep. 3: 3800 V6 RWD (Camaro/Firebird) Intake Gasket Replacement [Full Tutorial]](https://img.youtube.com/vi/Wz62di7VL2E/mqdefault.jpg)
Technical Specifications
Varies significantly based on the engine installed in the vehicle. Common engines include the Chevrolet 5.0L (305) V8, Pontiac 4.9L (301) V8, and Buick 3.8L (231) V6. The gasket set must match the specific engine.
