Dodge B150 Engine Coolant Bypass Hose Replacement Guide (1981-1988)
Don't let a small, leaky hose cause major engine problems in your classic Dodge van.
- A failing bypass hose can cause catastrophic engine damage from overheating.
- Always choose a pre-shaped, molded aftermarket hose for a perfect fit; avoid universal hoses.
- Symptoms include coolant leaks, a sweet smell, steam, and a rising temperature gauge.
- Due to difficult access on vans, labor can be a significant part of the total replacement cost.
Is Your B150's Bypass Hose Failing?
On a van that's been on the road for over 30 years, rubber parts like the coolant bypass hose are living on borrowed time. Heat and age cause the rubber to crack, swell, and weaken. Because this hose is small and often buried under other parts, a leak can go unnoticed until it's a serious problem.
Key Failure Symptoms
- Coolant Leaks: This is the most obvious sign. You might see puddles of green or orange fluid under your van, especially towards the front of the engine. The leak might be a slow drip or a more significant stream.
- Sweet Smell: If you smell something sweet, like syrup, coming from the engine bay, it's likely burning coolant from a leak.
- Steam from Engine: A leaking bypass hose can spray hot coolant onto the engine, creating steam.
- Engine Overheating: If the hose fails completely, you will lose coolant rapidly. This can cause your engine to overheat, which can lead to severe and expensive damage like a blown head gasket.
- Low Coolant Level: If you constantly have to add coolant to the overflow tank, you have a leak somewhere in the system, and the bypass hose is a common suspect on these older vans.
Choosing the Right Aftermarket Hose
Original Mopar hoses for this van are likely discontinued. Thankfully, the aftermarket provides quality replacements. The most important factor is getting a molded hose. Unlike a straight piece of universal hose, a molded hose is pre-shaped to the exact bends and curves needed for your B150's engine, ensuring a perfect fit without kinks that could block coolant flow.
Aftermarket Brand Tiers
- Premium Brands (Gates, Continental): Gates is a highly respected name in the world of belts and hoses, often manufacturing parts for vehicle makers directly. They are known for excellent quality and precise fitment. Continental is another top-tier choice with a similar reputation. You can't go wrong with either of these brands.
- Quality Mid-Grade (Dayco): Dayco is a very popular and reliable brand. Some mechanics find their hoses to be slightly thicker, which they prefer. They offer a great balance of quality and price and are a solid choice for any B150 owner.
- Reputable Value (ACDelco): While traditionally a GM parts brand, ACDelco offers parts for many makes and models. For a Dodge, this part is likely made by one of the other major manufacturers and rebranded. They generally offer good quality for the price.
How Much Does a Bypass Hose Replacement Cost?
The part itself is inexpensive. However, labor costs can vary significantly because accessing the hose can be difficult on a van. A mechanic may need to remove the engine cover ('dog-house') inside the van, and potentially the alternator and A/C compressor brackets, to reach it.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Bypass Hose | $20 - $82 |
| Shop Labor | $150 - $350 |
| Total Estimated Cost | $170 - $432 |
Frequently Asked Questions
Are there any recalls for the Dodge B150 coolant bypass hose?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or specific technical service bulletins (TSBs) for the engine coolant bypass hose on the 1981-1988 Dodge B150. Failures are typically due to the age and wear of the rubber.
Can I use a universal hose instead of a molded one?
It is strongly recommended to use a molded hose designed for your vehicle. A universal hose can kink or rub against other engine components, leading to premature failure or restricted coolant flow. The small extra cost for a molded hose is worth the peace of mind.
How difficult is it to replace the bypass hose myself?
For an experienced DIY mechanic, this is a manageable job. However, for a beginner, it can be challenging due to the tight access in the van's engine compartment. The job often requires removing several other components to get to the hose, so it's more complex than a simple radiator hose swap.
What other parts should I inspect or replace at the same time?
While you're working on the cooling system, it's wise to inspect all other hoses for cracks, swelling, or soft spots. Consider replacing the thermostat and water pump if they are old, as the bypass hose often connects directly to them and you'll have already drained the coolant.
Technical Specifications

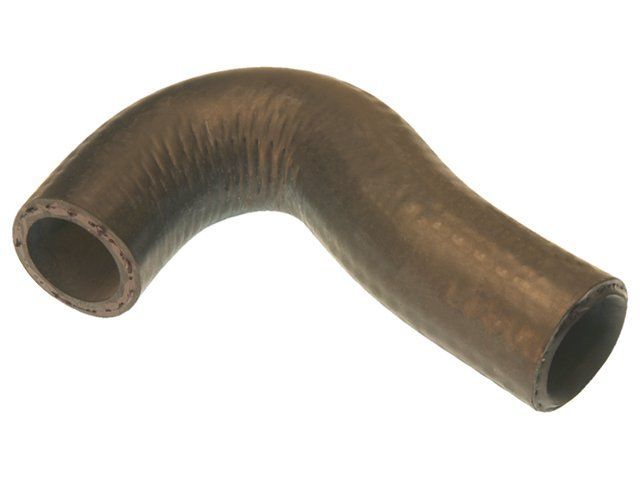

This is a molded rubber hose, typically made of EPDM rubber to resist heat and chemical degradation. It connects two points in the cooling system, often the water pump and intake manifold, to allow coolant to bypass the radiator when the thermostat is closed.
