Dodge W250 Universal Joint Replacement Guide (1981-1988)
Address driveshaft vibrations and clunks by choosing the right U-joint for your classic Dodge truck.
- Prioritize premium brands like Dana Spicer for their strength and durability, which is crucial for a heavy-duty W250.
- Choose between maintenance-free (non-greasable) U-joints for strength or greasable joints if you plan on regular maintenance.
- Address symptoms like clunking or vibration immediately to prevent a catastrophic failure that can cause extensive damage.
- Your 4x4 W250 has multiple U-joints in different locations (driveshafts, axle shafts); verify the correct part for each position before ordering.
Symptoms of a Failing Universal Joint
A worn U-joint on your W250 will give you clear warning signs. Ignoring them can lead to a complete failure, where the driveshaft can detach and cause severe damage. Be aware of the following symptoms:
- Clunking or Banging Noise: A loud "clunk" when you shift from park into drive or reverse is a classic sign of a worn U-joint with too much play. This sound is caused by the driveshaft slapping against the yokes.
- Vibration: A vibration that you can feel through the floor or seat, which often gets worse with speed, points to a failing U-joint. This is often confused with unbalanced tires, but if a tire balance doesn't fix it, the U-joint is a likely suspect.
- Squeaking or Chirping: A rhythmic squeak, especially at low speeds, is often the first sign of a U-joint that has lost its lubrication. The noise is caused by dry metal-on-metal contact within the joint's needle bearings.
Choosing the Right Aftermarket U-Joint
For a heavy-duty truck like the W250, selecting a quality aftermarket U-joint is essential for reliability. Original equipment (OEM) parts are likely discontinued or difficult to find. Aftermarket brands offer a wide range of quality and features.
Brand Quality Tiers
Based on owner experiences and mechanic recommendations, brands can be grouped into tiers:
- Premium / Heavy-Duty (Recommended): Dana Spicer is widely considered the gold standard, often matching or exceeding original factory quality. They are known for strength and durability, making them a top choice for a working truck. Yukon Gear is another premium brand focused on high-strength components for demanding use.
- Quality Aftermarket: Moog and SKF are well-regarded aftermarket brands that offer reliable performance. Moog offers different lines, including their durable "Super Strength" series. SKF is also a trusted name in bearings and driveline components.
- Standard / Economy: Brands like GMB and Crown Automotive offer a more budget-friendly option. While functional, some owners report shorter lifespans with economy brands, especially under heavy use. For a truck that tows or goes off-road, investing in a premium brand is recommended.
Greasable vs. Non-Greasable U-Joints
You will need to choose between two main types of U-joints:

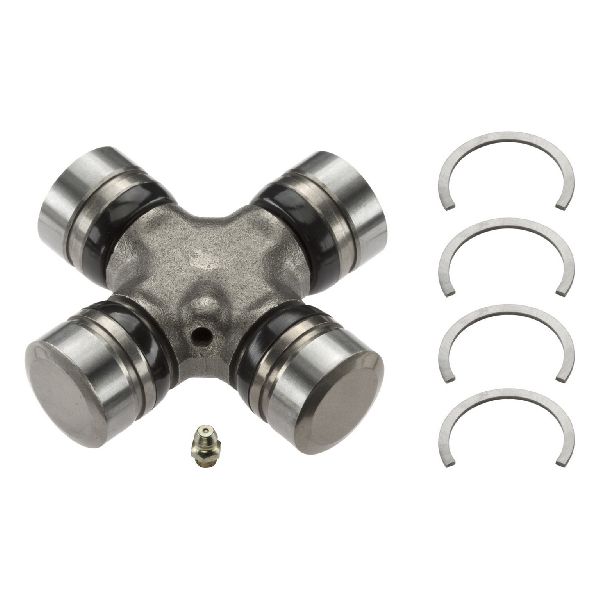

- Greasable U-Joints: These have a zerk fitting that allows you to add fresh grease periodically. If you are diligent with maintenance (greasing every 5,000 miles or so), they can last a very long time by flushing out contaminants. Many Moog and some Spicer joints are greasable.
- Non-Greasable (Sealed) U-Joints: These are sealed from the factory and require no maintenance. Many experts prefer them for strength, as the cross is solid without a channel drilled for grease, which can be a weak point. Spicer's "Life Series" are high-quality, non-greasable joints. If you prefer a "fit-it-and-forget-it" approach, this is the best choice.
Common Ordering Mistakes
Your 1981-1988 W250 has multiple U-joints that may not all be the same size. There are joints for the rear driveshaft (at the axle and transfer case), the front driveshaft, and the front axle shafts (steering joints). Always verify the exact position you are replacing before ordering. Some models, particularly long-bed club cabs, may have a two-piece rear driveshaft with a center support bearing and three U-joints on that shaft alone. It is best to replace U-joints in pairs or all at once on a single driveshaft to ensure proper balance and longevity.
Frequently Asked Questions (FAQ)
How many U-joints does my 1981-1988 W250 have?
Most W250s have at least five: two on the rear driveshaft, one on the front driveshaft, and two in the front axle shafts (one per side for steering). Some configurations, especially long-wheelbase models, have a two-piece rear driveshaft with an additional U-joint and a center support bearing. Always inspect your specific truck to confirm.
Should I get greasable or non-greasable U-joints?
This depends on your preference. Non-greasable joints are slightly stronger and maintenance-free, making them a popular choice for reliability. Greasable joints can last longer if you commit to a regular maintenance schedule, which is beneficial if you frequently drive in mud or water.
Can I replace just one bad U-joint?
Yes, but it's not recommended. If one U-joint has failed, the others on the same driveshaft are likely worn as well. Replacing all U-joints on a shaft at the same time is the best practice. It also ensures the driveshaft remains balanced, preventing future vibrations.
What happens if a U-joint fails completely?
A complete failure is dangerous and destructive. The U-joint will break apart, allowing the driveshaft to detach from the vehicle. This can cause you to lose control of the truck and can severely damage the transmission, transfer case, exhaust, and underside of the vehicle. Address symptoms early to prevent this.
Technical Specifications
Common U-joint series for this truck include 1344, 1410, and 1480 sizes. The front axle shafts on the Dana 60 axle typically use a Spicer SPL55-3X or equivalent. It is critical to measure your existing U-joint caps and yokes or verify part numbers to ensure you order the correct replacement, as different driveline combinations were used.
