Chevrolet Camaro Back Up Light Switch Guide (1981-1989)
Fix your reverse lights for good by choosing the right switch for your third-generation Camaro.
- The most critical step is to order the correct switch for your transmission type (manual or automatic), as they are different parts.
- Symptoms are straightforward: lights don't work, flicker, or stay on constantly.
- For automatic models, the switch is part of the neutral safety switch on the shifter and may require adjustment.
- ACDelco and Standard Ignition are highly recommended brands for reliability and proper fit.
Is Your Back Up Light Switch Failing?
A bad back up light switch is more than an inconvenience; it's a safety hazard that can also get you a ticket. The most obvious sign of failure is when your reverse lights don't turn on at all when you shift into reverse. You might also see them flicker or work only some of the time. In rare cases, the switch can fail in the 'on' position, causing your reverse lights to stay lit constantly, which can confuse other drivers and quickly burn out your bulbs.
Common Failure Symptoms
- Reverse lights do not turn on
- Reverse lights work intermittently or flicker
- Reverse lights stay on even when not in reverse
- On automatic models, a related neutral safety switch failure may prevent the engine from starting in Park or Neutral
Known Issues for 1981-1989 Camaros

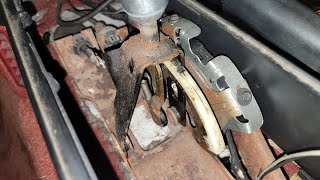

No recalls or Technical Service Bulletins (TSBs) have been issued by the NHTSA specifically for the back up light switch on the 1981-1989 Chevrolet Camaro. However, owner forums frequently discuss issues related to switch adjustment and location. For automatic transmission cars, the switch is adjustable. If it's not 🎬 Watch: How to adjust the switch on automatic models aligned correctly with the shifter, the lights may not activate in reverse. For manual transmission cars, especially those with aftermarket Hurst shifters, a special mounting bracket may be required that differs from the factory setup.
Choosing the Right Aftermarket Switch
For a straightforward part like a back up light switch, you don't necessarily need to hunt down a rare, expensive OEM part. Aftermarket options offer good quality and value. Here’s a breakdown of the common brands available.
Brand Quality Tiers
- Tier 1: ACDelco & Standard Ignition (SMP)
ACDelco is GM's official parts brand and is considered the original equipment equivalent. Choosing ACDelco ensures an exact fit and function as the factory intended. Standard Ignition is a top-tier aftermarket manufacturer with a strong reputation for quality and reliability, often matching or exceeding OEM specifications. For an electrical part like this, either of these brands is a dependable choice. - Tier 2: Replacement / Store Brands
This category includes various value-focused brands. While they are the most affordable option, fit and finish can sometimes be inconsistent compared to Tier 1 brands. For a simple switch, they can be a decent budget-friendly solution, but be prepared to verify fitment upon installation.
Pro Tip: Manual vs. Automatic
The single most common ordering mistake is buying the wrong switch for your transmission type. The switch for an automatic transmission is a completely different part from the one for a manual transmission. Always verify the part is correct for your specific transmission before purchasing.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $26.16 - $40.77 |
| New OEM (ACDelco) | $45 - $80 |
| Shop Labor | $90 - $150 |
Frequently Asked Questions (FAQ)
Can I replace the back up light switch myself?

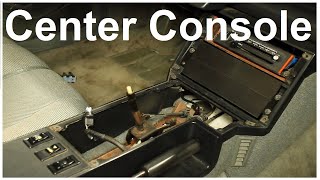

Yes, this is a DIY-friendly job for most home mechanics. For manual cars, you will need to safely lift and support the vehicle to access the switch on the transmission. For automatic cars, the job is done from inside the car and requires removing the center console trim 🎬 See this walkthrough on removing your center console to access the shifter assembly. Basic hand tools are all that's required.
Where is the back up light switch located on my Camaro?
If you have an automatic transmission, the switch is located on the side of the gear shifter assembly, inside the center console. If you have a manual transmission, the switch is screwed into the side of the 🎬 Watch: How to remove and test the switch transmission housing, accessible from under the car.
Do I need to drain the transmission fluid to change the switch?
No. On both manual and automatic models for this generation, the switch is located high enough that you do not need to drain any fluid to replace it.
My reverse lights still don't work after replacing the switch. What's next?
First, check the bulbs and the fuse for the circuit (it often shares a fuse with the turn signals). Next, check the bulb sockets for rust or corrosion. Finally, inspect the wiring and connectors between the switch and the tail lights for any breaks or corrosion, as these can be common failure points on older vehicles.
Helpful Videos
Technical Specifications
Location varies by transmission type. Automatic transmission switches are located at the shifter base in the console. Manual transmission switches are located on the transmission case.
