Solving Stalling and No-Start Issues in Your 1981-1990 Lincoln Town Car Ignition Module
If your classic Town Car dies when it gets hot and restarts after cooling down, your ignition module is the likely culprit.
- The most common symptom of failure is the engine stalling when hot and restarting only after it cools down.
- This is a very easy DIY repair; the module is on the driver's side fender and takes minutes to replace.
- Always apply the included dielectric grease to the back of the new module to prevent overheating.
- Aftermarket modules from brands like Delphi and Standard Ignition are reliable replacements.
Is Your 1981-1990 Town Car Stalling When Hot?
A common and frustrating problem for owners of the 1981-1990 Lincoln Town Car is sudden engine stalling. The car runs fine when it's cold, but after driving for 20-30 minutes, the engine cuts out for no reason. After letting it sit and cool down for a while, it starts right back up. This is a classic sign of a failing Ignition Control Module (ICM).
Heat is the Enemy
The ignition module on these cars is very sensitive to heat. Over decades of engine bay heat cycles, the electronics inside the module begin to break down. When hot, they stop working, cutting spark to the engine. When they cool off, the connection is restored, and the car runs again until it gets too hot. Eventually, the module will fail completely, leaving you with a no-spark, no-start condition.
Choosing the Right Aftermarket Ignition Module
For a vehicle of this age, new OEM Motorcraft parts are often unavailable or extremely difficult to find. Fortunately, modern aftermarket parts are well-made and often more reliable than the originals, which were known to have issues. The two main tiers you'll find are Standard Replacement and Premium brands.
- Standard Ignition (Standard Motor Products): A well-known and trusted name in aftermarket parts. Their standard replacement modules are a reliable and cost-effective choice that meets original specifications. They are a solid option for daily driving and general repairs.
- Delphi: Often considered a premium aftermarket brand, Delphi parts are known for quality engineering and durability. A Delphi module may offer enhanced construction and heat resistance, providing extra peace of mind for owners in hot climates.
Pro Tip: Because a failed module can leave you stranded, many long-time owners of these cars buy two. They install one and keep the other in the glove box with a small wrench. The replacement is so simple it can be done on the side of the road in minutes.
Cost of Replacing Your Ignition Control Module
This is a very DIY-friendly repair. The module is typically located on the driver's side inner fender, held on by two screws. Because of this easy access, shop labor costs are minimal. Below are the typical cost ranges.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Delphi, Standard) | $94.22 - $110.55 |
| Shop Labor | $55 - $85 |
| Total Professional Replacement | $150 - $195 |
Frequently Asked Questions
Do I need a special tool to replace the ignition module?
No, you typically only need a basic socket or wrench to remove the two mounting screws. A special tool was required for some Ford TFI modules that were mounted on the distributor, but the Dura-Spark module on your Town Car is mounted remotely on the fender well, making it very easy to access.
My new module came with a packet of white grease. Do I need to use it?
Yes, absolutely. That is dielectric grease or heat sink compound. You must apply a thin layer to the metal back of the new module before you install it. This grease helps transfer heat away from the module to the car's body, which is critical for preventing another heat-related failure.
Could my problem be something other than the ignition module?
Yes. While the symptoms are classic for a module failure, similar issues can be caused by a failing ignition coil or the pickup coil inside the distributor. However, the ignition control module is the most common point of failure for heat-related stalling on these Ford ignition systems.
Are there any recalls on the 1981-1990 Town Car ignition module?
No, there are no active or historical NHTSA recalls for the ignition control module on this vehicle. Any issues are considered general maintenance and repair for a vehicle of this age.

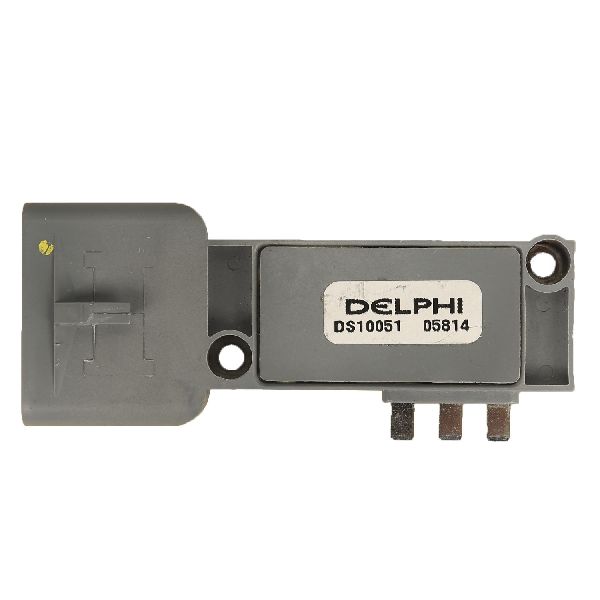

Technical Specifications
OEM Part Numbers: E43Z12A297A
Dura-Spark II Ignition System Control Module
