Dodge B250 Ignition Coil Guide for 1981-1994 Models
Keep your classic Dodge van running smoothly by understanding how to spot and replace a failing ignition coil.
- Ignition coil failure is common on these vans and symptoms include misfiring, stalling, and no-start conditions.
- Replacement is a simple DIY job that takes less than 30 minutes with basic tools.
- Standard aftermarket brands like Delphi, NGK, or Spectra are excellent choices; a performance coil is not necessary for a stock engine.
- If a new coil fails quickly, investigate underlying issues like heat exposure from an exhaust leak or other failing ignition components.
Is Your B250 Van Acting Up? It Could Be the Ignition Coil.
If you own a classic 1981-1994 Dodge B250, you know it's a durable workhorse. But even the toughest vans have parts that wear out. The ignition coil is a common failure point that can cause a lot of headaches. A bad coil can leave you stranded, but the good news is that it's usually an easy and affordable part to replace yourself.
Symptoms of a Failing Ignition Coil
A failing ignition coil can cause a range of problems, from annoying to serious. Here’s what to watch for:
- Engine Misfires: The engine may sputter, shake, or run roughly, especially under load or when accelerating. This happens because one or more cylinders aren't getting the spark they need.
- Difficulty Starting: The engine may crank but refuse to start, or take a long time to turn over. This is common when the coil fails completely.
- Stalling: The van might die unexpectedly while driving or idling, and may not restart until it cools down. This is a classic sign of a coil overheating and failing intermittently.
- Poor Performance and Fuel Economy: You might notice your van feels sluggish, lacks power when going uphill, and gets worse gas mileage than usual.
- No Spark: If you test for spark at the spark plugs and find none, the ignition coil is a primary suspect, though other parts like the ASD relay or distributor pickup could also be at fault.
Heat is the Enemy
On these Dodge vans, ignition coils can be sensitive to heat. Some owners report repeated coil failures, especially when towing or in hot weather. This can sometimes be caused by other failing components that put extra strain on the coil, or even an exhaust leak blowing hot gas onto the coil. If you replace a coil and it fails again quickly, it's worth investigating for an underlying issue.
Choosing the Right Aftermarket Ignition Coil
Since original Mopar parts for this van are scarce, you'll be looking at aftermarket options. Quality can vary, but even budget-friendly brands are often sufficient for this simple ignition system. Here’s a breakdown of your choices:
Brand Tiers
- Performance Brands (MSD, Accel): Brands like MSD and Accel offer high-output coils designed to produce a stronger spark. Some owners report better throttle response and pickup 🎬 Watch a test drive of an MSD coil upgrade here. with these coils. They are a good choice if you want a modest performance boost or have a modified engine, but they are not essential for a stock daily driver.
- OE-Quality Brands (Delphi, NGK, Standard Ignition Blue Streak, Spectra Premium): These brands are known for making parts that meet or exceed original equipment specifications. They are a reliable, safe bet for a long-lasting repair without paying for a performance name.
- Value Brands (DriveWire, Global Parts, Walker, Duralast): These brands offer a cost-effective solution that gets the job done. For a vehicle of this age, a standard replacement coil from a value brand is often a perfectly acceptable and budget-conscious choice.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New Aftermarket | $20 - $106 | Wide range from value brands to performance coils. |
| New OEM (Mopar) | N/A | Generally unavailable or very difficult to find new. |
| Shop Labor | $50 - $100 | Typically less than one hour of labor. |
Pro Tip: Easy DIY Replacement
Replacing the ignition coil on a B250 is a great job for a beginner. It's usually mounted in an easy-to-reach spot on the engine or firewall, held on by just a couple of bolts. You'll need basic hand tools. Just disconnect the battery, unplug the electrical connector and coil wire, unbolt the old coil, and install the new one in reverse order.

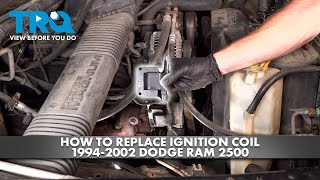

🎬 See how to replace the ignition coil on a Dodge.Frequently Asked Questions (FAQ)
Where is the ignition coil located on my Dodge B250?
The ignition coil is typically a canister-shaped part mounted either on the intake manifold or the passenger side of the engine. You'll see a thick wire (the coil wire) running from its center tower to the distributor cap. On some models, you may need to remove the interior engine cover (doghouse) to access it easily.
Do I need a high-performance coil like an MSD?
For a stock engine in good condition, a standard replacement coil from a reputable brand like Delphi or NGK is perfectly adequate. A performance coil from a brand like MSD might offer a slightly stronger spark, which some drivers feel improves throttle response, but it's not a necessary upgrade for most owners.
I replaced the coil, but my van still won't start. What else could it be?
If a new coil doesn't fix a no-spark issue, other common culprits in the ignition system include a failed ballast resistor (on older models), a bad pickup coil inside the distributor, a faulty ignition control module, or a failed Auto Shutdown (ASD) relay. Check for power going to the coil's positive terminal with the key on. If there's no power, the problem is likely upstream, possibly with the ASD relay.
Are there any recalls for the ignition coil on my van?
No, searches of NHTSA records and other data sources show no specific recalls or widespread technical service bulletins (TSBs) for ignition coil failure on the 1981-1994 Dodge B250. Failures are typically due to age and heat cycles, which is normal for a vehicle of this vintage.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4176009 4797293
The 1981-1994 Dodge B250 uses a single, external, canister-style ignition coil. It is a 12-volt, oil-filled coil with two screw-type terminals for the primary circuit and a central tower for the high-voltage secondary output to the distributor.
