Choosing the Right Spark Plugs for Your 1981-1996 Jaguar XJ12
Keep your V12 engine running smoothly with the correct set of new aftermarket spark plugs.
- The spark plug gap is critical; most XJ12 H.E. models require a 0.025" gap, which must be set manually.
- NGK is the most highly recommended aftermarket brand by experienced V12 owners.
- Replacement is a very difficult, multi-hour job due to poor access in the crowded engine bay.
- Use the correct plug type (taper seal for H.E., washer seal for pre-H.E.) to avoid sealing issues.
Symptoms of Failing Spark Plugs in a Jaguar XJ12

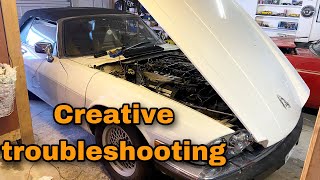

When your spark plugs are wearing out, your Jaguar's V12 engine will let you know. One of the most common signs is a persistent engine misfire, which you might feel as a rough idle or hesitation when you accelerate. You may also notice the engine backfiring, a decrease in fuel economy, or difficulty starting the car. Since the V12 is known for its smoothness, any new roughness or vibration at idle 🎬 See how one mechanic solved a strange V12 running issue. is a good reason to inspect the plugs.
Choosing the Right Aftermarket Spark Plugs
For the Jaguar V12 engine, the choice of spark plug is important for long-term performance. While several brands are available, owner experiences and technical bulletins point to specific types that work best.
Historically, Champion was a common original equipment (OEM) plug, but many owners and even Jaguar itself later recommended NGK plugs for their quality and reliability. A Technical Service Bulletin (TSB) from Jaguar revised the spark plug specifications for V12 engines to use plugs that burn off deposits more effectively during normal driving.
Aftermarket Brand Tiers for Jaguar XJ12
| Tier | Brands | Quality & Notes |
|---|---|---|
| Tier 1 (Recommended) | NGK, Champion | NGK is highly recommended by V12 owners for consistent performance. The NGK BPR6ES is a frequently cited compatible plug. Champion, the original plug in many cases, is also a solid choice, though some long-time owners feel NGK has surpassed them in quality over the years. Ensure you get the correct part number for your specific year (e.g., pre-H.E. vs H.E. engine). |
| Tier 2 (Standard) | Denso, Bosch, Autolite | These are reputable brands that offer compatible spark plugs for the XJ12. They can be a good value, but it is critical to cross-reference the part number to ensure it matches the heat range and specifications required by Jaguar. The V12 can be sensitive to variations. |
| Tier 3 (Economy) | Motorcraft, Skyward | While these plugs will function, they are generally considered basic replacements. For a high-performance and notoriously particular engine like the Jaguar V12, investing in a higher-tier plug is often worth the small extra cost to avoid potential running issues. |
A Note on Spark Plug Gap
The spark plug gap is critical on the V12 engine. For many H.E. (High Efficiency) models, the recommended gap is a very narrow 0.025 inches. Most plugs come pre-gapped to a wider setting (like 0.035 inches), so you MUST check and adjust the gap on all 12 plugs before installation. Using the wrong gap can stress the ignition system.
Known Issues, Recalls, and Bulletins
No recalls have been issued by the National Highway Traffic Safety Administration (NHTSA) specifically for spark plugs on the 1981-1996 Jaguar XJ12. However, Jaguar did release Technical Service Bulletins (TSBs) like 12-55 and 05.2-04, which updated the recommended spark plugs for V12 engines to a specification that better resists fouling and deposit build-up. This reinforces the importance of using the correct, modern-equivalent plug.
Pro Tip: Installation is a Major Job
Replacing the spark plugs on the Jaguar V12 is known to be a difficult and time-consuming job, often called a "bear" by mechanics. The engine bay is very crowded, and accessing the plugs, especially those at the front and rear, often requires removing other components like the A/C compressor and throttle pedestal. It is crucial to clean the area around the old plugs thoroughly with a vacuum before removal to prevent debris from falling into the engine cylinders.
🎬 Watch a walkthrough of the spark plug and distributor cap service.Frequently Asked Questions (FAQ)
How many spark plugs does a Jaguar XJ12 need?
The Jaguar XJ12 has a V12 engine, which means it requires twelve (12) spark plugs.
What is the best spark plug for a Jaguar V12?
Based on extensive owner feedback and forum discussions, NGK spark plugs are the most highly recommended brand for the Jaguar V12. The NGK BPR6ES is a commonly used part number that is equivalent to the original Champion N9Y. Always verify the correct part for your specific model year and engine type (pre-H.E. or H.E.).
Can I change the spark plugs myself?
While it is possible for a DIY mechanic to change the plugs, it is considered a very challenging job. Access is extremely limited, and it often requires moving other engine components. If you are not an experienced mechanic, it is recommended to have this job done by a professional who is familiar with these cars. The job can take several hours.

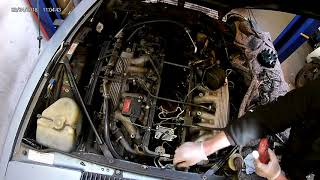

🎬 Watch this step-by-step tutorial for a complete V12 plug replacement.What's the difference between pre-H.E. and H.E. engine spark plugs?
The earlier pre-H.E. V12 engines used washer-seal plugs, while the later H.E. (High Efficiency) engines use taper-seal plugs. It is critical to use the correct type for your engine to ensure a proper seal in the cylinder head. Using the wrong type can lead to poor performance and potential engine damage.
Helpful Videos
Technical Specifications
OEM Part Numbers: NAB3850DA JLM204
Required Quantity: 12 Common OEM Plug: Champion N9Y Recommended Aftermarket Plug: NGK BPR6ES Recommended Gap (H.E. models): 0.025 inches Thread Size: 14mm Seat Style: Tapered (H.E.) or Gasket (pre-H.E.)
