Ford F-150 Brake Light Switch Guide for 1981-1998 Models
Learn to diagnose, choose, and replace the brake light switch on your classic Ford F-150.
- A faulty brake light switch is a serious safety issue; replace it immediately if your brake lights are not working correctly.
- Symptoms include brake lights staying on, not working at all, or cruise control issues.
- For this F-150 generation, a quality aftermarket switch from a brand like Standard Ignition is a reliable and budget-friendly option.
- Replacement is a simple DIY job for most owners, requiring basic tools and about 30 minutes.
Is Your F-150's Brake Light Switch Failing?
A faulty brake light switch is a common issue on many vehicles, including the 1981-1998 Ford F-150. Because it's a mechanical part with internal electrical contacts, it can wear out over time. Symptoms can range from a minor annoyance to a serious safety hazard. Recognizing the signs early can save you from a potential accident or a traffic ticket.
Top 5 Symptoms of a Bad Brake Light Switch
- Brake Lights Don't Work: The most obvious and dangerous symptom. If the switch fails in the open position, it won't complete the circuit, and your brake lights will not illuminate at all when you press the pedal.
- Brake Lights Stay On: If the switch gets stuck in the closed position, it will continuously send power to the brake lights, even when your foot is off the pedal. This can drain your battery and confuse drivers behind you.
- Intermittent Brake Lights: Worn internal contacts can cause the brake lights to flicker or work only when the pedal is pressed hard. This is often an early sign of failure.
- Cruise Control Problems: If your truck has cruise control, a bad brake light switch can prevent it from engaging or cause it to shut off unexpectedly.
- ABS Warning Light: On some later models in this year range with anti-lock brakes, a faulty switch can send incorrect signals to the brake control module, potentially triggering the ABS warning light on your dashboard.
A Note on Recalls
While Ford has issued recalls for brake light switch issues on other F-150 model years (like 2009 and 2014), extensive searches of the NHTSA database did not show any specific, large-scale recalls for the brake light switch itself on the 1981-1998 model range. Always verify recalls for your specific vehicle using its VIN on the NHTSA website.
Choosing Your Aftermarket Replacement
For a straightforward part like the brake light switch on an older F-150, an aftermarket replacement offers excellent value. The technology is simple, and quality aftermarket brands produce reliable switches that meet or exceed original specifications.
OEM vs. Aftermarket: An OEM (Original Equipment Manufacturer) switch from Ford will work perfectly but will cost significantly more. For a vehicle of this age, a quality aftermarket part from a reputable brand like Standard Ignition is a smart and cost-effective choice. Standard Ignition is a well-known brand in the aftermarket industry, and user reviews for their switches are generally positive, often citing good fit and function.
Pro Tip: Check the Bushings
🎬 Watch a mechanic explain the switch and its components.When replacing the switch, inspect the small plastic bushings on the brake pedal pin. If these bushings are worn, cracked, or missing, it can cause a sloppy pedal feel and prevent the new switch from activating correctly, leading you to believe the new part is faulty. It's a good idea to replace them at the same time.
Cost of Replacing a Brake Light Switch (1981-1998 F-150)
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch (DIY) | $31 - $50 |
| Shop Labor | $50 - $100 |
| Total Professional Installation | $81 - $150 |
Note: Costs are estimates and can vary based on your location and specific repair shop rates. The aftermarket part cost is based on the provided price range.
Frequently Asked Questions
How difficult is it to replace the F-150 brake light switch?
The replacement is generally easy and can be done by a DIYer with basic tools. The main challenge is the location; you'll need to work in the driver's side footwell, looking up at the brake pedal arm. The switch is typically held in place by a clip and a connector. The process involves disconnecting the electrical connector, removing a cotter pin, and sliding the switch off the pedal assembly. Installation is the reverse of removal.
Can a bad brake light switch drain my truck's battery?
Yes. If the switch fails in the 'on' or closed position, it will keep the brake lights illuminated even when the truck is turned off. This will drain the battery, often overnight.
How do I test my current brake light switch?
The simplest test is to have a friend stand behind the truck while you press the brake pedal. If the lights don't come on, or only come on with a lot of pedal pressure, the switch is likely bad. For a more technical test, you can use a multimeter to check for continuity. 🎬 Watch this video to see how to test your switch. When the switch's plunger is depressed (pedal not pressed), there should be no continuity. When the plunger is out (pedal pressed), there should be continuity.
My brake lights don't work, but I replaced the switch and bulbs. What else could it be?
If a new switch and bulbs don't solve the problem, the next step is to check the fuse for the brake light circuit in your truck's fuse box. If the fuse is good, you may have a wiring issue, such as a bad ground or a break in the wire between the switch and the lights.

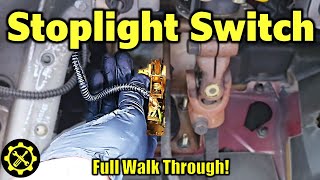

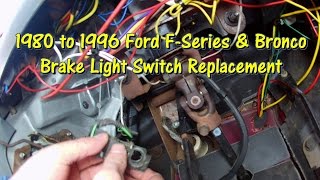

Helpful Videos
Technical Specifications
OEM Part Numbers: E7TZ13480A E9TZ13480A
The switch is a 2-terminal, normally open, plunger-style switch that mounts to the brake pedal support bracket.
