A Guide to Replacing Fuel Injectors on the 1982-1986 GMC P3500 6.2L Diesel
Keep your workhorse running strong by understanding how to choose the right fuel injectors for your 6.2L diesel engine.
- This guide is ONLY for the 6.2L V8 Diesel engine, not the gasoline engine options.
- You MUST verify if your engine needs long or short body injectors and coarse or fine threads before ordering.
- Always replace all eight injectors as a set and install a new fuel filter at the same time.
- Both Delphi and Standard Motor Products (SMP) are reliable aftermarket brands for this part.
Symptoms of Failing 6.2L Diesel Fuel Injectors
The mechanical injectors on the 6.2L diesel are known for being durable, but they do wear out. When they start to fail, they can disrupt the engine's performance in several ways. Recognizing the signs early can prevent further issues down the road.
- Excessive Smoke: White or black smoke from the exhaust is a classic sign. White smoke can indicate unburnt fuel from a leaking injector, while black smoke can mean over-fueling from an injector with a bad spray pattern.
- Rough Idle or Stalling: An engine that shakes, vibrates, or stalls at idle may have one or more injectors that are clogged or not spraying fuel evenly.
- Loss of Power: If your P3500 feels sluggish and struggles to get up to speed, it could be due to poor fuel atomization from worn injectors.
- Hard Starting: Difficulty starting the engine, especially when cold, can be caused by injectors that are leaking pressure overnight.
- Increased Fuel Consumption: If you're stopping for fuel more often, failing injectors could be wasting fuel by delivering it inefficiently.
Critical Ordering Information: Check Your Injector Type
Before ordering, you must identify what injectors are in your engine. The 6.2L diesel used different injectors during this period. You will need to check for:
- Body Length: There are "short body" and "long body" (83.7mm) injectors.
- Thread Type: Early models (especially 1982-1983) often used coarse threads, while later models used fine threads.
The only way to be 100% sure is to remove one of your current injectors and inspect it before placing an order. 🎬 Watch this walkthrough on assembling and installing 6.2L injectors. Ordering the wrong type will result in a part that does not fit.
Choosing an Aftermarket Fuel Injector: Brand Tiers
For a vehicle of this age, aftermarket parts are the most common and sensible choice. The quality of aftermarket diesel injectors can vary, but reputable brands offer excellent performance. 🎬 Watch: Why buying cheap, off-brand injectors can cause major headaches. OEM parts from a GM dealer, if available, would be prohibitively expensive.
Tier 1: Delphi
Delphi is a well-known original equipment manufacturer for many diesel systems. Their aftermarket parts are built to high standards, focusing on robust design and reliability, which is ideal for diesel applications. Choosing a new Delphi injector means you are getting a part that is very close, if not identical, to the original factory specifications.
Tier 2: Standard Motor Products (Standard Ignition)
Standard Motor Products (SMP) is a trusted aftermarket brand that offers a wide range of components. For certain parts, SMP has been known to source injectors directly from OE manufacturers like Delphi and re-box them. This means you can often get an OE-quality part in an SMP box, sometimes at a more competitive price. They are a solid choice for this application.
Pro Tip: Replace as a Set
It is highly recommended to replace all eight fuel injectors at the same time. If one injector has failed, the others are likely not far behind. Replacing them all at once ensures balanced engine performance, consistent spray patterns, and saves you from having to do the job again in the near future.
Estimated Costs for Fuel Injector Replacement
| Part | Estimated Cost (Set of 8) |
|---|---|
| New Aftermarket Injectors (Delphi, SMP) | $450 - $700 |
| Remanufactured Injectors | $400 - $600 |
| Shop Labor | $400 - $700 |
Frequently Asked Questions (FAQ)
Do I need to replace anything else with my injectors?
Yes. It is critical to install a new fuel filter whenever you replace injectors to prevent contaminants from damaging the new parts. It is also a good idea to buy a fuel injector return line kit, which includes the small hoses and clamps that connect the top of the injectors, as these often become brittle and crack.

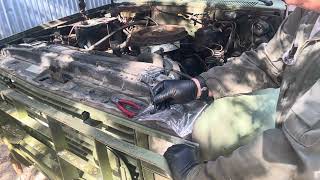

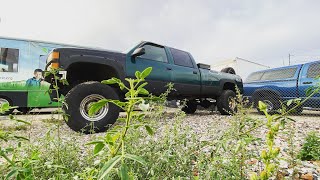

🎬 See how to replace your rubber fuel return lines.Are there any recalls for the 1982-1986 GMC P3500 fuel injectors?
No, there are no active or past recalls from the NHTSA specifically for fuel injectors on the 1982-1986 GMC P3500.
What is the difference between a new and a remanufactured injector?
A new injector is built from all-new components. A remanufactured injector is a used OEM core that has been completely disassembled, cleaned, inspected, and rebuilt with new internal wear parts like nozzles and springs. For this vehicle, both new aftermarket and quality remanufactured injectors are good options.
My P3500 has a gas engine. Does this guide apply?
No. This guide is specific to the 6.2L V8 diesel engine. The gasoline engines available in this truck (4.8L, 5.7L, 7.4L) used either a carburetor or a throttle body injection (TBI) system, which are completely different from the diesel injectors discussed here.
Helpful Videos
Technical Specifications
Engine: 6.2L V8 Diesel. Type: Mechanical Fuel Injector. Variations: Long Body (83.7mm) vs. Short Body; Coarse Thread vs. Fine Thread.
