Distributor Cap Replacement Guide for the 1982-1987 Chevrolet Cavalier
Solve misfires and starting problems on your first-generation Cavalier by understanding and replacing a worn distributor cap.
- A bad distributor cap is a common cause of misfires, rough idle, and starting issues on the 1982-1987 Cavalier.
- Always replace the distributor rotor at the same time as the cap for a complete ignition tune-up.
- High-quality aftermarket brands like ACDelco, Delphi, and Standard Ignition are excellent choices for this vehicle.
- Carefully transfer spark plug wires one at a time to the new cap to maintain the correct firing order (1-3-4-2 for the 4-cylinder).
Is Your Cavalier Running Rough? It Could Be the Distributor Cap.
If your 1982-1987 Chevrolet Cavalier is experiencing engine misfires, has trouble starting, or idles poorly, a worn or faulty distributor cap is a common culprit. This part is a normal wear-and-tear item that directs spark to each cylinder. Over time, the metal terminals inside can corrode, and the cap itself can develop cracks, allowing moisture and dirt to interfere with the electrical connection. This leads to a weak or inconsistent spark, causing the performance issues you might be feeling.
🎬 Watch: A quick guide to common bad distributor cap symptoms.Choosing the Right Aftermarket Distributor Cap
For a vehicle like the first-generation Cavalier, you don't need to hunt down a rare, expensive original GM part. Today's high-quality aftermarket brands offer excellent performance and reliability, often exceeding the quality of the original parts from the 1980s. Here's how the available brands generally stack up:

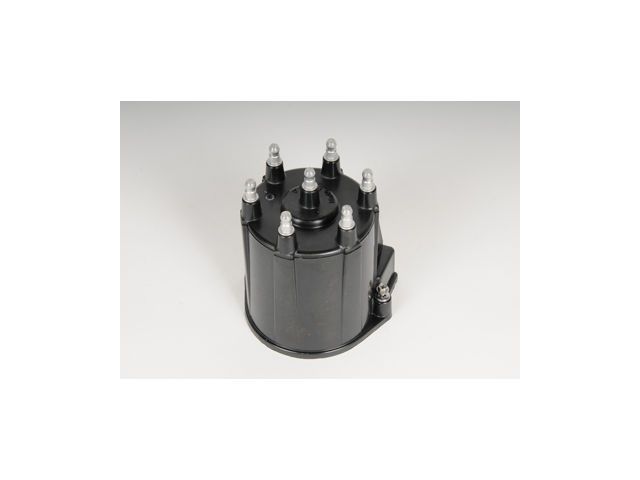

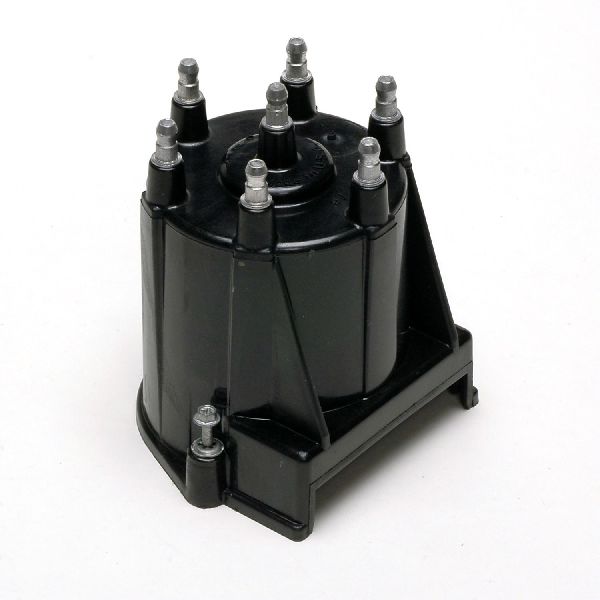

- Tier 1 (OEM or Equivalent): ACDelco and Delphi. ACDelco was the original equipment manufacturer for General Motors, so their parts are considered a direct replacement. Delphi was a spin-off of GM's parts division and continues to produce high-quality, OE-spec components. You can't go wrong with either of these brands for a reliable, long-lasting fix.
- Tier 2 (Premium Aftermarket): Standard Ignition (Standard Motor Products). Often sold under the 'Blue Streak' line, Standard Ignition parts are highly regarded by professional mechanics for their quality and durability. They often feature improvements over the original designs, such as brass terminals which offer better conductivity and corrosion resistance compared to the original aluminum ones.

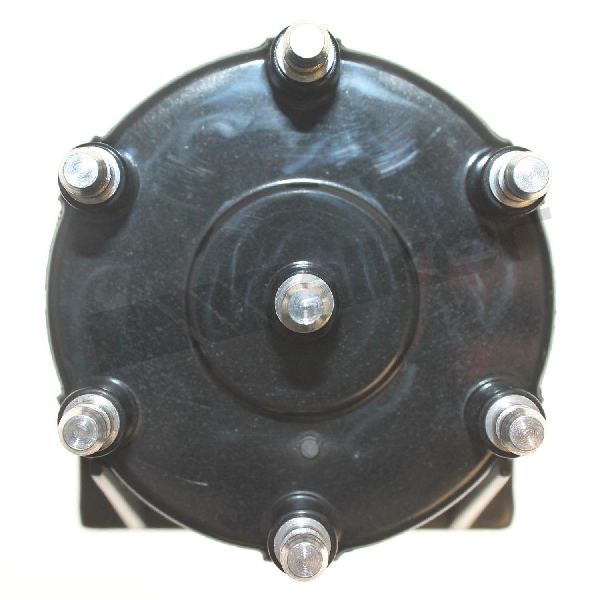

- Tier 3 (Standard Aftermarket): Walker Products. Walker is a known brand in the aftermarket, providing functional and affordable replacement parts that meet basic requirements. For a daily driver on a budget, this is a viable option.
Known Issues, Recalls, and Service Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls or technical service bulletins (TSBs) for the distributor cap on the 1982-1987 Chevrolet Cavalier. The major GM ignition-related recalls from the 2010s concerned the ignition switch on much newer vehicles and do not apply to this generation of Cavalier.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (This Part) | $14.17 - $36.63 |
| New OEM (GM) | $40 - $60+ (If found as New Old Stock) |
| Used OEM | Not Recommended |
| Shop Labor | $75 - $150 |
Frequently Asked Questions (FAQ)
Do I need special tools to replace the distributor cap?
No, you typically only need basic hand tools like a screwdriver or a small socket set to remove the two screws or clips holding the cap in place.
What are the metal points inside the cap called?
They are called terminals or contacts. There is a central carbon or metal terminal for the incoming voltage from the coil, and individual terminals around the edge for each spark plug wire.
Should I use dielectric grease?
Yes, applying a small amount of dielectric grease to the terminals where the spark plug wires connect can help prevent corrosion and makes future removal easier. It does not conduct electricity but protects the connection from moisture.
How can I be sure my old cap is bad?
Look for obvious signs of wear. Check for white, chalky corrosion or greenish buildup on the metal terminals. Inspect the inside and outside of the cap for cracks, carbon tracks (thin black lines), or moisture. If any of these are present, the cap should be replaced.
Helpful Videos
Technical Specifications
OEM Part Numbers: D339X 1103567
Fits 1.8L & 2.0L 4-Cylinder and 2.8L V6 engines. Cap is typically secured by two screws. Terminal material may be aluminum or brass, with brass offering superior corrosion resistance.
