A Guide to Replacing the Engine Timing Set on a 1982-1987 Chevrolet S10
Understand the common timing set issues in first-generation S10s and how to choose the right replacement parts.
- The original timing gears on 2.8L V6 (nylon) and 2.5L I4 (fiber) engines are a common failure point; always upgrade to an all-metal aftermarket set.
- A complete failure will leave you stranded, so address symptoms like rattling noises or rough running immediately.
- While you are replacing the timing set, it is smart and cost-effective to also replace the water pump, timing cover gasket, and front crank seal.
- No recalls have been issued for this part, as failure is due to age and material degradation.
Is Your S10's Timing Set Failing?
The original timing sets on 1982-1987 Chevrolet S10s have well-known weaknesses. The 2.8L V6 often came from the factory with a camshaft gear that had nylon-coated teeth. Similarly, the 2.5L 'Iron Duke' engine used a fiber gear. 🎬 Watch: Replacing the fiber timing gear on an Iron Duke Over decades, heat and age make these plastic or fiber teeth brittle. They can crack, break off, and fall into the oil pan. This can cause the timing chain to slip, jump time, or break entirely, shutting down the engine.

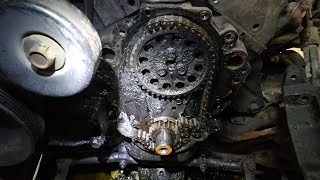

🎬 Watch: A real-world 2.8L V6 timing chain failure diagnosisCommon Symptoms of a Bad Timing Set:
🎬 See the top 5 symptoms of a bad timing chain- Engine won't start: If the chain breaks or the gears are stripped, the camshaft won't turn. This means the distributor won't spin to create spark, and the valves won't operate.
- Rattling noise from the front of the engine: A loose timing chain can slap against the inside of the timing cover, creating a distinct rattle, especially when the engine is idling or during a cold start.
- Engine misfires or runs rough: If the chain has stretched or jumped a tooth on the gears, the valve timing will be incorrect. This can lead to poor engine performance, reduced power, and a rough idle.
- Metal shavings in the engine oil: When the gears or chain wear out, small pieces of metal or plastic can end up in the oil. These may look like metallic glitter in the oil when you drain it for an oil change.
Choosing the Right Aftermarket Timing Set
Since original equipment (OEM) parts are largely unavailable and used parts are not recommended, a new aftermarket timing set is the best choice. The key is to select a kit that upgrades the original weak points.
Aftermarket Brand Quality
For the 1982-1987 S10, brands like Cloyes, Melling, and INA offer quality replacement options. There is no single 'best' brand, as all have a long history of making reliable parts. Your choice may come down to price and availability.
- Good: A standard replacement kit from a reputable brand like INA or Cloyes will serve a daily-driven S10 well. These kits meet or exceed original specifications and, most importantly, typically include all-metal gears.
- Better: Brands like Melling are highly regarded in the engine-building community for quality and durability. A Melling kit may offer peace of mind for a truck that works hard or for an owner who wants top-tier components.
- Best (Performance): For high-performance or racing applications, some brands offer 'double roller' timing chains. These are stronger than the stock-style 'silent' chain but may not be necessary for a stock or lightly modified engine.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $40 - $138 |
| Shop Labor | $400 - $700 |
| Total Professional Replacement | $440 - $838 |
Costs are estimates and can vary based on your location and the specific parts chosen.
Known Issues, Recalls, and Bulletins
Searches of the National Highway Traffic Safety Administration (NHTSA) database show no safety recalls or technical service bulletins (TSBs) specifically for the engine timing set on the 1982-1987 Chevrolet S10. The primary known issue is the wear and failure of the original nylon and fiber timing gears, which is addressed by installing a modern all-metal aftermarket set.
Frequently Asked Questions (FAQ)
Is the 2.8L V6 an interference engine?
The GM 2.8L V6 is generally considered a non-interference engine. This means that if the timing chain breaks, the pistons will likely not collide with the valves. However, the engine will immediately stop running, and there is still a small risk of damage, so it should be treated as a critical failure.
What other parts should I replace with the timing set?
Since the job requires removing the timing cover, it is highly recommended to also replace the timing cover gasket set, the front crankshaft oil seal, and the water pump. These parts are all accessible during the job and replacing them now can prevent future leaks and save you from having to do the same labor twice.
Can I replace the timing set myself?
This is a moderately difficult job for a DIY mechanic. It requires draining the coolant and oil, removing many components from the front of the engine, and using a special tool like a harmonic balancer puller. If you are not comfortable with this level of work, it is best to have it done by a professional mechanic.
How do I know if I need a timing set for a V6 or a 4-cylinder?
You must order the correct timing set for your specific engine. The parts for the 2.8L V6, 2.5L I4, and other less common engines are not interchangeable. Always verify your truck's engine size before ordering parts.
Helpful Videos
![Top 5 Symptoms of a BAD TIMING CHAIN [What to Look Out For]](https://img.youtube.com/vi/7beQX8cE-18/mqdefault.jpg)
Technical Specifications
Varies by engine. The 2.8L V6 uses a timing chain with a camshaft sprocket and a crankshaft sprocket. The 2.5L I4 uses a camshaft gear and a crankshaft gear with no chain.
