Chevrolet S10 Starter Motor Guide for 1982-1987 Models
Everything you need to know before replacing the starter on your first-generation S10 truck.
- Properly shimming the new starter is critical for this S10 generation to prevent noise and damage.
- Ensure you buy the correct starter for your specific engine (4-cylinder vs. V6), as they are different.
- For V6 models or trucks with starting issues when hot, a high-torque starter from a brand like Powermaster is a worthwhile upgrade.
- Before replacing the starter, always confirm your battery is good and all cable connections are clean and tight.
Is Your S10 Starter Failing? Common Symptoms
A failing starter rarely dies without warning. For the 1982-1987 S10, these symptoms are the most common signs that your starter is on its way out.
- Single, Loud Click, Then Nothing: This is the classic sign of a bad starter solenoid or a dead spot in the starter motor. The click is the solenoid trying to engage, but the motor itself fails to turn. 🎬 Watch: How to test the solenoid when you hear clicking This can also be caused by low battery voltage or poor connections.
- Slow or Labored Cranking: If the engine turns over much slower than usual, it can indicate a worn-out starter motor that is drawing too much power or struggling to turn the engine.
- Grinding Noise: A harsh grinding sound during or after starting can mean the starter gear is not meshing properly with the flywheel, or it's not retracting after the engine has started. This could be due to worn gear teeth or improper alignment.
- No Sound at All: If you turn the key and get nothing—no click, no crank—the problem could be further up the line, like the ignition switch, neutral safety switch, or wiring. However, it can also mean a completely failed starter motor or solenoid.
- Heat Soak Issues: A common problem on older GM vehicles, especially V6 models, is heat soak. The starter works fine when cold, but after a long drive, the hot engine and exhaust heat up the starter, and it refuses to crank until it cools down.
Critical Installation Note: Starter Shims
One of the most important and often overlooked aspects of replacing a starter on a 1980s GM vehicle like the S10 is the use of starter shims. These are thin metal strips placed between the starter and the engine block to achieve the correct gear mesh. Failure to use the original shims or to shim a new starter correctly can result in grinding noises and will quickly destroy the new starter gear and/or the engine's flywheel. Always check for shims when removing the old starter and be prepared to adjust them for the new one.

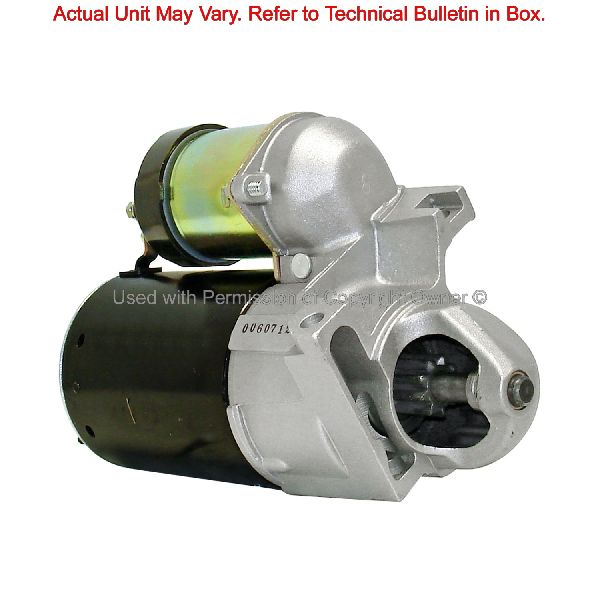

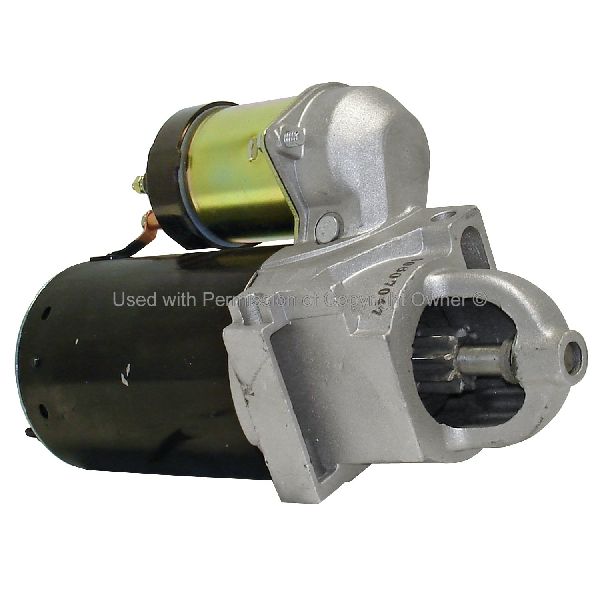

Choosing the Right Aftermarket Starter for Your S10
For a vehicle like the 1982-1987 S10, you have several good aftermarket options that can be grouped into different tiers of quality and performance.
Brand Tiers
- Standard Replacement (MPA): Motor Parts of America (MPA) produces a line of starters marketed as Quality-Built. These are designed to meet or exceed original factory specifications and are a solid, reliable choice for a daily driver with a stock engine. They are a cost-effective solution to get your truck back on the road.
- OEM-Equivalent (ACDelco): ACDelco is GM's original parts brand, and their Professional line of aftermarket parts is a popular choice. For a vehicle of this age, you are getting a new aftermarket part, not one made by the original factory supplier. They are a trusted name and a safe bet for proper fit and function, though quality can sometimes be inconsistent like any mass-market part.
- High-Performance / Problem-Solver (Powermaster): Powermaster specializes in high-performance starters. These are an excellent upgrade if you have a modified engine with higher compression, or if you are experiencing heat soak issues with your V6. Powermaster starters are often smaller, lighter, provide more clearance for exhaust headers, and deliver more cranking torque. Many are also 'clockable,' allowing you to rotate the body 🎬 See how to shim a Powermaster starter for perfect clearance for optimal clearance.
| Brand Tier | Typical Price Range | Best For |
|---|---|---|
| Standard (MPA) | $39 - $90 | Stock S10, budget-conscious repairs |
| OEM-Equivalent (ACDelco) | $65 - $150 | Owners wanting a trusted, factory-affiliated brand |
| High-Performance (Powermaster) | $180 - $321 | Modified engines, V6 heat soak, long-term durability |
Frequently Asked Questions (FAQ)
Do I really need to use shims?
Yes. Proper shimming is critical on these trucks. The goal is to have a small amount of clearance between the starter gear and the flywheel teeth when engaged. A common method is to use a standard paperclip; 🎬 Watch this video to see the paperclip shimming method in action the wire should fit snugly between the teeth. Not shimming correctly is the number one cause of new starter failure and grinding noises.
Do I need a high-torque starter for my S10?
For a stock 4-cylinder or 2.8L V6, a standard starter is usually sufficient. However, if you have modified your engine (higher compression, etc.) or experience heat soak where the starter won't work when hot, a high-torque starter like one from Powermaster is an excellent investment.
Why does my starter just 'click' but not crank?
The click you hear is the starter solenoid activating. If the motor doesn't turn, it means there's not enough electrical power reaching it, or the motor itself has failed. Before replacing the starter, always check that your battery is fully charged and that the battery cables and connections at the battery and starter are clean and tight.
How do I know if I have a bad starter or a bad battery?
A simple test is to turn on your headlights and try to start the truck. If the headlights dim significantly or go out completely, you likely have a weak battery or a bad connection. If the headlights stay bright while you hear a click, the problem is more likely the starter itself. Most auto parts stores can load-test your battery for free to confirm its health.
Were there any recalls on the 1982-1987 S10 starter?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or technical service bulletins (TSBs) specifically related to the starter motor for this generation of Chevrolet S10.

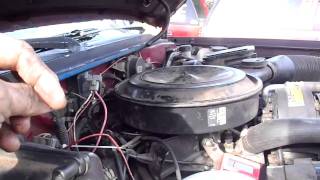

Helpful Videos
Technical Specifications
Specifications vary by engine (2.5L 4-Cyl, 2.8L V6, etc.). The most critical specification is ensuring the part is listed as a direct fit for your S10's year and engine combination. Starters for this vehicle are typically direct-drive and use a two-bolt mounting pattern, one of which is offset.
