Understanding the Electric Fuel Pump System on Your 1982-1988 BMW 528e
A complete guide to the unique dual-pump fuel system in the classic E28 528e, helping you choose the right replacement part.
- Your 1982-1988 528e has two electric fuel pumps: a transfer pump in the tank and a main pump under the car.
- Symptoms of failure often include engine sputtering, difficulty starting, and a whining noise from the rear.
- Bosch is the OEM-equivalent brand, offering the highest quality and reliability for this part.
- It is highly recommended to replace the fuel filter any time a fuel pump is replaced to protect the new part.
Symptoms of a Failing Fuel Pump
A failing fuel pump, whether it's the in-tank or main unit, will give you clear warning signs. Ignoring them can leave you stranded. Be aware of these common symptoms:
- Engine Sputtering: The car may hesitate or sputter, especially at consistent highway speeds or under acceleration. This happens when the pump can't supply enough fuel to meet the engine's demands.
- Difficulty Starting: You might experience long crank times, where the engine turns over but struggles to start. This is due to a lack of initial fuel pressure.
- Loss of Power: The car may feel sluggish and lack acceleration, particularly when going uphill or carrying a heavy load.
- Loud Whining Noise: A noticeable humming or whining sound coming from the rear of the car, near the fuel tank, is a classic sign of a struggling fuel pump motor.
- Engine Stalling: In more severe cases, the engine may stall unexpectedly while driving because the fuel supply is being interrupted. A complete pump failure will prevent the car from starting at all.
Your 528e Has Two Fuel Pumps: Which One Is Bad?
The dual-pump system can make diagnosis tricky. Here’s a general rule of thumb:
- The in-tank transfer pump is most critical when the fuel level is low. If your car starts having problems only when the tank is below half-full, the in-tank pump is a likely suspect.
- The main high-pressure pump does the heavy lifting. If you have symptoms regardless of the fuel level, the main pump may be failing. A dead main pump will prevent the car from running at all.
Pro Tip: Many experienced E28 owners recommend replacing both pumps at the same time, especially if they are original. If one has failed due to age, the other is likely not far behind. Also, always replace your fuel filter when you replace a fuel pump.
Choosing the Right Aftermarket Fuel Pump
For a classic vehicle like the E28, you have several aftermarket options. Quality can vary, so it's important to understand the differences. Bosch was the original equipment manufacturer (OEM), making it a benchmark for quality.
Tier 1: OEM-Equivalent Quality

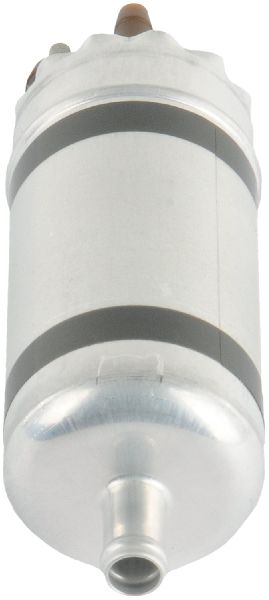

- Bosch: As the original supplier, Bosch pumps are the go-to choice for guaranteed fit, performance, and longevity. They are considered one of the best options when you want to do the job once and not worry about it.
Tier 2: Quality Aftermarket

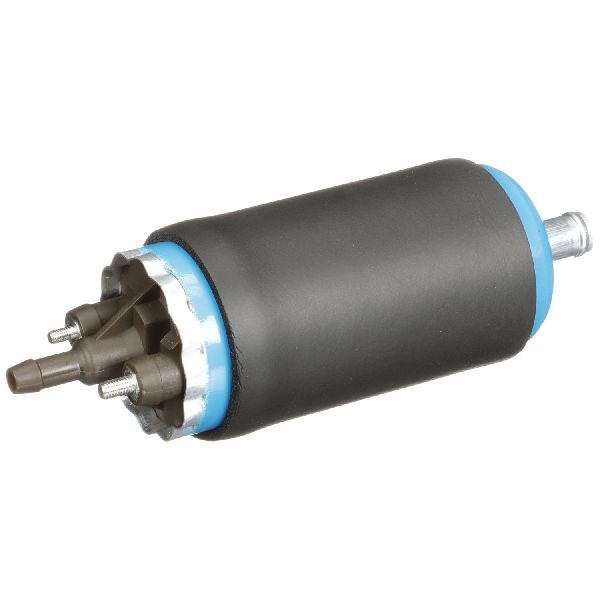

- Delphi: Delphi has a strong reputation as an OE supplier for many brands and is known for quality engineering. Most user reviews are positive, citing reliable performance that restores factory operation. It's a solid choice that balances cost and quality.
- Carter: Carter is a known aftermarket brand. While not always considered top-tier like Bosch, it is often seen as a reliable mid-grade option.
Tier 3: Economy Options
- GMB, URO Parts, US Motor Works: These brands offer a more budget-friendly price point. While they can be a cost-effective solution, especially for a car that isn't a daily driver, be aware that reviews can be mixed. Some owners use them without issue, while others report a shorter service life. These are a viable option if the initial cost is your primary concern, but there may be a trade-off in long-term durability.
A Note on Recalls and TSBs
Searches for official recalls or Technical Service Bulletins (TSBs) from BMW or the NHTSA specifically for the 1982-1988 528e fuel pump system did not yield any results. Recalls found were for much newer BMW models.
Frequently Asked Questions (FAQ)
Can I replace just one of the fuel pumps?
Yes, you can replace just the failed pump. However, because both pumps are the same age, it's often recommended to replace them as a pair to prevent having to do the job again in the near future.
How do I know if it's the in-tank or main pump?
A common symptom of a failing in-tank pump is fuel starvation (sputtering, loss of power) when the fuel tank is less than half full. If the issues persist with a full tank of gas, the main pump is more likely the culprit. A mechanic can perform a fuel pressure and volume test to be certain.
Is replacing the fuel pump a DIY job?
For a moderately skilled DIYer, yes. The in-tank pump is accessed through a panel in the trunk, and the main pump is located under the car on a bracket. Both require handling fuel and disconnecting lines, so proper safety precautions are essential. If you are not comfortable working with the fuel system, it is best to leave this job to a professional.
Do I need to replace the fuel filter at the same time?
Absolutely. It is standard practice to replace the fuel filter whenever you replace a fuel pump. A clogged filter can restrict flow and put extra strain on the new pump, causing it to fail prematurely.
Technical Specifications
OEM Part Numbers: 16141179232 16121178668 16141179798
System Type: Dual Electric Fuel Pumps (In-Tank and External). Fuel Type: Gasoline.
