Throttle Position Sensor (TPS) Guide for 1982-1990 Chevrolet S10
Fix hesitation, rough idle, and poor acceleration in your S10 by understanding and replacing your throttle position sensor.
- Only fuel-injected S10s (1985+ for 2.5L, 1986+ for 2.8L) have a TPS.
- Symptoms often include hesitation, rough idle, and poor acceleration.
- Replacement is easy, but the new sensor must be adjusted with a voltmeter for proper function.
- For best results and longevity, choose an OEM-grade brand like ACDelco or Delphi.
Is My 1982-1990 S10 Equipped With a TPS?
It's important to know that not all first-generation S10 trucks use a throttle position sensor. Early models with carburetors do not have one. The TPS was introduced with Throttle Body Injection (TBI) fuel systems. This began in 1985 for the 2.5L 4-cylinder engine and in 1986 for the 2.8L V6 engine. If your truck has TBI, it has a TPS.
Symptoms of a Failing Throttle Position Sensor
A bad TPS can cause a variety of engine performance problems that can be frustrating to diagnose. Because the sensor's signal is critical for fuel and air management, a failure can make your truck run poorly. Common signs include:
- Hesitation or Stumbling: The engine may hesitate or bog down when you press the gas pedal.
- Rough or High Idle: Your truck might idle erratically, too high, or too low.
- Poor Acceleration: The truck may feel sluggish and lack power.
- Sudden Surges or Stalling: The engine might unexpectedly surge while driving or stall when you come to a stop.
- Hard Shifting (Automatic Transmission): A bad TPS signal can cause delayed or harsh gear shifts.
- Check Engine Light: A failing TPS will often trigger the Check Engine Light and store a trouble code. Common codes for this issue on an S10 are Code 21 (high voltage) or Code 22 (low voltage).
Choosing the Right Aftermarket TPS Brand
When replacing your S10's TPS, you have several aftermarket options. While an OEM part from the dealer is no longer a practical option for a vehicle of this age, several aftermarket brands provide reliable replacements.
| Brand Tier | Brands | Quality & Performance Assessment |
|---|---|---|

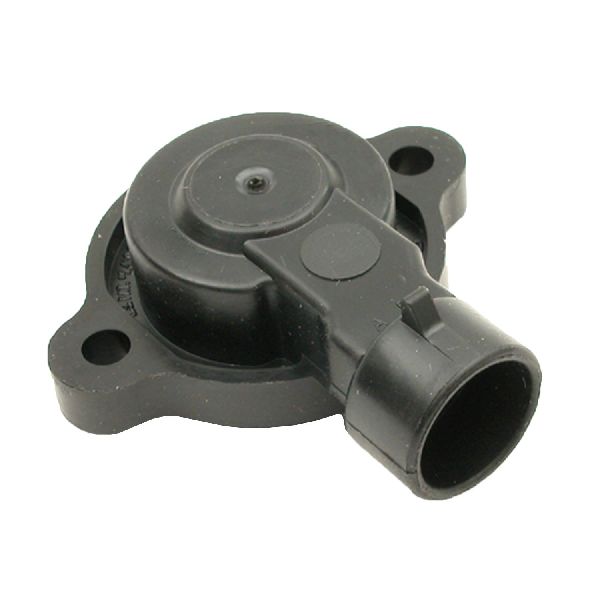

| OEM-Grade Aftermarket | ACDelco, Delphi | ACDelco was the original equipment manufacturer (OEM) for General Motors. Delphi was a spin-off of GM and also a major OEM supplier. For an S10, choosing either of these brands is as close as you can get to the original factory part. They are widely considered the most reliable choices for sensors and electronics. |
| Quality Aftermarket | Standard Ignition (SMP), NGK | Standard Motor Products (SMP) is a well-respected aftermarket brand known for producing quality electronic components that often meet or exceed OEM specifications. NGK, while famous for spark plugs, also produces reliable sensors, though some users have reported occasional idling issues with their TPS units on other vehicles. |

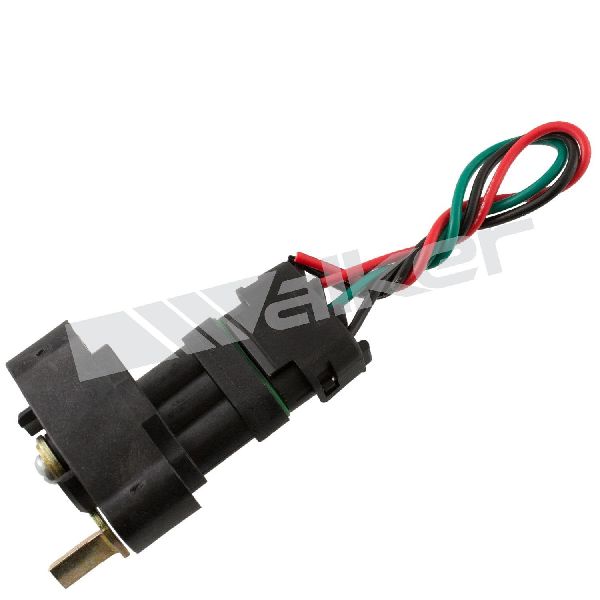

| Standard/Economy | Walker Products, True Tech, Global Parts, Motorad | These brands offer a cost-effective solution. Walker Products is a common aftermarket sensor brand. While often functional, budget-friendly sensors can sometimes have a shorter lifespan or less consistent performance compared to premium brands. They can be a good option for a quick fix or if budget is the primary concern. |
Known Issues, Recalls, and Service Bulletins
Searches for official recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) for the 1982-1990 Chevrolet S10 throttle position sensor did not yield any specific results. Any recalls or special coverage programs for GM throttle position sensors are for much newer vehicles and do not apply to this generation of S10.
Common Ordering Mistake
Ensure you are buying the correct TPS for your specific engine (2.5L or 2.8L). While they may look similar, the internal mechanisms can differ. Always verify the part fitment for your truck's year and engine size before purchasing.
Frequently Asked Questions (FAQ)
Is replacing the S10 throttle position sensor a difficult job?
No, this is a very straightforward repair for a DIY mechanic. The TPS is located on the side of the throttle body and is held on by two Torx screws. You simply disconnect the electrical connector, remove the two screws, and swap the sensor. The most time-consuming part is often removing the air cleaner assembly to get clear access.
Does a new TPS need to be adjusted?
Yes, on these TBI-equipped S10s, the TPS should be adjusted after installation. This involves using a voltmeter to set the idle voltage to a specific value, typically around 0.50 volts. This ensures the ECM receives the correct baseline reading when the throttle is closed. An improperly adjusted TPS can cause idle and performance issues even if the part is new.
Can I just clean my old TPS?
No, the throttle position sensor is a sealed electronic component and cannot be cleaned or serviced. The failure is usually internal wear on the sensor's resistive strip, creating 'dead spots' in the voltage signal. If the sensor is faulty, it must be replaced.
What happens if I don't replace a bad TPS?
Continuing to drive with a faulty TPS can lead to poor fuel economy, stalling, and unpredictable engine behavior, which can be unsafe. It puts unnecessary stress on other components and can make your truck fail an emissions test. Since the repair is simple and relatively inexpensive, it's best to address it promptly.
Technical Specifications
OEM Part Numbers: 17113578
3-pin connector, potentiometer-type sensor. Mounts to the side of the throttle body with two screws. Requires adjustment to approximately 0.5V at closed throttle.
