Electric Fuel Pump Guide for the 1982-1990 GMC S15
Keep your classic S15 running strong by understanding its fuel pump needs and choosing the right replacement part.
- Verify if your S15 has a mechanical (carbureted) or in-tank electric (fuel-injected) pump before buying.
- Spending more on a quality brand like Delphi is highly recommended by other owners to ensure reliability and avoid repeat repairs.
- Symptoms like stalling, no-start, and power loss are strong indicators of a failing pump, but always check wiring and grounds first.
- Replacing the entire fuel pump assembly is the best practice, not just the motor, to renew all related components in the tank.
Is Your S15 Electric or Mechanical?
Before buying a part, know what your truck uses. The 1982-1990 GMC S15 was built with two different types of fuel systems. Early models, typically from 1982-1984 with carburetors, used a mechanical fuel pump mounted on the engine block. Later models, especially from 1985-1990 with Throttle Body Injection (TBI) engines (like the 2.5L, 2.8L, and 4.3L), use an electric fuel pump located inside the fuel tank. This guide focuses on the in-tank electric fuel pump for these fuel-injected trucks.
Symptoms of a Failing Electric Fuel Pump
A weak or failing fuel pump can't supply the engine with enough gas. This creates noticeable problems. Look out for these common symptoms:
- Trouble Starting: The engine cranks for a long time before it starts, or it might not start at all. A weak pump struggles to build enough pressure to get the engine running.
- Engine Sputtering or Stalling: Your truck may sputter or stall, especially at higher speeds or when going up a hill. This happens because the pump can't keep up with the engine's demand for fuel.
- Loss of Power: The truck feels sluggish and doesn't accelerate like it used to.
- Loud Whining Noise: You might hear a loud, unusual humming or whining sound coming from the area of the fuel tank. This is often the sound of the electric motor inside the pump wearing out.
Pro Tip: Check Your Wiring First
Bad grounds and faulty wiring are common on these older trucks and can mimic the symptoms of a bad fuel pump. Before replacing the pump, inspect the wiring harness and the ground connection near the tank to ensure they are clean and secure. 🎬 Watch: How to diagnose a bad pump with easy tests. This could save you from replacing a perfectly good part.
Choosing the Right Aftermarket Fuel Pump
For a vehicle of this age, OEM parts from a dealer are rare. The aftermarket is your main source. However, quality varies greatly, and S15s are known to be sensitive to cheap pumps. Based on owner feedback and brand reputation, here is a breakdown of your options.
Brand Quality Tiers
- Premium / OEM-Grade (Recommended): Brands in this tier are known for reliability and are often original equipment manufacturers for GM. Forum users strongly recommend spending more for these brands to avoid doing the job twice.
- Delphi: Widely considered the best choice for GM vehicles. They are a trusted OE manufacturer and their pumps are known for durability and correct performance.
- Performance / Heavy-Duty: These brands are built for higher performance and durability, often handling modern ethanol-blended fuels better.
- Holley: A well-respected performance brand that makes durable fuel pumps suitable for stock or modified engines.
- Standard / Mid-Grade: These offer a balance of price and quality, and are a step up from basic economy parts.

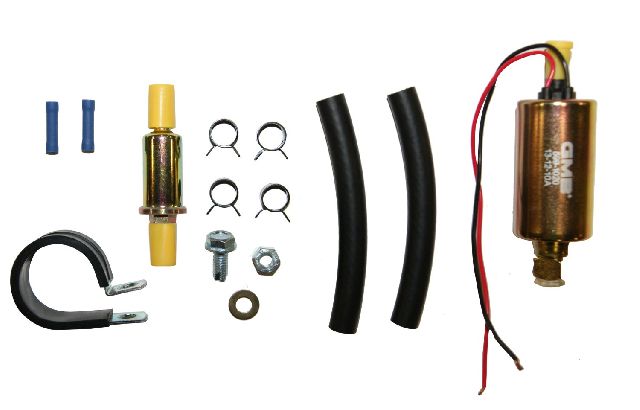

- GMB: While more famous for water pumps, GMB fuel pumps are seen as solid, dependable replacements that meet original specifications.
- Economy: These are the most budget-friendly options. While the low price is tempting, be aware that owners report very high failure rates for cheap, unproven pumps on these trucks. A failure could leave you stranded.
- AutoBest, Mr Gasket, US Motor Works: These brands fall into the economy category. They can work, but their long-term reliability is less certain compared to premium brands.
A Note on Budget Pumps
Many owners have shared experiences of replacing cheap fuel pumps multiple times in a single year. Brands like Airtex are specifically mentioned as being problematic in these trucks. While a budget pump might get your truck running, investing in a Delphi or Holley pump is more likely to provide a long-term solution.
Estimated Costs for Replacement
The cost depends on the brand you choose and whether you do the work yourself or hire a professional.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Economy) | $40 - $75 |
| New Aftermarket (Mid-Grade to Premium) | $80 - $205+ |
| Shop Labor | $250 - $450 |
Frequently Asked Questions (FAQ)
Do I have to drop the fuel tank to replace the pump?
Not necessarily. The two common methods are dropping the fuel tank or unbolting and lifting the truck bed. Lifting the bed can be easier if you have a helper, as it provides direct access to the top of the fuel tank without having to deal with old, rusty tank straps.
Should I replace the whole assembly or just the pump motor?
It is highly recommended to replace the entire fuel pump assembly (also called a module or sending unit). These assemblies include the pump, strainer, and fuel level sending unit. On an older truck, the sending unit and internal wiring are also likely worn out. Replacing the whole module ensures all components are new and can prevent future problems.
🎬 Watch a fuel pump replacement on a 1988 S15 project.Why do cheap fuel pumps fail so often on these trucks?
There are a few reasons. First, lower-quality internal components simply wear out faster. Second, the in-tank pump relies on being submerged in gasoline for cooling. If you frequently run the tank near empty, the pump can overheat and fail prematurely, and budget pumps are less tolerant of this heat. Finally, older wiring and potential voltage drops in the system can put extra strain on the pump motor.
Are there any recalls for the GMC S15 fuel pump?
There are no active recalls from the NHTSA for the original electric fuel pump on the 1982-1990 GMC S15. An old recall existed for some aftermarket mechanical pumps made by Carter, but this does not apply to the in-tank electric pumps.
Helpful Videos
![Chevy S10 Fuel Pump Replace [How To]](https://img.youtube.com/vi/7boxfSxoNac/mqdefault.jpg)
Technical Specifications
This part is for fuel-injected models, typically 1985-1990. The pump is located inside the fuel tank as part of a complete module/sending unit. It is critical to match the pump to your specific engine (2.5L, 2.8L, or 4.3L) and fuel tank size to ensure correct fitment and pressure.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
