A Guide to the Starter Motor on Your 1982-1991 Chevrolet Caprice
Don't get stranded by a no-start. Learn the signs of a failing starter and how to choose the right replacement for your classic Caprice.
- A single click is different from rapid clicking; a single click points to the starter, while rapid clicking usually means a weak battery.
- Heat soak is a common issue on these V8 engines; consider a heat shield with your new starter to prevent future problems.
- For a stock engine, a new ACDelco starter is a reliable OE-quality choice. For modified engines or to combat heat soak, a Powermaster high-torque starter is a smart upgrade.
- Access for replacement can be tight; you may need to remove the flywheel cover and maneuver around transmission lines. Always disconnect the battery first.
Is Your Caprice Starter Failing?
A starter motor problem can leave you stuck without warning. These classic full-size sedans are generally reliable, but the starter is a wear-and-tear item. Recognizing the symptoms early can save you the headache of a tow truck. Listen for these signs:
- Single, Loud Click: You turn the key, hear one solid "click," but the engine doesn't crank. This often points to a bad starter solenoid, which is part of the starter assembly.
- No Sound at All: If your dashboard lights come on but there's complete silence when you turn the key, the starter motor may have completely failed.
- Slow, Labored Cranking: If the engine turns over much slower than usual, like it's struggling, the starter motor could be worn out and drawing too much power.

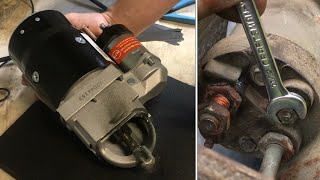

- Grinding or Whirring Noise: A harsh grinding sound can mean the starter gear isn't meshing correctly with the flywheel. A high-pitched whirring or spinning noise without the engine cranking means the starter gear is spinning but not engaging the engine at all. 🎬 Learn how starter shims ensure proper gear engagement and alignment.
- Intermittent Starting: The car starts fine one day but refuses the next. This is a classic sign of a starter on its way out.
Known Issue: Heat Soak
A very common problem on these older GM V8 engines is "heat soak." After a long drive, the heat from the engine and exhaust manifold can overwhelm the starter and its solenoid. When you try to restart the hot engine, you might get a single click or no response at all. After the car cools down for 15-30 minutes, it starts right up. This is caused by increased electrical resistance from the heat. When replacing your starter, consider adding a starter heat shield or blanket, especially if you have aftermarket headers.
Choosing the Right Aftermarket Starter
You don't need to find a rare, expensive original GM part. Today's aftermarket offers a wide range of new starters that meet or exceed original specifications. Here's a breakdown of the brands available:
- ACDelco: As the original equipment (OE) supplier for General Motors, ACDelco is a trusted name. Their new starters are manufactured to the original fit and function, making them a reliable, direct-fit choice. They are a solid option for owners who want OE quality without going to a dealership.
- Powermaster: Often seen as a performance or high-torque option, Powermaster starters are a good choice if you have a modified engine or are dealing with heat soak issues. Their gear-reduction designs provide more cranking power with less battery draw, which is helpful for engines with higher compression or for overcoming heat-related resistance.
- MPA / Remy: Remy was once part of GM's Delco-Remy division and has a long history. Now operating as MPA (Motorcar Parts of America), they offer a mix of new and remanufactured parts that are generally considered to be on par with other standard replacement brands.
- Proform: Proform is another brand often associated with performance and high-torque applications, similar to Powermaster. They are a popular choice in the hot rod and classic car community.
Aftermarket Starter Cost (Part Only)
| Quality Tier | Brands | Estimated Price |
|---|---|---|
| Standard Replacement | ACDelco, MPA | $71.91 - $180.00 |
| High-Torque / Performance | Powermaster, Proform | $180.00 - $384.18 |
Pro Tip: New vs. Remanufactured
For a vehicle of this age, a new aftermarket starter is often the best choice. New units use all-new components and are not subject to the potential wear of a reused core. While quality remanufactured starters exist, the price difference for a new unit is often minimal and provides better peace of mind.
Frequently Asked Questions (FAQ)
Do I need a special high-torque starter?
For a stock or lightly modified Caprice, a standard replacement starter from a quality brand like ACDelco is usually sufficient. However, if you have a high-compression engine, experience frequent heat soak problems, or simply want faster, more reliable cranking, a high-torque starter from a brand like Powermaster is a worthwhile upgrade.
Was there a recall on the starter for my Caprice?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls specifically for the starter motor on the 1982-1991 Chevrolet Caprice. There was a recall for some 1991-1992 models related to electrical wiring, but not the starter itself.
Is replacing the starter a DIY job?
Yes, for someone with moderate mechanical skill and the right tools, this is a manageable job. The starter is located on the passenger side of the engine 🎬 See how to access the starter on a GM 305 V8. where it meets the transmission. Access can be tight due to the exhaust and transmission lines. You will need to safely raise and support the vehicle. Always disconnect the negative battery cable before starting work.
What's the difference between a click and a rapid clicking?
A single, solid click usually means the battery has enough power, but the starter solenoid is failing to engage the motor. A rapid clicking sound is almost always a sign of a weak or dead battery that doesn't have enough power to turn the starter over. Before replacing the starter, always make sure your battery is fully charged and the terminals are clean.
Can an oil leak damage my starter?
Yes. Oil leaking from valve covers or other gaskets can drip onto the starter. This oil can soak into the electrical components, causing it to fail prematurely. If you are replacing an oil-soaked starter, it's critical to fix the oil leak as well.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10455012 10465097 19136213 10455076
12 Volt, Clockwise Rotation. Typically uses a 2-bolt mounting pattern with one long and one short bolt. May have straight-across or staggered bolt patterns depending on the specific application and flywheel size. High-torque, gear reduction starters are available as performance upgrades.
