1982-1995 Chevrolet S10 Window Crank Handle Replacement and Upgrade Guide
If your S10's window crank handle is broken or stripped, this guide will help you choose the right new part for a quick repair.
- Replacement is a simple, 15-minute DIY job that requires removing a small retaining clip.
- A special tool for the clip is helpful but not necessary; a shop rag or hook tool also works.
- Choose between a standard, budget-friendly replacement (Motormite) or a durable, custom billet aluminum upgrade (Lokar).
- Before installing, ensure the splines on the regulator shaft itself are not damaged.
Is Your Window Crank Handle Broken?
Over time, the original plastic window crank handles on the 1982-1995 Chevrolet S10 can become brittle and fail. The most common issue is the handle cracking or the internal splines stripping out. When this happens, the handle may spin freely without moving the window, or it might break off completely. This is a very common problem on older trucks due to age and frequent use.
Symptoms of a Failing Window Crank Handle
- Handle Spins Freely: The handle turns, but the window doesn't move. This usually means the splines inside the handle are stripped.
- Cracked or Broken Handle: The plastic handle itself has cracked or snapped, making it difficult or impossible to turn.
- Handle Falls Off: The retaining clip holding the handle to the regulator shaft may have come loose, or the handle's internal structure is broken. 🎬 See how to quickly remove a manual Chevy window handle.
Pro Tip: Before ordering a new handle, peek behind it with a flashlight. If the metal shaft it connects to looks rusty or has damaged splines, you may also need to inspect the window regulator. However, in most cases, just the handle needs replacement.
Choosing the Right Aftermarket Handle
For the 1st and 2nd generation S10, new original GM parts are generally no longer available. The aftermarket offers two main tiers of replacement handles: standard replacements and custom upgrades.
Standard Replacement (OE Style)
- Brand: Motormite (a Dorman brand) is a common choice for a direct, factory-style replacement.
- Quality: These parts are designed to match the fit and function of the original handle. While some users have mixed opinions on Dorman's quality for complex parts, their simple mechanical components like window cranks are generally considered an acceptable and affordable solution.
- Best For: Owners who want a quick, inexpensive fix that maintains the original look of their truck's interior.
Premium / Custom Upgrade
- Brand: Lokar is a well-regarded brand that offers high-quality, custom-looking handles.
- Quality: Lokar handles are typically machined from billet aluminum, making them significantly more durable than the original plastic handles. They are made in the USA and are considered a premium upgrade for custom trucks and restorations.
- Best For: Owners who are customizing their S10 or want a more robust, stylish handle that will likely never need to be replaced again.
Replacement Cost
Replacing a window crank handle is an inexpensive repair. The main cost is the part itself, as labor is minimal. The price depends on whether you choose a standard replacement or a custom upgrade.
| Part Type | Estimated Price Range |
|---|---|
| Aftermarket (Motormite, etc.) | $19.78 - $25.00 |
| Aftermarket Custom (Lokar) | $40.00 - $48.61+ |
How to Replace the Window Crank Handle
This is a very easy DIY job that usually takes less than 15 minutes per door.
🎬 Watch this step-by-step walkthrough of the handle replacement process.- Expose the Clip: Push the interior door panel in around the base of the window crank handle. You will see a small, U-shaped metal clip in the gap between the handle and the plastic washer.
- Remove the Clip: The trickiest part is removing this clip.
- With a Tool: A special forked "window crank removal tool" is designed to slide in and push the clip off easily.

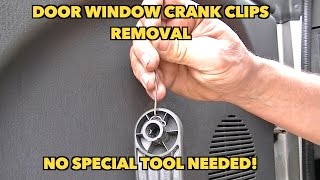

- Without a Tool: You can use a shop rag or a t-shirt. Slide the cloth behind the handle and use a back-and-forth sawing motion to snag one of the clip's ends and pull it off. You can also use two small hooks made from paper clips to pull both ends of the clip out. 🎬 Watch this clever trick to remove clips without special tools.
- Remove the Old Handle: Once the clip is off, the handle and the plastic washer behind it will slide right off the splined shaft.
- Install the New Handle: Make sure the new clip is seated inside the new handle. Align the handle onto the shaft in your desired position (e.g., pointing down when the window is closed) and simply push it on firmly. It will click into place as the clip engages the groove on the shaft.
Watch Out: The retaining clip can spring off and get lost easily. Try to control it as it comes off. New handles often come with a new clip.
Frequently Asked Questions (FAQ)
Do I need a special tool to replace my S10 window crank?
A special tool makes the job easier, but it is not required. Many people successfully remove the retaining clip using a shop rag, a hook tool, or bent paper clips to pop it off.
Are all 1982-1995 S10 window crank handles the same?
Yes, the fitment for the manual window crank handle is generally the same across the 1982-1995 model years. However, color and knob style may have varied slightly. Aftermarket parts are designed to fit this entire range.
Should I buy a plastic or metal replacement handle?
This depends on your budget and goals. A standard plastic handle (like Motormite) is an affordable, factory-style fix. A metal handle (like Lokar) is a more expensive but much more durable and stylish long-term upgrade.
My new handle is on, but the window is still hard to roll up. What's wrong?
If the window is difficult to move, the problem is likely not the handle but the window regulator mechanism inside the door. The regulator's gears may be worn, or the window tracks may need lubrication or alignment.
Helpful Videos
Technical Specifications
Attaches to window regulator via splined shaft and is secured with a C-clip.
