GMC Jimmy 1982-1995 Power Steering Pump Replacement Guide
Everything a Jimmy owner needs to know before replacing a failing power steering pump.
- Whining noises and stiff steering are the most common symptoms of failure.
- Remanufactured pumps from brands like Cardone and BBB have inconsistent quality reviews; a new aftermarket pump may be more reliable.
- You must use a power steering pulley puller/installer tool for this job.
- Thoroughly flushing the old fluid and bleeding the new system is critical for the new pump's survival.
Is Your GMC Jimmy's Power Steering Pump Failing?
The Saginaw-style power steering pumps used in these trucks are known to be tough, but they don't last forever. After decades of service, seals wear out and internal components can fail. If you're hearing new noises or steering has become a workout, your pump is likely the culprit. Ignoring these signs can lead to a complete loss of power assist or cause damage to other steering components.
Symptoms of a Bad Power Steering Pump
- Whining or Groaning Noises: A constant whine that gets louder when you turn the steering wheel is the most common sign of a failing pump. This is often caused by low fluid or air in the system, but can also indicate a worn-out pump.
- Stiff or Difficult Steering: If turning the wheel suddenly requires a lot of muscle, especially at idle or low speeds, the pump is not producing enough pressure.
- Fluid Leaks: Puddles of reddish or light brown fluid under the front of your Jimmy are a clear sign of a leak. The pump itself has several seals that can fail over time.
- Foamy or Discolored Fluid: Check your power steering fluid. If it looks foamy, it means air is getting into the system, possibly through a bad seal on the pump. If it's dark and dirty, it's contaminated and can accelerate wear.
Check for Leaks First
Before condemning the pump, clean the pump and hoses thoroughly and check for the source of any leaks. A leaking high-pressure line or return hose is a common issue and a much simpler fix than replacing the entire pump.
Choosing a New Aftermarket Pump: New vs. Remanufactured
For a vehicle from this era, finding a brand-new OEM (Original Equipment Manufacturer) pump is nearly impossible. Your choices are primarily new aftermarket, remanufactured aftermarket, or a used OEM pump from a salvage yard.
- New Aftermarket: These pumps are built from all-new components. They often cost more than remanufactured units but can offer better reliability out of the box, avoiding the quality control issues sometimes seen with rebuilt parts.

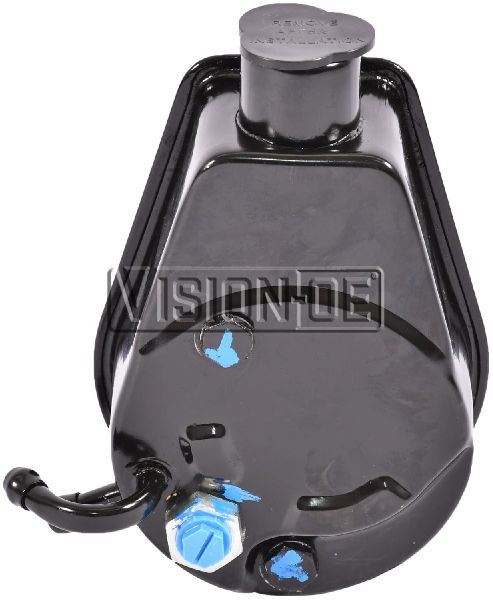

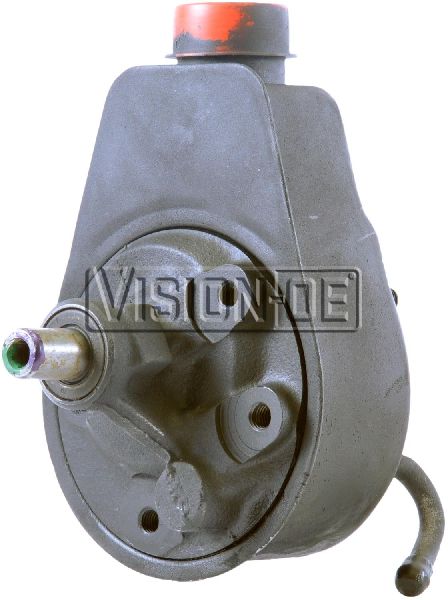

- Remanufactured Aftermarket (Cardone, BBB Industries): These are original pump cores that have been rebuilt. They are a budget-friendly option, but quality can be inconsistent. Forum discussions among mechanics and DIYers show mixed results; some units fail prematurely or leak from the start. While brands like Cardone and BBB Industries are major players, be prepared for the possibility of a warranty exchange. If you choose a remanufactured pump, it's critical to flush the entire system and install an in-line filter to protect your investment.
A Note on Brand Quality
Owner experiences with remanufactured power steering pumps are often "hit or miss." Many experienced mechanics report having to replace remanufactured pumps more than once to get a good unit. If the job is one you don't want to do twice, investing in a new aftermarket pump may be worth the extra cost for peace of mind.
Power Steering Pump Replacement Cost
The cost to replace your Jimmy's power steering pump depends on whether you do it yourself or take it to a shop. The parts themselves are affordable, but professional labor can add a significant amount to the total.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Power Steering Pump | $79.89 - $220.43 |
| Shop Labor | $200 - $300 |
| Total Professional Replacement | $280 - $520+ |
Frequently Asked Questions (FAQ)
Do I need a special tool to replace the pump?
Yes. You will need a specific power steering pump pulley puller and installer tool. The pulley is press-fit onto the pump shaft and cannot be removed with a standard gear puller, which would damage the pulley. These tool sets can be rented from most auto parts stores.
Are there any recalls for the 1982-1995 GMC Jimmy power steering pump?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no open recalls or service bulletins specifically for the hydraulic power steering pump on the 1982-1995 GMC Jimmy. Recalls you may find online are for newer GM vehicles with different, electronic power steering systems.
What kind of power steering fluid should I use?
Use a quality, conventional power steering fluid. Some older GM systems were compatible with Automatic Transmission Fluid (ATF), but a dedicated power steering fluid is the best choice for a new pump. Always flush the old, contaminated fluid completely out of the system before installing the new pump to avoid immediate damage.
Is replacing the power steering pump a difficult job?
For a DIY mechanic, this job is moderately difficult. You'll need the correct pulley tool, and access can be tight. On some 4x4 models, engine oil cooler lines can make it tricky to maneuver the pump out. The most critical part of the job is properly bleeding the air out of the system after installation to prevent noise and damage to the new pump.
Technical Specifications
This vehicle uses a Saginaw-style hydraulic power steering pump, typically with a press-fit pulley and an attached or remote reservoir depending on the specific year and model configuration.
