Toyota Pickup Alternator Guide: 1982-1995 Models
Everything you need to know before replacing the alternator on your classic Toyota Pickup.
- First, confirm if your truck has an external (pre-1984) or internal voltage regulator before buying.
- The most reliable option is a new or remanufactured OEM Denso unit; aftermarket quality is inconsistent.
- Consider having your original alternator rebuilt by a local electric shop for a high-quality, cost-effective repair.
- Ensure the new alternator's amperage and electrical plug match your vehicle's specifications.
Is Your Toyota Pickup Alternator Failing?
The charging system on these classic Toyota Pickups is simple but tough. When the alternator starts to fail, the signs are usually obvious. Don't ignore them, or you could end up needing a tow.
Common Failure Symptoms
- Dim or Flickering Lights: Your headlights and dashboard lights may look dim, flicker, or get brighter as you rev the engine. This is a classic sign the alternator isn't producing steady power.
- Battery Warning Light: A light on your dash shaped like a battery (or labeled "ALT" or "GEN") will turn on.
- Dead Battery: The alternator is supposed to recharge your battery. If the battery keeps dying, the alternator is a likely suspect. Your truck might start with a jump, but it will die again shortly after.
- Strange Noises: A whining or grinding sound from the engine bay often points to failing bearings inside the alternator.
- Burning Smell: A smell like burning rubber or hot wires can mean the alternator's belt is slipping or its internal parts are overheating.
External vs. Internal Voltage Regulator
A key detail for 1982-1995 Toyota Pickups is the voltage regulator. Early models, typically before 1984, used an external voltage regulator mounted separately on the fender wall. Later models have an internal regulator built into the alternator. Mismatched components will not work. Always confirm which system your truck has before ordering a new alternator.
Choosing a New Aftermarket Alternator
When it comes to reliability for these trucks, nothing beats an original Denso (OEM) alternator. Many owners report that aftermarket alternators are a gamble, with higher failure rates. However, a new OEM unit can be expensive. If you choose an aftermarket part, it's important to understand the different quality tiers.
Brand Quality Tiers
- Tier 1 (Best Aftermarket Option): Consider having your original Denso alternator rebuilt by a local starter and alternator shop. This often results in a higher-quality part than a new, off-the-shelf aftermarket unit because it uses the superior OEM housing and components.
- Tier 2 (Reputable Aftermarket Brands): Brands like ACDelco and Remy are established names, but quality can be inconsistent. ACDelco is an OE supplier for GM, and their parts are generally considered decent. Remy is now associated with BBB Industries, and some users have reported premature bearing failures.
- Tier 3 (Variable Quality Brands): Brands like WAI Global, MPA (Quality-Built), and BBB Industries have very mixed reviews. Some users have success, while many others report parts that are dead-on-arrival, don't meet the advertised amperage, or fail quickly. If you choose one of these, buying from a retailer with a good lifetime warranty is recommended.
Pro Tip: Many owners of these trucks who add accessories like extra lights or a winch choose to upgrade to a higher-amperage alternator. Popular swaps include units from later model Toyotas or even GM's CS130 alternator, though this requires a special mounting bracket.

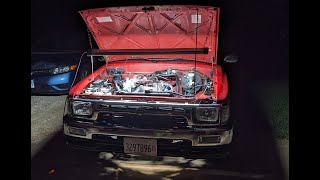

🎬 Watch a high-amperage alternator swap on a 22RE engine.Cost of Replacing a Toyota Pickup Alternator
Here is an estimated cost breakdown for replacing your alternator. Labor costs can vary significantly by location.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $58 - $254 |
| Remanufactured OEM (Denso) | $125 - $300 |
| New OEM (Denso) | $250 - $500+ |
| Shop Labor | $100 - $250 |
Frequently Asked Questions
Is replacing the alternator a DIY job?
Yes, for many owners it is. The process is straightforward: disconnect the battery, loosen the belt, unbolt the old alternator, and install the new one. However, access can be tight, and on some models you may need to remove the lower radiator hose, which requires draining and refilling the coolant. 🎬 See how to replace a 22RE alternator on a 1992 model. It is rated as a moderately difficult job.
🎬 Watch this step-by-step guide to changing your Toyota pickup alternator.What tools do I need to replace the alternator?
You will need a basic set of metric sockets and wrenches (typically 12mm and 14mm), a pry bar for tensioning the belt, and potentially a drain pan if you need to remove a coolant hose.
What amperage alternator do I need?
Stock amperage varies by year and options, from around 40 to 70 amps. It is crucial to match your original amperage or higher. Also, pay close attention to the electrical connector plug style (round vs. oval) to ensure it matches your truck's wiring harness.
Were there any recalls on the 1982-1995 Toyota Pickup alternator?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls or technical service bulletins (TSBs) related to the alternator for this vehicle generation.
Helpful Videos
Technical Specifications
Key specifications to match are the voltage regulator type (external for early models, internal for later models), amperage rating (typically 40A-70A), and the electrical connector plug style (round or oval).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
