Ford Ranger Ignition Switch: A Guide for 1983-1988 Models
If your Ranger has trouble starting, stalls unexpectedly, or has flickering dash lights, your ignition switch could be the problem.
- A failing ignition switch can cause dangerous stalling while driving.
- Symptoms like 'no-crank' or 'starts-then-dies' strongly point to the ignition switch.
- The ignition switch is a separate electrical part from the key's lock cylinder.
- For this Ranger, both Motorcraft (OEM) and Standard (Aftermarket) are solid choices.
Common Symptoms of a Failing Ignition Switch
A bad ignition switch can cause a range of frustrating electrical problems. Because the switch controls power to so many systems, symptoms can sometimes be confusing. Watch for these common signs:
🎬 Watch: A visual guide to 8 common ignition switch symptoms.- Engine Stalls While Driving: The switch can lose internal connection over bumps or during turns, cutting power to the ignition or fuel system. This is a serious safety issue.
- No-Crank, No-Start: You turn the key and nothing happens, or you only hear a single click. The switch isn't sending the signal to the starter relay.
- Starts and Immediately Stalls: The engine may fire up while the key is in the 'START' position but die as soon as you release it to the 'RUN' position. This indicates a failure in the switch to provide power in the 'RUN' circuit.
- Flickering Dash Lights & Accessories: Intermittent power from a faulty switch can cause dashboard lights, the radio, or climate controls to cut in and out.
- Key is Hard to Turn or Feels Mushy: While this can also be the lock cylinder, a worn or binding internal mechanism in the switch can make the key difficult to operate.
Choosing the Right Aftermarket Ignition Switch
For a first-generation Ranger, you have good options in the aftermarket. It's important to understand the difference between the ignition switch and the ignition lock cylinder—they are separate parts. This article is about the electronic switch, which is mounted on the steering column.
Brand Quality Comparison
| Brand | Tier | Notes |
|---|---|---|
| Motorcraft | OEM | This is the original Ford part. It offers guaranteed fit and quality, but may be more expensive or harder to find for a vintage truck. For critical electronic parts, OEM is often recommended. |
| Standard Motor Products (SMP) | Premium Aftermarket | Standard is a well-regarded aftermarket manufacturer. Their parts are known to be a reliable and cost-effective alternative to OEM, making them a popular choice for repairs on older vehicles. |
Pro Tip: Before replacing the switch, always check your battery, terminals, and starter relay first. These can cause similar no-start symptoms and are often easier to test.
🎬 Watch: How to diagnose a crank but no-start condition.Installation Overview
Replacing the ignition switch on a 1983-1988 Ranger is a DIY-friendly job for most home mechanics. The switch is typically located on the top or side of the steering column, underneath the dashboard. The general steps involve:

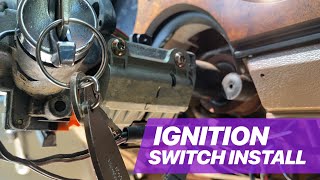

🎬 See this step-by-step walkthrough for installing a new switch.- Disconnecting the negative battery terminal.
- Removing the plastic shrouds around the steering column.
- Unplugging the wiring harness from the old switch.
- Unscrewing the two bolts holding the switch to the column. Some models may use tamper-proof Torx bolts requiring a special bit (T-25H).
- Aligning the new switch with the actuator rod from the lock cylinder and bolting it into place.
- Reconnecting the harness and battery to test operation before reassembling the column shrouds.
Important: The ignition switch is different from the ignition lock cylinder (where the key goes). If your key is physically stuck or won't turn, you may need a lock cylinder instead of, or in addition to, the switch.
Frequently Asked Questions (FAQ)
Is the ignition switch the same as the ignition lock cylinder?
No. The lock cylinder is the mechanical part you put your key into. The ignition switch is the electrical part that the lock cylinder operates via a connecting rod. They are separate parts and can be replaced independently.
Do I need special tools to replace the ignition switch?
Usually, you only need basic hand tools like a screwdriver and socket set. However, some models use tamper-proof Torx screws which require a specific bit with a hole in the center (like a T-25H) to remove.
Why would my truck start but die when I let go of the key?
This is a classic symptom of a failed ignition switch. The switch is making contact in the 'START' position but failing to maintain contact in the 'RUN' position, cutting power to the engine.
Are there any recalls on the 1983-1988 Ranger ignition switch?
Searches found a major Ford ignition switch recall in the 1990s that included 1988 models for a short-circuit risk. While this recall is very old, it highlights the long-term potential for failure in this part. No other active recalls for this specific component and year range were found.
Helpful Videos
Technical Specifications
OEM Part Numbers: E9TZ-11572-A D8BZ-11572-A
Located on the steering column, actuated by a rod connected to the ignition lock cylinder. Connects via a multi-pin wiring harness.
