Jeep J20 Engine Timing Set: A Guide for the 1983-1988 AMC V8
If your J20's engine rattles or has sloppy timing, the original timing set is likely the culprit.
- The original timing gear on the AMC 360 V8 has failure-prone nylon teeth; any aftermarket set with all-metal gears is an upgrade.
- Symptoms of failure include engine rattling, misfires, and an inability to set ignition timing.
- For long-term durability, especially on a rebuilt engine, a double roller timing set from a brand like Edelbrock or Melling is a smart investment.
- Always confirm if you have the 360 V8 or the 258 I6 engine, as they use different timing sets.
Is Your J20's Timing Chain on its Last Legs?
The original timing sets on the AMC 360 V8 engine used a camshaft gear with nylon plastic teeth. After decades of service, these nylon teeth become brittle, crack, and break off. This causes the timing chain to become very loose, which can lead to a range of problems from poor performance to the engine not starting at all. If you hear a rattling sound from the front of your engine, it's a classic sign that the timing chain is slapping against the inside of the timing cover.
Symptoms of a Failing Timing Set
- Rattling Noise: A distinct rattling or clattering sound from the front of the engine, especially at idle or on startup.
- Engine Misfires: A stretched chain can jump a tooth on the gears, throwing off the engine's timing and causing it to run rough or misfire.
- Trouble Setting Ignition Timing: If you try to set the ignition timing with a timing light and the mark seems to jump around, it's a strong indicator of a loose chain.
- Metal Shavings in Oil: When the nylon teeth break apart and the chain wears, small metal and plastic pieces can end up in the oil pan. You might notice this during an oil change.
- Engine Won't Start: In a worst-case scenario, if the chain has jumped several teeth or broken, the engine will have very low compression and will not start.
Choosing the Right Aftermarket Timing Set
For the 1983-1988 Jeep J20, you will not find a new original equipment (OEM) timing set. All available options are from aftermarket brands, which is actually a good thing. Even the most basic aftermarket replacement set is an upgrade over the original design because it uses all-metal gears, eliminating the weak nylon teeth.
Brand Quality Tiers
Not all aftermarket parts are created equal. Here’s a breakdown of the brands available for your J20, based on community feedback and reputation.
🏆 Premium / Performance Upgrade
Edelbrock & Melling (Performance Series): These brands offer high-quality, performance-oriented timing sets. Edelbrock's double roller timing sets are made from high-strength steel and are designed to reduce chain stretch and improve timing accuracy, making them a popular upgrade for rebuilt or high-performance engines. Melling is highly respected for its durable engine components, and their timing sets are considered a top-tier choice for reliability.
✅ Standard Replacement / Good Quality
Cloyes & Melling (Standard Series): Cloyes is one of the biggest names in timing components. Their standard replacement sets are a solid choice for a daily driver and a definite upgrade over stock. Melling's standard sets are also excellent and known for their quality manufacturing. While some users have reported issues with budget-level Cloyes kits in other applications, their main product lines for the AMC V8 are generally reliable.
⚠️ Economy / OEM-Style
Crown Automotive: Crown specializes in reproduction parts for Jeeps. Their timing set will get the job done and is designed to fit like the original part. While some of their parts can have mixed reviews on quality, they are a functional and affordable option for a stock repair.
Estimated Costs for Timing Set Replacement
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard) | $65 - $100 |
| New Aftermarket (Performance Double Roller) | $100 - $170 |
| Shop Labor | $500 - $900 |
| Total Professional Replacement | $565 - $1,070 |
Cost estimates are approximate and can vary based on your location and the specific repair shop.
Frequently Asked Questions
Do I need a different timing set for the 6-cylinder engine?
Yes. The 1983-1988 J20 was also available with the 258 cubic inch (4.2L) inline-6 engine. This engine requires a completely different timing set than the 360 V8. Always confirm your engine size before ordering parts.
Should I replace the timing cover and water pump at the same time?
It is highly recommended. The timing chain replacement job requires removing the water pump and timing cover. Since you have it all apart, replacing the water pump, timing cover seal, and any related gaskets is smart preventative maintenance.
What is a "double roller" chain and do I need one?
A double roller chain is a heavy-duty style of timing chain with two rows of rollers, making it stronger and more accurate than a standard "silent" or single roller chain. For a stock engine, it's a durable upgrade. For a modified or rebuilt engine, it is highly recommended.
Are there any recalls for the Jeep J20 timing chain?
No, there are no recalls or Technical Service Bulletins (TSBs) from the NHTSA related to the timing set for the 1983-1988 Jeep J20.
Technical Specifications
OEM Part Numbers: J3234433

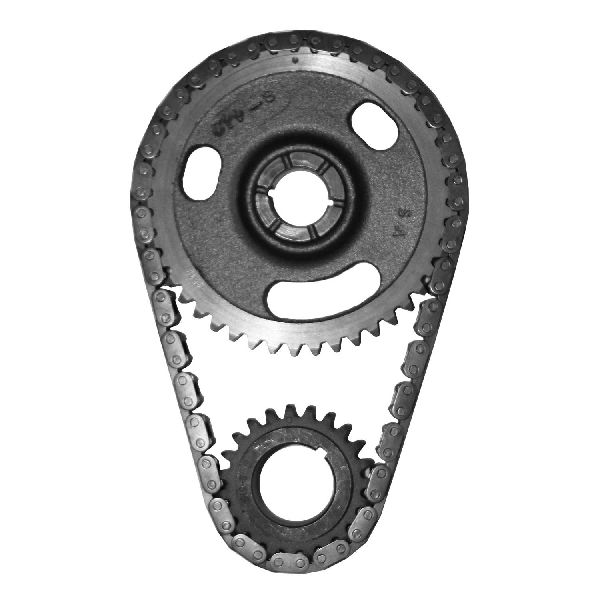

Fits 1983-1988 Jeep J20 with AMC 360 (5.9L) V8 engine. Aftermarket sets feature all-metal sprockets, replacing the OEM nylon-toothed cam gear. Standard and double roller chain types are available.
