Your 1983-1990 Volvo 760 Engine Oil Pressure Switch Explained
That flickering oil light can be scary, but the fix might be simple and cheap. Here’s what you need to know.
- A flickering or constant oil light is the main symptom, but always verify the engine's actual oil pressure with a mechanical gauge before replacing the switch.
- For this vehicle, high-quality aftermarket brands like Beck Arnley and Standard Ignition are excellent, cost-effective alternatives to OEM parts.
- Replacement is a simple DIY task that usually takes less than 30 minutes with basic tools.
- Do not drive if the oil pressure light is on, as you can't be sure if it's a faulty sensor or a critical engine lubrication failure.
Is Your Oil Pressure Light Lying to You?
The most common reason to replace the oil pressure switch on a 1983-1990 Volvo 760 is a faulty signal. After decades of heat and vibration, these switches can start to fail. You might see the oil light flicker at idle, especially when the engine is warm. Or, the light might stay on all the time, even when you know the oil level is perfect. In some cases, the switch leaks oil, or it fails completely and won't light up at all, even during the initial key-on bulb check.
Pro Tip: Check the Real Oil Pressure First!
Before you buy a new switch, it's critical to make sure you don't have a real low oil pressure problem. A faulty switch is an annoyance; actual low oil pressure will destroy your engine. First, check your oil level on the dipstick. If the level is good, the safest next step is to have a mechanic test the pressure with a mechanical gauge. This test will prove whether the problem is a bad switch or a more serious issue like a worn oil pump or clogged oil passages.
Choosing the Right Aftermarket Switch for Your 760
For a straightforward part like this on a classic Volvo, you don't necessarily need to hunt down an expensive dealer part. Several reputable aftermarket brands offer quality replacements that provide excellent value. Here’s a breakdown of the brands available:
Tier 1: High-Quality & Trusted

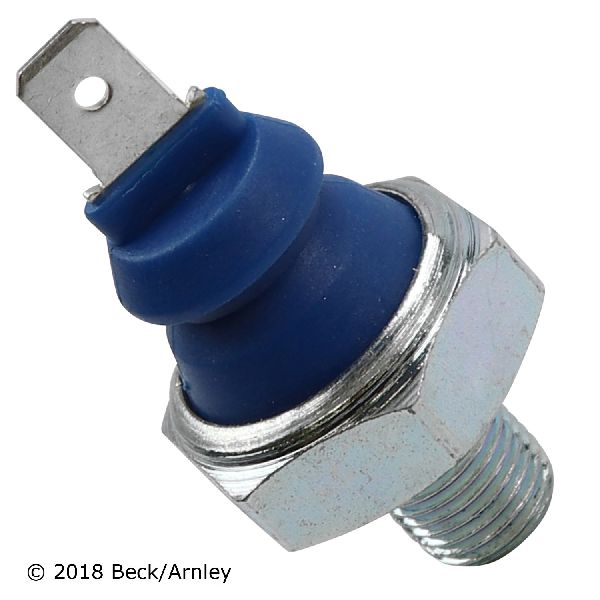

- Beck Arnley: This brand has a strong reputation for sourcing parts from original equipment (OE) manufacturers. Often, the part in a Beck Arnley box is identical to the one sold at the dealership, just at a better price. A very reliable choice for fit and function.
- Standard Ignition (SMP): A long-standing American manufacturer known for producing dependable replacement electrical parts that are trusted by professional technicians.
Tier 2: Good Value
- Facet: An Italian company that has been making sensors for many years. They are generally considered a solid, reliable option that meets or exceeds original specifications.
Tier 3: Budget-Friendly
- URO Parts: URO specializes in parts for European cars and can be very affordable. However, owner feedback on their electrical sensors is mixed, with some reporting a shorter lifespan. It's a budget option, but might not have the longevity of the higher-tier brands.
- Global Parts & Rostra Powertrain: Information and owner reviews for these specific sensors on a Volvo 760 are limited. They are likely functional, but their long-term reliability is less documented compared to other brands.
| Brand Tier | Brands | Typical Price Range | Best For |
|---|---|---|---|
| High-Quality | Beck Arnley, Standard Ignition | $25 - $55 | Peace of mind and OE-level performance. |
| Good Value | Facet | $15 - $30 | A reliable repair without the premium price. |
| Budget | URO Parts, Global Parts, Rostra | $5 - $20 | The most cost-effective solution. |
No Recalls or Bulletins Found
Searches of the National Highway Traffic Safety Administration (NHTSA) database and for Technical Service Bulletins (TSBs) did not show any specific recalls or service actions for the engine oil pressure switch on the 1983-1990 Volvo 760. Failures are typically due to the part's age and normal wear and tear.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on the Volvo 760?
The oil pressure switch is screwed into the engine block. On the Volvo 760, it is typically found on the passenger's side of the engine, near the front and close to the oil filter. It will have a single wire connected to it.
Can I replace the oil pressure switch myself?
Yes, this is a great DIY job for a beginner. The process involves disconnecting the battery, unplugging the single wire, and using a deep socket or wrench to unscrew the old switch and install the new one. Make sure the engine is cool and have a rag ready, as a small amount of oil may drip out.
What happens if I ignore a bad oil pressure switch?
The biggest danger is not knowing if a real oil pressure problem occurs. If the switch has failed and can't warn you of actual low pressure, you could continue driving and cause catastrophic engine failure. If the light is stuck on, it's a constant distraction, but the real risk is the lack of a functioning warning system.
Should I buy an OEM or aftermarket oil pressure switch?
For this part on a 760, a quality aftermarket switch from a brand like Beck Arnley or Standard Ignition is a perfectly reliable and cost-effective choice. These brands often match or even exceed original quality. Given the car's age, a Genuine Volvo part may be more expensive and offer little additional benefit.
Technical Specifications
OEM Part Numbers: 1347003 3545316 272484 3545696
This is a normally closed pressure switch designed for a warning light, not a variable sender for a gauge. It has a single electrical terminal.
