Electric Fuel Pump Guide for the 1983-1992 Isuzu Impulse
Keep your classic Impulse running strong by understanding its fuel pump needs.
- Symptoms of a failing fuel pump include engine sputtering, stalling, difficulty starting, and a whining noise from the fuel tank.
- For this vehicle, you will be replacing the pump motor itself, not the entire assembly.
- Consider higher-quality brands like Denso, Bosch, or Delphi for better reliability, as replacing the in-tank pump is a labor-intensive job.
- Before replacing the pump, check the fuel pump relay and rule out ECU issues (on 1989-92 models) as they can cause similar problems.
Signs of a Failing Fuel Pump in Your Impulse
A failing fuel pump doesn't always quit suddenly. It often gives warning signs. If you notice any of these symptoms, your fuel pump might be on its way out.
- Engine Sputtering or Stalling: If your Impulse sputters or stalls, especially at high speeds or under load, it could be struggling to get enough fuel. This can also happen when the car is hot and may not occur when it's cold.
- Difficulty Starting: A weak pump may not build enough pressure to start the engine easily. You might find yourself cranking the engine longer than usual, or it might crank but not start at all.
- Loss of Power: When accelerating, climbing a hill, or carrying a heavy load, your car needs more fuel. A weak pump can't keep up, causing a noticeable loss of power.
- Whining Noise from the Fuel Tank: A loud humming or whining sound from the rear of the car is a classic sign of a fuel pump motor working too hard or beginning to fail.
ECU Issues Can Mimic Fuel Pump Problems
For 1989-1992 models with 1.6L and 1.8L engines, be aware of a known issue with the AC Delco Engine Control Unit (ECU). Faulty ECUs can cause erratic idle, stalling, and other issues that seem like a fuel problem but are not. This was a common enough issue that owners organized to try and force a recall. If you have these symptoms, it's wise to rule out the ECU before replacing the fuel pump.
Choosing the Right Aftermarket Fuel Pump
Since your Isuzu Impulse is a classic, finding a new Original Equipment Manufacturer (OEM) fuel pump from Isuzu is highly unlikely and would be extremely expensive if found. Aftermarket parts are your most realistic and affordable option. Quality can vary, so it's important to choose wisely. The parts available are typically just the pump motor itself, not the entire hanger assembly.
Brand Quality Tiers
Based on general reputation and user feedback for Japanese and older vehicles, here's how the available brands generally stack up:

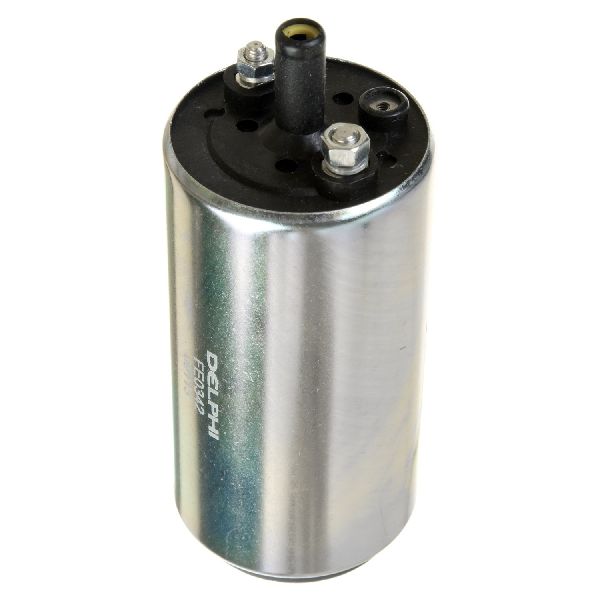

- Top Tier (OEM Supplier Quality): Brands like Denso, Bosch, and Delphi are often original equipment suppliers for many car manufacturers, including Japanese ones. Denso is particularly well-regarded for Japanese vehicles. These brands are known for reliability and are a safe bet, though they are usually the most expensive aftermarket options.
- Mid-Tier (Reliable Aftermarket): Brands like GMB and US Motor Works offer a good balance of quality and price. They are designed to meet or exceed original specifications and often use quality materials. Many users report positive experiences with these brands as a cost-effective alternative to the top-tier names. 🎬 Watch this expert review of US Motor Works fuel pumps.

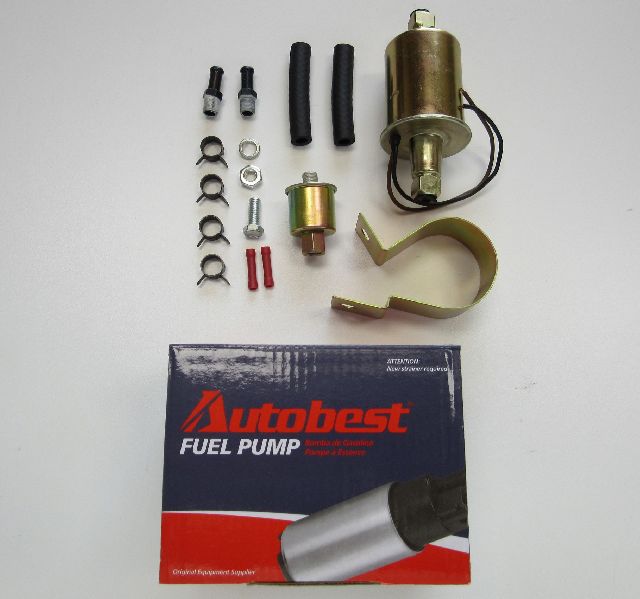

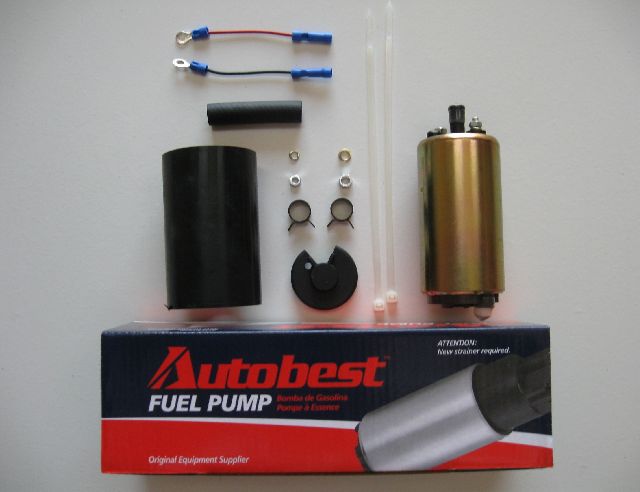

- Economy Tier (Budget-Focused): AutoBest and other lesser-known brands fall into this category. While they are the most affordable, their long-term durability can be a gamble. For a critical part like a fuel pump, which requires significant labor to replace, saving a few dollars on the part itself might not be worth the risk of having to do the job again soon.
Pro Tip: Always replace the fuel strainer (the sock-like filter attached to the bottom of the pump) when you install a new fuel pump. Most pump kits include one. Also, consider replacing the main fuel filter at the same time to ensure the whole system is clean.
Estimated Costs for Fuel Pump Replacement
The cost can vary depending on the brand you choose and whether you do the work yourself or hire a professional mechanic.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Fuel Pump | $38.23 - $174.66 |
| Shop Labor | $250 - $450 |
| Total Professional Installation | $288 - $625 |
Frequently Asked Questions
Where is the fuel pump located on the Isuzu Impulse?
The electric fuel pump is located inside the fuel tank. To access it, the fuel tank must be dropped from the vehicle. 🎬 See how to perform an Isuzu fuel pump replacement. Some owners of similar Isuzu models have opted to cut an access panel in the floor above the tank, but this is not a standard procedure and requires permanent modification to the car's body.
Do I need to replace the whole assembly or just the pump?
For the 1983-1992 Impulse, you will typically find only the fuel pump motor available for sale. You will need to remove the entire fuel pump hanger assembly from the tank and then replace the old motor on the assembly with the new one.
What about the fuel pump relay?
The fuel pump relay is an electrical switch that powers the pump. If your pump isn't turning on at all (you don't hear it prime when you turn the key), the relay could be the problem. It's a much cheaper and easier part to replace than the pump, so it's worth checking first. The relay is often located in a fuse/relay box in the engine bay or under the dashboard.
Are there any recalls for the Isuzu Impulse fuel pump?
A search of the National Highway Traffic Safety Administration (NHTSA) database did not show any specific recalls for the electric fuel pump on the 1983-1992 Isuzu Impulse. There was a notable owner-led effort regarding faulty ECUs on 1989-93 models which can cause similar symptoms to a bad fuel pump.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8970653702 8970653701 8970191861 8970191860 8944739501
The electric fuel pump is located in the fuel tank. Most aftermarket options are for the pump motor only, which fits into the existing hanger assembly. The system is designed for fuel-injected engines, requiring constant pressure.
