Ford Ranger Door Hinge Guide: 1983-1993 First Generation
Fix your sagging or hard-to-close door with the right new aftermarket hinge.
- The most common issue is a sagging door caused by worn pins and bushings, not a broken hinge.
- Check for wear by lifting the open door; if it has play, the pins need replacing.
- An aftermarket pin and bushing kit is a much cheaper and more common repair than replacing the entire hinge.
- Replacing the full hinge is a two-person job that requires removing the door and careful alignment.
Is Your Ranger's Door Sagging? Signs of a Worn Hinge
The door hinges on the first-generation Ford Ranger are tough, but they don't last forever. The driver's side door hinge typically wears out first due to more frequent use. The most common failure isn't the metal hinge itself, but the small pin and bushings inside it. When these parts wear, the door will start to sag.
You can check for wear easily. With the door open about halfway, grab the end and try to lift it up and down. If you feel significant play or see the hinge moving at the pin, the pins and bushings are worn.
- Door is hard to close or requires slamming.
- You have to lift the door to get it to latch properly.
- Popping or creaking noises when opening or closing the door.
- Increased wind noise because the door doesn't seal correctly.
- The gap between the door and the truck body is uneven.
- The door doesn't stay open on its own (this is often caused by a failed spring mechanism in the lower hinge).
Choosing the Right Aftermarket Part: Full Hinge vs. Pin Kit
For this repair, you have two main options: replacing the entire hinge assembly or just rebuilding it with a pin and bushing kit. For most Ranger owners, the pin and bushing kit is the right choice. 🎬 Watch this step-by-step guide on replacing Ranger pins and bushings. It's cheaper and addresses the most common point of failure. You would typically only replace the entire hinge if the metal itself is cracked, bent, or severely rusted.
Aftermarket Brand Options
When shopping for new aftermarket hinges or pin kits, you will likely encounter the following brands:

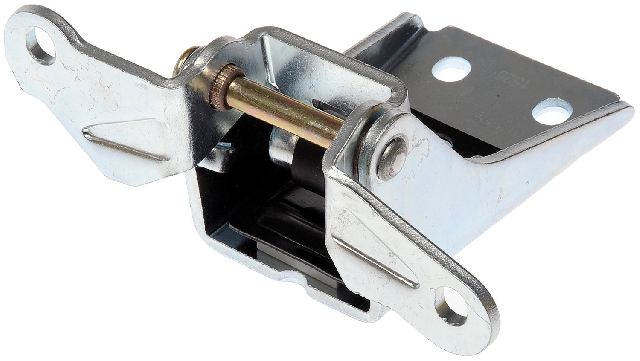

- Dorman: Dorman is a very common aftermarket brand that produces a wide range of parts, including hinge pin kits and complete hinge assemblies for the Ford Ranger. Their quality is generally considered acceptable for simple mechanical parts like these, and they often serve as a standard replacement part.

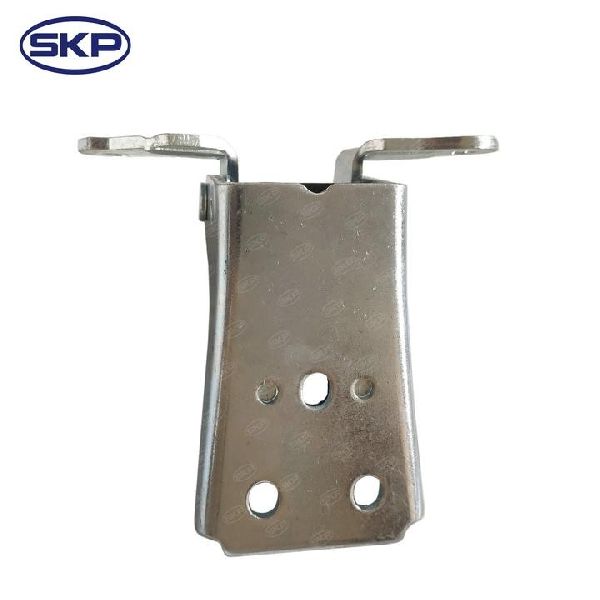

- Skyward: Skyward is another available brand. Specific user reviews for this brand on Ford Rangers are not as common, suggesting it may be a more budget-focused or private-label option.
For a part like a door hinge, where fitment is critical for alignment, sticking with a known brand like Dorman is often a safe bet. However, both options provide a cost-effective alternative to sourcing a new old stock (NOS) OEM part, which can be difficult and expensive.
Estimated Part Costs
| Part Type | Price Range |
|---|---|
| New Aftermarket Hinge Assembly | $39.39 - $101.95 |
| Aftermarket Pin & Bushing Kit | $8.00 - $30.00 |
Pro Tip: Mark Everything Before Removal
Before you unbolt the old hinge, use a marker to trace its outline on the door and the A-pillar. This will give you a reference point for installing the new hinge and will make alignment much easier. Getting the door perfectly aligned is the most challenging part of this job.
🎬 See how to fix a sagging door and restore alignment.Frequently Asked Questions
Do I need to replace the whole hinge or just the pin and bushings?
For over 90% of cases, you only need to replace the pin and bushings. This kit fixes the sag and play in the door. You should only replace the entire hinge assembly if the metal is physically cracked, bent from an impact, or if the mounting area on the truck is severely rusted.
Is replacing a Ford Ranger door hinge a DIY job?

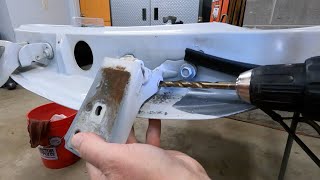

Replacing a pin and bushing kit is a manageable DIY job for someone with basic tools, though it requires some force to remove the old pin. 🎬 Watch a pro demonstrate how to remove and replace pins. Replacing the entire hinge assembly is more difficult because the door typically needs to be completely removed, which is a two-person job. Proper door alignment after installation can also be tricky.
Why doesn't my door stay open anymore?
The lower door hinge on many vehicles contains a spring or detent mechanism that holds the door open. When this internal part breaks or wears out, the hinge will still pivot, but it won't have the resistance to keep the door from swinging shut. In this case, replacing the complete lower hinge assembly is often the only fix.
Were there any recalls for 1983-1993 Ranger door hinges?
No, there have been no recalls or Technical Service Bulletins (TSBs) issued by Ford or the NHTSA for door hinge failures on the 1983-1993 Ford Ranger. The issues seen today are a result of normal wear and tear over several decades of use.
Helpful Videos
Technical Specifications
OEM Part Numbers: E6TZ-1331518-A
The assembly consists of two hinge halves joined by a central pin. The primary wear components are the steel pin and the brass or bronze bushings inside the hinge knuckles. Replacement requires 13mm wrenches or sockets.
