GMC Jimmy A/C Compressor Cut-Off Switch Guide (1983-1994)
Is your Jimmy's A/C quitting on you? It might be a simple switch.
- A bad A/C switch is a very common and simple-to-fix reason for no cold air in an '83-'94 Jimmy.
- The low-pressure switch on the accumulator can be replaced at home in minutes without special tools or losing refrigerant.
- Before buying, visually match your old switch's connector to the new part to ensure it's correct for your year.
- For this part, an affordable aftermarket brand like Four Seasons or Global Parts is a perfectly reasonable and practical choice.
Is Your GMC Jimmy's A/C Acting Up?
When the air conditioning in your 1983-1994 GMC Jimmy stops blowing cold, a faulty A/C cut-off switch is a common culprit. These switches are designed to protect your expensive A/C compressor, but they are also the most likely part of the entire system to fail from simple wear and tear. Before you assume the worst, understanding these switches can save you time and money.
Symptoms of a Bad A/C Cut-Off Switch
A failing switch will give you clear signs. Look out for these common symptoms:
- A/C blows warm air: The most obvious sign is a complete lack of cold air. If the switch fails in the 'off' position, it won't allow the compressor clutch to engage, and the cooling cycle never starts.
- Compressor clutch won't engage: You can often hear a 'click' from the engine bay when your A/C compressor engages. If you turn the A/C on and hear nothing, and the center of the compressor pulley isn't spinning, the switch may not be sending the signal.
- A/C works intermittently: A switch that is starting to fail may cause the compressor to cycle on and off rapidly or work for a little while and then quit, especially when it's hot outside.
Choosing the Right Aftermarket Switch
For a vehicle like the '83-'94 Jimmy, new OEM parts from ACDelco are often discontinued or extremely hard to find. The aftermarket is your best bet. The key is knowing which switch to buy.
Your Jimmy has two main switches:

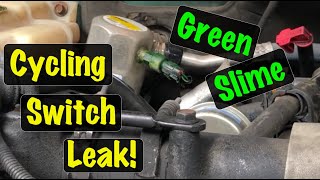

- Low-Pressure Cycling Switch: This is the most common failure point. It is located on the A/C accumulator (a large silver can near the firewall 🎬 Watch: Identifying and replacing a leaking cycling switch on the accumulator on the passenger side). It has threads and screws onto a service port.
- High-Pressure Cut-Out Switch: This switch is usually found on the back of the A/C compressor itself or on the smaller high-pressure A/C line.
Pro Tip: Identify Your Switch
Before ordering, pop the hood and find your switches. The low-pressure switch on the accumulator is the easiest to spot and replace. Check the electrical connector on your old switch and compare it to the pictures of the new part to ensure you get an exact match. There can be variations over the 11-year production run.
Aftermarket Brand Tiers
For a simple part like a switch, you don't need to overspend. Brands like Four Seasons and Global Parts offer direct-fit replacements.
- Four Seasons / Global Parts (Standard Replacement): These brands are the workhorses of the aftermarket A/C world. They produce functional, affordable parts that get the job done. While some online forums have mixed reviews on the Four Seasons brand for complex parts, their switches are generally considered a reliable and cost-effective repair for older vehicles.
- OEM/ACDelco (If Found): If you can find a New Old Stock (NOS) ACDelco part, it will be top quality, but expect to pay a premium. For most owners, a standard aftermarket part is the more practical choice.
Cost of A/C Cut-Off Switches (1983-1994 GMC Jimmy)
| Part Type | Price Range |
|---|---|
| New Aftermarket (Four Seasons, Global Parts) | $22.39 - $54.11 |
| New OEM (ACDelco) | $70 - $150+ (If available) |
Frequently Asked Questions
Can I replace the A/C switch myself?
Yes, probably. The low-pressure cycling switch located on the accumulator is very easy to replace. It is screwed onto a Schrader valve, similar to a tire valve. This means you can unscrew the old one and install the new one without losing refrigerant. The high-pressure switch may require evacuating the A/C system, which is a job for a professional.
How do I replace the low-pressure switch?

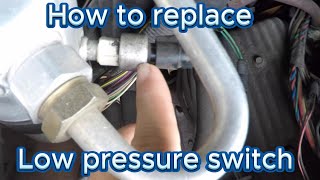

It's a simple job. First, locate the switch on the A/C accumulator. Disconnect the electrical plug. Use an open-end wrench to unscrew the old switch. A small puff of gas may escape, which is normal. Lightly lubricate the O-ring on the new switch with A/C oil, then screw it on until it's snug. 🎬 See this walkthrough for replacing the switch on a GMC Do not overtighten. Reconnect the electrical plug, and you're done.
Do I need to recharge my A/C after replacing the switch?
If you are replacing the low-pressure cycling switch on the accumulator, you should not need to recharge the system. It is designed to be replaced without losing the system's refrigerant. If your A/C was low on refrigerant to begin with (which also causes the switch to shut off the compressor), you will need to address the leak and then recharge it.
My new switch didn't fix the problem. Now what?
If a new switch doesn't solve your A/C issue, the problem lies elsewhere. The most common cause is a low refrigerant level due to a leak. Other possibilities include a bad compressor clutch, a blown fuse, or a wiring issue. You can test the switch's circuit by using a jumper wire on the electrical connector 🎬 Watch: How to test the switch circuit with a jumper to see if the compressor engages—this bypasses the switch. Warning: Only do this for a few seconds as a test; running the compressor without the switch's protection can cause damage.
Helpful Videos
Technical Specifications
The A/C system in the 1983-1994 GMC Jimmy is a Cycling Clutch Orifice Tube (CCOT) system. The cut-off switches are pressure-activated electrical switches. The low-pressure switch is typically located on the accumulator, while the high-pressure switch is on the compressor or high-side line.
