A Guide to Replacing Fuel Injectors on the 1983-1995 Chevrolet Cavalier
Solve rough idling and poor gas mileage by choosing the right new fuel injector for your Cavalier.
- First, identify if your Cavalier has a TBI (central) or MPFI (per-cylinder) system, as the parts are different.
- For reliability, choose a new injector from a reputable brand like ACDelco or Standard Ignition; avoid cheap, unbranded or remanufactured parts with poor reviews.
- A strong fuel smell is a critical symptom of a leak and a fire hazard; do not operate the vehicle if you smell gas.
- Always lubricate new O-rings with engine oil before installation to prevent tearing and ensure a proper seal.
Is Your Cavalier's Fuel Injector Failing?
A bad fuel injector rarely fails without warning. It usually causes noticeable engine problems first. If you experience these issues, it might be time for a replacement.
- Rough Idle or Stalling: The engine may shake, vibrate, or feel like it's going to stall when you're stopped.
- Engine Misfires: You might feel the car hesitating, jerking, or vibrating while driving. A flashing Check Engine Light often accompanies a misfire.
- Poor Fuel Economy: If you're filling up your gas tank more often than usual, a leaking or inefficient injector could be wasting fuel.
- Trouble Starting the Engine: A clogged injector can prevent enough fuel from reaching the engine, making the car hard to start. A leaking injector can flood the engine, also causing hard starts, especially when warm.
- Gasoline Smell: A strong smell of raw gasoline around the engine is a major red flag. This points to a fuel leak, which is a serious fire hazard. Do not drive the car if you smell gas.
TBI vs. MPFI: Know Your Cavalier's Fuel System
Before you buy a fuel injector, you must know which system your car uses. They are not interchangeable.

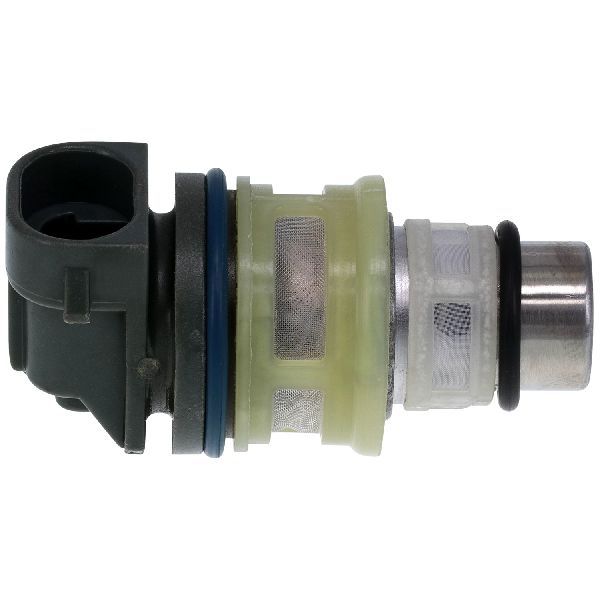

- Throttle Body Injection (TBI): Found mostly on earlier models from the 1980s and early 1990s. This system looks like a carburetor and has one or two large injectors mounted centrally on top of the engine. TBI injectors are generally easier and cheaper to replace.

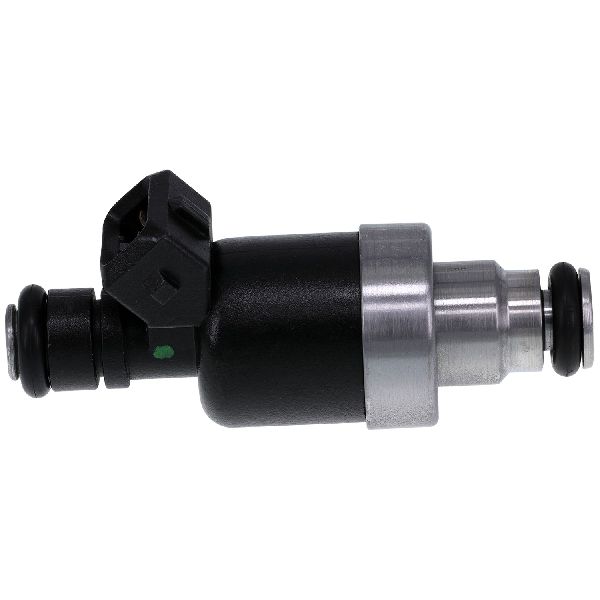

- Multi-Port Fuel Injection (MPFI): Found on most later models from the early to mid-1990s. This system has a separate, smaller fuel injector for each engine cylinder, mounted on a "fuel rail." These systems offer better performance but are more complex to service.
Pro Tip: The easiest way to tell is to look at your engine. If you see a single unit on top of the engine where a carburetor would be, you likely have TBI. If you see a metal tube (the fuel rail) with individual injectors going into the side of the engine, you have MPFI.
Choosing the Right Aftermarket Fuel Injector
Not all aftermarket injectors are created equal. For an older car like the Cavalier, choosing a quality part is key to a lasting repair. Cheap, low-quality injectors are known to fail quickly and can even cause engine damage.
Brand Quality Tiers
Premium / OEM-Equivalent: ACDelco
ACDelco is General Motors' own parts brand. Choosing an ACDelco injector guarantees the same fit, function, and quality as the part your Cavalier came with from the factory. For a reliable, no-hassle repair, this is the best option.
Mid-Grade Aftermarket: Standard Ignition (Standard Motor Products)
Standard is a well-known aftermarket brand that has historically been a reliable alternative to OEM parts. While some opinions suggest quality has varied in recent years, they remain a solid choice if a new ACDelco part is not in the budget.
Performance Upgrade: Accel
Accel specializes in performance parts. Their injectors often provide better fuel atomization and can be an upgrade for owners looking for improved throttle response. However, be aware that some Accel injectors may have a higher flow rate than stock, which could require other modifications or tuning for the best results.
Economy / High-Risk Brands: GBR Fuel Injection & "Replacement"
GBR Fuel Injection offers remanufactured injectors. Multiple owner reports and reviews show a high rate of failure, with injectors being defective right out of the box or failing shortly after installation. Similarly, generic, unbranded "Replacement" parts are extremely cheap for a reason. These budget options are a significant gamble and are not recommended, as a failed injector can leave you stranded or lead to more expensive repairs.
Vehicle-Specific Issues & Recalls
While there are no specific NHTSA recalls for fuel injectors on the 1983-1995 Cavalier, there are two related fuel system safety recalls to be aware of:
- 1989 Models - Fuel Tank: A recall (NHTSA Campaign ID: 88V189000) was issued for fuel tanks that could crack and leak fuel, creating a fire risk.
- 1990 Models - Aftermarket Fuel Filter: A recall (NHTSA Campaign ID: 06E043000) was issued for certain aftermarket FRAM brand fuel filters (part number G3727) that could leak. This did not apply to original equipment filters.
Cost of Replacing a Chevrolet Cavalier Fuel Injector
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Injector | $41 - $172 (per injector) |
| Shop Labor | $100 - $250 |
Cost estimates are for a single injector and typical labor rates. MPFI systems have multiple injectors, and it is often recommended to replace them as a set.
Frequently Asked Questions (FAQ)
Can I replace just one fuel injector?
Yes, you can replace only the failed injector. However, if one injector has failed due to age or clogging, others may not be far behind. For MPFI systems, many mechanics recommend replacing all injectors at the same time to ensure they are all balanced and flow at the same rate, which provides the smoothest engine performance.
Do I need special tools to replace a fuel injector?
For most Cavalier models, you can do the job with basic hand tools like a socket set and screwdrivers. A fuel line disconnect tool may be helpful for MPFI systems. The most important part of the process is safely relieving the fuel pressure before you begin.
What is the most common mistake when replacing injectors?
Forgetting to lubricate the new O-rings with clean engine oil before installation is a common and critical mistake. Dry O-rings can tear or get pinched during installation, causing a dangerous fuel leak. Also, ensure you get all the old O-ring material out of the port before installing the new part.
Should I use remanufactured or new injectors?
For a critical part like a fuel injector, new is almost always the better choice. While some remanufacturers are reputable, many budget options have high failure rates. Given the labor involved, installing a quality new part from a brand like ACDelco or Standard Ignition is a safer investment.
Technical Specifications
OEM Part Numbers: 217-2283 19110535 19244616 17113680
Varies by engine and fuel system (TBI or MPFI). Always verify the part number and flow rate for your specific vehicle year and engine size. Using an injector with the wrong flow rate can cause poor performance and engine trouble.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
