A Guide to the Engine Timing Belt on Your 1984-1988 Dodge Mini Ram
Here is what you need to know about replacing the timing belt on your Dodge Mini Ram's 4-cylinder engine.
- First, confirm you have the 2.2L or 2.5L engine, as the 2.6L engine uses a timing chain.
- Your engine is a non-interference design, so a broken belt will not cause catastrophic internal engine damage.
- Always replace the timing belt and tensioner together as a kit.
- Unlike many other vehicles, you do not need to replace the water pump with the timing belt on these engines.
Is It a Timing Belt or a Timing Chain?
Before you buy any parts, you must know which engine is in your 1984-1988 Dodge Mini Ram. During these years, Chrysler used two common 4-cylinder engines, and they are very different.
- Chrysler 2.2L or 2.5L Engine: These engines use a rubber timing belt. This guide is for you. 🎬 Vea este video para aprender cómo poner a tiempo el motor.
- Mitsubishi 2.6L Engine: This engine uses a metal timing chain. A timing chain is not a regular maintenance item and uses different parts.
The easiest way to check is to look at the front of the engine on the driver's side. A plastic cover that runs from the top to the bottom of the engine usually means you have a timing belt. A metal cover suggests a timing chain.
Good News: Your Engine is Non-Interference
If your Mini Ram has the 2.2L or 2.5L engine, you are in luck. These are non-interference engines. This means that if your timing belt breaks, the engine will shut off, but the pistons will not crash into the valves. A broken belt will leave you stranded and needing a tow, but it will not destroy your engine. This makes a timing belt failure much less scary than on other vehicles.

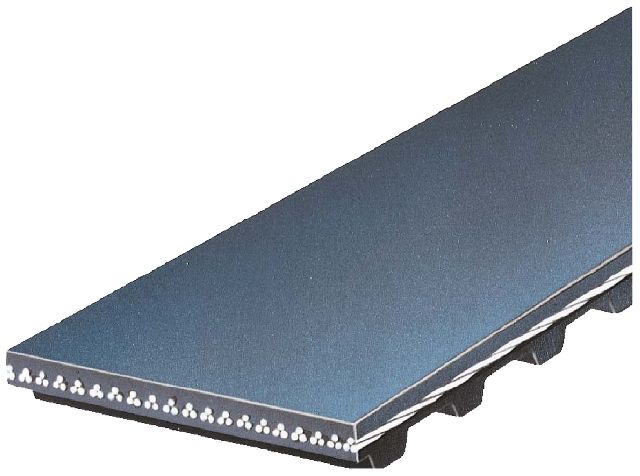

Choosing the Right Aftermarket Timing Belt
For a vehicle of this age, aftermarket parts are the most common and affordable option. Original OEM parts are likely no longer available. The good news is that brands like Gates, Dayco, Continental, and Cloyes are all well-known manufacturers that produce quality parts.
- Top Tier (Recommended): Gates and Continental are widely trusted by professional mechanics for their quality and reliability. These brands often supply the original parts for new cars.
- Good Value: Dayco is also a reputable brand that offers reliable parts, often at a slightly lower price point.
- Known for Chains: Cloyes is a top name in timing chains, and their quality is excellent in that area. While they make belts too, they are more known for their chain kits.
Always buy a timing belt kit, not just the belt. A kit should include a new belt and a new tensioner. The tensioner pulley wears out at the same rate as the belt, and a failed tensioner can cause a new belt to fail.
Cost to Replace Your Timing Belt
| Part Type | Price Range | Notes |
|---|---|---|
| New Aftermarket Kit | $19.95 - $56.24 | Includes belt and tensioner. Recommended. |
| New OEM | $100+ (if available) | Likely discontinued and very hard to find. |
| Shop Labor | $250 - $450 | Estimated 2-3 hours of work. | 🎬 Watch this step-by-step guide to replacing the belt yourself.
Frequently Asked Questions (FAQ)
How often should I replace the timing belt?
The original recommendation was around 60,000 miles. However, rubber degrades with age. For a vehicle this old, you should replace the belt every 5-7 years regardless of mileage, or immediately if its history is unknown.
Do I need to replace the water pump with the timing belt?
No. On the 2.2L and 2.5L Chrysler engines, the water pump is driven by the outer accessory belt, not the timing belt. This is a huge advantage, as you do not need to perform the labor-intensive job of replacing the water pump when you do the timing belt, saving you time and money. You only need to replace the water pump if it is leaking or failing on its own.
What are the signs of a bad timing belt?
A worn belt or tensioner can cause a ticking or squeaking noise from the engine. If the belt slips, you might experience a rough idle or poor engine power. If the belt breaks completely, the engine will crank over but will not start.
🎬 See common symptoms and fixes for a jumped timing belt.Are there any recalls for the timing belt?
No, there are no recalls from the NHTSA related to the timing belt for the 1984-1988 Dodge Mini Ram.
Helpful Videos
Technical Specifications
This guide applies to the Chrysler 2.2L and 2.5L 4-cylinder engines which use a rubber timing belt. It does not apply to the Mitsubishi 2.6L 4-cylinder engine which uses a timing chain.
