Pontiac Fiero Engine Coolant Temperature Sensor Guide (1984-1988)
Solving poor idle, bad fuel economy, and engine issues in your Fiero often starts with this critical sensor.
- Crucially distinguish between the ECT Sensor (for the computer) and the Temp Sender (for the dash gauge) to order the correct part.
- A bad ECT sensor primarily causes poor fuel economy, high idle, and a Check Engine Light.
- For the 2.8L V6, the EGR solenoid may need to be moved to access the sensor.
- Quality aftermarket brands like Delphi, Standard Ignition, and NGK are reliable replacements for the likely discontinued OEM part.
Is It the Sensor or the Sender? A Common Fiero Mistake
Before you buy, it's crucial to know which part you need. Your 1984-1988 Pontiac Fiero has two main coolant temperature units:
- Engine Coolant Temperature (ECT) Sensor: This has two wires and sends information to the engine's computer (ECM). A failure here affects engine performance, fuel economy, and can trigger the 'Check Engine' light. This is the part this guide focuses on.

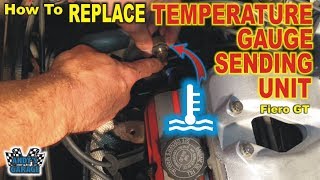

- Coolant Temperature Sender: This unit sends information to the temperature gauge on your dashboard. If your gauge is acting up but the car runs fine, the sender is the likely problem, not the ECT sensor. 🎬 Watch: How to replace the dashboard temperature gauge sending unit.
Ordering the wrong part is a common mistake. If your car is running poorly, you almost certainly need the ECT Sensor for the computer.
Symptoms of a Failing Fiero ECT Sensor
When the ECT sensor fails, it sends wrong information to the ECM, which can make your Fiero's engine behave poorly. It usually fails by telling the computer the engine is cold when it's not.
- Poor Fuel Economy: The most common symptom. The ECM provides too much fuel (a "rich" mixture) because it thinks the engine is always cold.
- Check Engine Light: A faulty ECT sensor will often trigger a Check Engine Light. You may see trouble code 14 (signal indicates high temp) or 15 (signal indicates low temp).
- High or Rough Idle: The computer may increase idle speed, thinking it needs to warm up a cold engine.
- Black Smoke from Exhaust: This is a sign of unburned fuel from a rich mixture, which can be caused by a bad ECT sensor.
- Failed Emissions Test: A rich fuel mixture will almost guarantee a failed emissions test.
- Hard Starting: The incorrect fuel and air mixture can make the engine difficult to start, whether it's hot or cold.
Choosing the Right Aftermarket ECT Sensor
For a vehicle like the Fiero, original OEM parts are often discontinued or difficult to find. Thankfully, the aftermarket offers many quality replacement options that meet or exceed original specifications. Here’s a look at the brands available.
Aftermarket Brand Quality Tiers
| Tier | Brands | Notes |
|---|---|---|
| Tier 1: Recommended | Delphi, Standard Ignition (SMP), NGK/NTK | These are highly reputable brands. Delphi was an original equipment manufacturer for GM, so their parts are often considered a direct replacement. NGK/NTK and Standard Ignition are known for their quality electronics and often include features like pre-applied sealant. |
| Tier 2: Quality Alternatives | Beck Arnley, Hella, Holstein, Motorad | These brands provide reliable parts that meet OE form, fit, and function. They are a solid choice for a standard replacement and offer good value. |
| Tier 3: Economy | Four Seasons, Global Parts, True Tech | These brands offer a budget-friendly option for getting your Fiero back on the road. While functional, they may not have the same long-term durability as higher-tier brands. |
A Note on 1984 Models
The 1984 Fiero uses a different style connector for the ECT sensor than 1985-1988 models. Many aftermarket sensors are for the 85-88 range but can be used on an 84 if you splice in the newer style connector, which is often sold separately or as part of a kit. Double-check the part's fitment notes for your specific year.
Vehicle-Specific Installation Tips
Replacing the ECT sensor is a job most DIY mechanics can handle in under an hour.
- Location on 2.5L 4-Cylinder: The sensor is located in the thermostat housing.
- Location on 2.8L V6: The sensor is located below the thermostat housing, screwing horizontally into the intake manifold. Access can be tight, and you may need to move the EGR solenoid out of the way. 🎬 Watch this walkthrough for replacing the sensor on a V6 engine.
- Tool Needed: You will typically need a 19mm deep socket to remove and install the sensor.
- Pro Tip: On some Fieros, the original sensor is threaded into a separate brass bushing which is then threaded into the engine. You may need to carefully remove this bushing from your old sensor and transfer it to the new one.
Frequently Asked Questions
Where is the ECT sensor located on my Fiero?
It depends on your engine. For the 2.5L 4-cylinder, it's in the thermostat housing. For the 2.8L V6, it's below the thermostat housing on the intake manifold.
Is this the sensor that controls my dashboard temperature gauge?
No. This sensor reports to the engine computer. The dashboard gauge is operated by a separate part called the temperature sender. If your gauge is faulty but the car runs well, you likely need the sender, not this sensor.
Can I drive my Fiero with a bad ECT sensor?
You can, but it is not recommended for long. The car will run poorly, get bad gas mileage, and the rich fuel mixture can damage your catalytic converter over time. It's best to replace it as soon as possible.
Was there a recall for the Fiero ECT sensor?
No, there were no specific recalls or Technical Service Bulletins (TSBs) for the ECT sensor itself. The Fiero did have a famous recall for engine fire risk, which was often related to oil and coolant leaks onto hot exhaust parts. A faulty ECT sensor could cause overheating, potentially making an existing leak worse, so ensuring the cooling system is in top shape 🎬 See how to troubleshoot complex cooling system issues on your Fiero. is critical for any Fiero owner.
Helpful Videos
Technical Specifications
OEM Part Numbers: 25036979 10045847 12146312 15326386
The ECT sensor is a two-wire thermistor that changes resistance based on coolant temperature. It is typically installed with a 19mm deep socket. The 1984 model has a different connector than 1985-1988 models.
