Accessory Drive Belt Guide for the 1984-1989 Cadillac DeVille
Address squealing noises and prevent breakdowns by choosing the right replacement drive belt for your Cadillac DeVille.
- Identify your system: 1984 models often have multiple V-belts, while 1985-1989 models typically use a single serpentine belt.
- Address fluid leaks from the HT-4100 engine before replacing the belt to prevent premature failure.
- Choose a top-tier aftermarket brand like Gates, Continental, Dayco, or ACDelco for proven reliability.
- Never drive with a broken belt, as it will cause the engine to overheat and lose power steering almost immediately.
Understanding Your DeVille’s Belt System: V-Belts vs. Serpentine
Before buying a part, it's important to know what your specific DeVille uses. This generation saw a transition in drive belt technology.

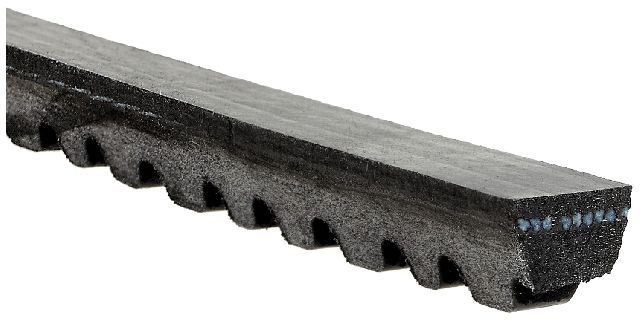

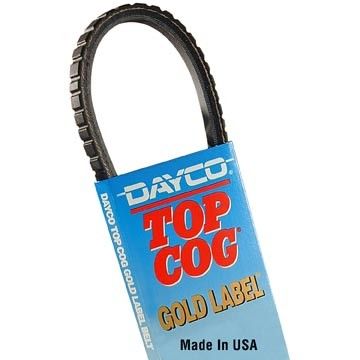

- 1984 Models: Most 1984 DeVilles with the 4.1L V8 engine use a multiple V-belt system. This means you will have several individual belts, each potentially driving one or two accessories.
- 1985-1987 Models: These years used the 4.1L HT-4100 engine but began switching to a single, wide serpentine belt. Be aware that different belt lengths may be required depending on your car's specific options.
- 1988-1989 Models: DeVilles with the 4.5L V8 engine use a single serpentine belt to power all accessories.
Pro Tip: The easiest way to confirm your setup is to look under the hood. If you see one wide, ribbed belt snaking around multiple pulleys, you have a serpentine belt. If you see two or more separate, smooth-sided V-shaped belts, you have V-belts.
🎬 See this walkthrough for replacing Cadillac V-beltsSymptoms of a Failing Accessory Drive Belt
A failing belt gives clear warning signs. Ignoring them can leave you stranded.
🎬 Watch: 6 common signs of drive belt failure- Squealing or Chirping Noises: This is the most common symptom. The high-pitched noise, especially on startup or when turning the wheel, is caused by the belt slipping on a pulley.
- Visible Wear and Damage: Inspect the belt for cracks, frayed edges, missing ribs, or a smooth, shiny appearance (glazing). A GM Technical Service Bulletin (TSB) notes that a serpentine belt with several cracks per inch should be replaced before it fails completely.
- System Failures: A slipping or broken belt will cause immediate problems, including an overheating engine, loss of power steering, a battery warning light on the dash, and the A/C blowing warm air.
A Warning for HT-4100 Engine Owners (1984-1987)
The 4.1L HT-4100 V8 is known for oil and coolant leaks. If these fluids drip onto the drive belt, they will cause the rubber to degrade quickly, leading to slipping and premature failure. Before installing a new belt, inspect the engine for any leaks from the valve covers, water pump, or radiator hoses and fix them first. A new belt will not last if it's contaminated with oil or antifreeze.
Choosing the Right Aftermarket Belt
For a vehicle of this age, OEM belts from Cadillac are likely discontinued or very difficult to find. The aftermarket offers excellent, readily available alternatives. The key is to choose a reputable brand.
Brand Quality Tiers
- Top-Tier Aftermarket (Recommended): Brands like Gates, Continental, Dayco, and ACDelco are well-regarded in the industry. Many are original equipment suppliers to various automakers and produce belts that meet or exceed OEM specifications. Forum discussions show that mechanics and experienced owners trust these brands for reliability and longevity.
- Economy Brands: While less expensive, store brands or unknown brands may not use the same quality EPDM rubber compounds, potentially leading to a shorter lifespan or noise issues. Given the critical function of the drive belt, spending a few extra dollars on a name-brand part is cheap insurance against a breakdown.
Known Issues: TSB for 1985-1987 DeVille Serpentine Belts
General Motors issued Technical Service Bulletin T-87-145 for 1985-1987 DeVilles with the HT4100 engine and a serpentine belt. Key points include:
- Two Belt Sizes for 1985: Early 1985 models with a 108-amp alternator use a different, shorter belt than later 1985 models with a 120-amp alternator. Using the wrong belt will cause tension issues.
- Tensioner Wear Indicator: The automatic belt tensioner has a wear indicator. The belt must be replaced when the arrow on the tensioner arm moves to the end of the "operating range" stamped on the bracket. 🎬 Learn the top symptoms of a bad belt tensioner
| Part Type | Price Range |
|---|---|
| New Aftermarket Belt | $2.60 - $49.86 |
| Shop Labor for Installation | $60 - $120 |
Frequently Asked Questions (FAQ)
Can I drive my DeVille if the accessory belt is bad?
No. If the belt breaks, the water pump will stop working, causing the engine to overheat rapidly, which can lead to severe engine damage. You will also lose power steering, making the car very difficult to control, and the alternator will stop charging the battery.
Why is my new belt squeaking?
A new belt can squeak if it's the wrong size, if the tensioner is weak or failing, or if one of the accessory pulleys (like the alternator or power steering pump) is misaligned or has a bad bearing. Also, ensure the pulleys are clean and free of oil or coolant residue before installation.
How do I know which serpentine belt my 1985 DeVille needs?
According to a GM TSB, the belt size depends on your alternator. Early 1985 models (before VIN 321327) with the 108-amp alternator use a 2200mm belt (GM Part #1625691). Later models with the 120-amp alternator use a 2210mm belt (GM Part #1643049). It is best to verify with your VIN or by measuring the old belt if possible.
Is ACDelco the same as the original GM part?
ACDelco is General Motors' official parts brand. For a 1980s vehicle, an ACDelco belt is generally considered the closest you can get to the original factory part and is a high-quality choice.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1625691 1643049
System type varies by year. Early models (c. 1984) use multiple V-belts. Mid-generation models (1985-1987) use a single serpentine belt (approx. 2200mm or 2210mm length). Later models (1988-1989) use a single serpentine belt (approx. 86.8-inch length, 6-rib).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
