Engine Timing Set Guide for 1984-1989 Ford E-150 Econoline Club Wagon
Keep your classic Ford van running strong by understanding its specific engine timing needs.
- First, identify your engine: V8 engines use a timing chain, while the 4.9L Inline-6 uses timing gears.
- For 4.9L I-6 engines, always replace the original fiber gear with an all-metal set and clean the oil pan.
- For V8 engines, a quality aftermarket set from Cloyes or Melling is a reliable choice for stock replacement.
- This is a labor-intensive job; consider replacing the water pump and front seals at the same time to save on future labor costs.
Is Your Van's Engine a V8 or an Inline-6? This is Critical.
Before you shop for parts, you must know which engine is in your 1984-1989 E-150 Club Wagon. The timing components are completely different between the engine types.
- 5.0L (302) V8 & 5.8L (351W) V8: These engines use a timing chain and sprocket set. The original chains can stretch over many miles, causing timing to become inaccurate.
- 4.9L (300) Inline-6: This engine uses a set of two timing gears and does not have a chain. The original camshaft gear was made of a fibrous, plastic-like material (phenolic resin) for quieter operation. This gear is known to fail by stripping its teeth, which can cause the engine to suddenly stop running.
Signs of a Failing Timing Set
Symptoms differ slightly depending on your engine.
🎬 Watch: Top 5 symptoms of a bad timing chainFor 5.0L & 5.8L V8 Engines (Stretched Chain):
- Engine Rattle: A rattling or slapping noise from the front of the engine, especially at idle or on startup, is a classic sign of a loose chain.
- Reduced Power & Poor Performance: As the chain stretches, camshaft timing becomes retarded, leading to a sluggish feel and difficulty accelerating.
- Timing Fluctuation: If checking ignition timing with a timing light, the mark may appear unsteady or jump around.
For 4.9L Inline-6 Engines (Failing Gear):
- Sudden Engine Stoppage: The most common failure is the teeth shearing off the fiber cam gear, causing the camshaft (and distributor) to stop turning instantly. The engine will crank but will not start.

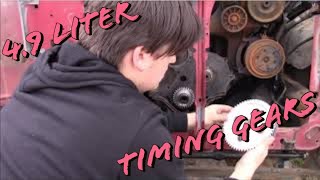

- No Distributor Rotor Movement: A quick check is to remove the distributor cap and have a helper crank the engine. If the rotor does not spin, the cam gear has likely failed. 🎬 See how to troubleshoot a 4.9L no-start condition
- Engine Noise (Less Common): Sometimes a clattering or grinding noise may be heard before total failure as the gear teeth start to break apart.
Is it an Interference Engine?
Fortunately, both the V8 and Inline-6 engines from this era are considered non-interference designs. This means that if your timing chain breaks or your timing gear fails, the pistons will not crash into the valves. This usually prevents catastrophic internal engine damage, making the repair much more straightforward.
Choosing the Right Aftermarket Timing Set
For a vehicle of this age, a quality aftermarket set offers the best value. The key is choosing the right type for your needs.
Brand Tiers for V8 & I-6 Replacements:
- Standard Replacement (Good): Brands like Cloyes and Melling are the go-to for reliable, OE-style replacements. They offer standard silent chains (like the original) and all-metal timing gear sets for the 4.9L, which is a highly recommended durability upgrade over the original fiber gear. For a daily driver, these are excellent choices.
- Heavy-Duty / Performance (Better): Brands like Melling Select Performance, Edelbrock, and Ford Performance offer upgraded sets. For V8s, this often means a 'double roller' chain, which is stronger and more precise than the stock 'silent' chain. These kits often include multi-index sprockets, allowing for advanced or retarded cam timing for performance tuning. For a work van or one used for towing, a double roller set is a great upgrade.
- Premium OE-Style (Best for Quiet Operation): A brand like INA is known for being an original equipment supplier and provides high-quality, quiet-running components that meet or exceed factory specs.
Pro Tip for 4.9L Owners: When replacing the original fiber and steel timing gears, always upgrade to an all-steel set. The slight increase in engine noise is a tiny price to pay for the massive increase in durability. You will likely never have to worry about it again.
Expected Cost for Timing Set Replacement
This is a labor-intensive job due to the need to access the front of the engine. The radiator, water pump, and harmonic balancer must be removed.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $29.79 - $151.47 |
| Shop Labor | $500 - $900+ |
| Total Professional Replacement | $530 - $1,052+ |
Frequently Asked Questions (FAQ)
Do I need a recall for my timing set?
No. Searches of the NHTSA database show no recalls for the timing chain or timing gears on the 1984-1989 Ford E-150.
Should I get a standard 'silent' chain or a 'double roller' chain for my V8?
For a stock daily driver, a quality silent chain from a brand like Cloyes or Melling is perfectly fine and will be quiet. If you tow, carry heavy loads, or have a modified engine, a double roller chain provides extra strength and timing accuracy.
If my 4.9L timing gear failed, do I need to do anything else?
Yes. It is critical to drop the oil pan and clean it out, along with the oil pump pickup screen. Pieces of the failed fiber gear can get into the oil pan and clog the oil pump pickup, which can starve the engine of oil and cause catastrophic failure.
Can I replace the timing set myself?
This is an advanced DIY job. It requires significant disassembly of the front of the engine, a harmonic balancer puller, and careful attention to aligning the timing marks. While feasible for an experienced home mechanic, it can be challenging for a novice.

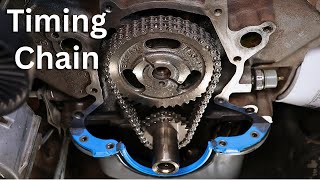

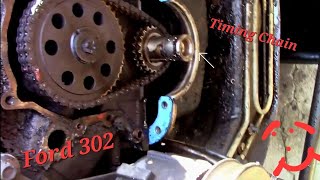

🎬 Watch this step-by-step V8 timing chain replacement walkthroughHelpful Videos
![Top 5 Symptoms of a BAD TIMING CHAIN [What to Look Out For]](https://img.youtube.com/vi/7beQX8cE-18/mqdefault.jpg)
Technical Specifications
Varies by engine. V8 engines (5.0L/302, 5.8L/351W) use a timing chain and two sprockets. The 4.9L (300) I-6 engine uses a two-gear set (crankshaft and camshaft). Aftermarket performance kits for V8s may include double-roller chains and multi-position sprockets for timing adjustments.
