Toyota 4Runner Back Up Light Switch Guide: 1984-1989
If your reverse lights have failed on your first-generation 4Runner, the back up light switch is a common and simple fix.
- The most common symptom of failure is both reverse lights not working.
- Always check bulbs, fuses, and wiring connections before replacing the switch.
- The switch for a manual transmission is a simple, low-cost part that is easy to replace.
- The switch for an automatic transmission is a different, more expensive part called a Park/Neutral Position (PNP) switch.
Is Your 4Runner's Back Up Light Switch Failing?
A non-functional back up light switch is a safety hazard and can get you a traffic ticket. When this switch fails, drivers behind you won't get a clear signal that you are reversing. On the first-generation 4Runner, the system is straightforward, making it easy to diagnose. The most common problem is a complete failure where the lights don't turn on at all. Before replacing the switch, always check the simple things first: make sure the light bulbs are good and check the fuse for the reverse lights in the fuse panel. Also, inspect the wiring, as a disconnected plug near the starter has been known to cause this issue.
Key Symptoms of a Bad Back Up Light Switch
- Reverse Lights Don't Work: The most common symptom. When you shift into reverse, the lights do not turn on, even with good bulbs and fuses.
- Intermittent Reverse Lights: The lights may flicker or only work sometimes. This can indicate a worn internal contact within the switch.
Choosing the Right Aftermarket Part (Manual Transmission)
When replacing the back up light switch on your manual transmission 4Runner, you have several good aftermarket options that offer a balance of quality and value compared to the original equipment (OEM) part.
Aftermarket Brand Quality Tiers
| Tier | Brands | Assessment |
|---|---|---|
| Premium Aftermarket | Standard Ignition, Rostra Powertrain | Standard Ignition (SMP) is a trusted brand with a long history of making reliable electronic parts, often meeting or exceeding OEM quality. They use high-quality materials like copper alloy conductors and perform 100% testing on their switches. Rostra is a certified OE supplier for many automakers and specializes in transmission electronics, making them a top choice for durability. |
| Mid-Grade / Value | Facet | Facet is an Italian manufacturer that produces a wide range of parts. While their aftermarket quality can vary, their simpler switches are generally considered a reliable and cost-effective option that meets OE specifications. |
| OEM | Toyota | Genuine Toyota parts offer a guaranteed fit and original quality, but at a significantly higher price point. For a simple switch like this, a premium aftermarket brand often provides similar performance for less money. |
Typical Costs for a New Back Up Light Switch (1984-1989 4Runner)
| Part Type | Price Range |
|---|---|
| New Aftermarket | $29.93 - $81.85 |
| New OEM | $45.00 - $95.00 |
| Shop Labor | $50 - $100 |
Installation Overview (Manual Transmission)
Replacing this switch is a great DIY job for beginners. The difficulty is low and it requires basic hand tools.
- Locate the Switch: Find the switch on the driver's or passenger's side of the manual transmission housing. It will have a wire connector attached to it.
- Disconnect and Remove: Unplug the electrical connector. Use a wrench to unscrew the old switch from the transmission. A small amount of gear oil may leak out, so have a rag ready.
- Install New Switch: Screw the new switch in by hand until its gasket makes contact, then tighten it gently with a wrench. Do not overtighten.
- Reconnect and Test: Plug the electrical connector back in. With the parking brake on and the engine off, turn the key to the 'on' position and shift into reverse to confirm the lights work.
Frequently Asked Questions
Is the back up light switch for a manual and automatic transmission the same?
No, they are very different. Manual transmission models use a simple, inexpensive screw-in switch. Automatic models integrate this function into the Park/Neutral Position (PNP) switch, which is a larger, more complex, and more expensive part. Be sure to order the correct part for your transmission type.
Where is the back up light switch located on a first-gen 4Runner?
On manual transmission models, it is threaded into the side of the transmission case. On automatic models, the Park/Neutral Position switch that controls the lights is mounted on the side of the transmission where the shift linkage connects.
Can I replace this switch myself?
Yes, for manual transmission models, this is a very easy job that typically takes less than 30 minutes with basic tools. It is one of the simplest sensor replacements on the vehicle.
Are there any recalls for the back up light switch on the 1984-1989 4Runner?
No, there are no recalls or common Technical Service Bulletins (TSBs) from Toyota for the back up light switch on this generation of 4Runner.
Technical Specifications

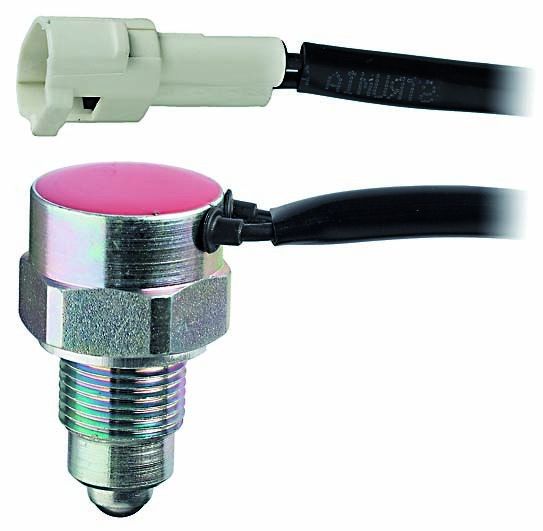

OEM Part Numbers: 84210-60021 84210-35030 84210-12040 84210-52050
2-Pin Connector, Plunger-activated switch for manual transmission.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
