A Guide to the 1984-1990 Dodge Caravan Rear Drum Brake Hardware Kit
Everything you need to know about replacing the springs, clips, and adjusters in your first-generation Caravan's rear brakes.
- Always replace the drum brake hardware kit when replacing the brake shoes to ensure safety and proper function.
- A seized self-adjuster is a common failure point that leads to a low brake pedal; a new kit solves this issue.
- All listed aftermarket brands (Carlson, Centric, Dorman, ACDelco, Dynamic Friction) are reliable choices for this vehicle.
- If you find any brake fluid leaks inside the drum, you must also replace the wheel cylinder and the contaminated shoes.
Why Your Drum Brake Hardware Matters
On a first-generation Dodge Caravan, the rear drum brakes handle a good portion of the stopping work, especially when the van is loaded. The hardware inside the brake drum operates under constant heat and tension. Over decades of use, these metal springs lose their strength, and other parts can rust and seize. A weak return spring can cause the brake shoes to drag against the drum, leading to noise and premature wear. A seized self-adjuster is a common issue that prevents the brakes from maintaining their proper spacing, resulting in a low, soft brake pedal and reduced stopping power. Because of this, it is always recommended to replace the entire hardware kit whenever you replace your brake shoes.
Symptoms of Failing Drum Brake Hardware
Failing hardware often shows the same symptoms as worn-out brake shoes. If you are planning a brake job, replacing the hardware is a cheap and easy way to ensure a complete and lasting repair. Look out for these warning signs:
- Scraping or Grinding Noises: Sounds from the rear wheels when you apply the brakes often mean the shoes are worn, but can also be caused by a broken or out-of-place hardware component.
- Soft or Spongy Brake Pedal: If the self-adjuster is not working, the shoes have to travel farther to contact the drum, which can make the pedal feel low or soft.
- Loose Parking Brake: The parking brake relies on the rear shoes. If the hardware is worn or the adjuster is seized, the parking brake may feel loose or not hold the vehicle securely.
- Brakes Pulling to One Side: Unevenly worn or malfunctioning hardware on one side can cause that brake to engage differently than the other, making the van pull left or right during braking.
Known Issues for This Generation
A recall was issued for some 1990 Dodge Caravan models for a faulty brake proportioning valve, which could lead to rear-wheel lock-up under heavy braking. While not a hardware issue, this highlights the importance of ensuring the entire rear brake system is in perfect working order. Seized self-adjusters due to rust are also a common problem on older drum brake systems.
Choosing the Right Aftermarket Hardware Kit
For a vehicle of this age, original Mopar hardware is generally unavailable. The aftermarket is your primary source, and the quality from reputable brands is typically very good for daily driving needs. The brands available are all well-regarded, and since the price difference is minimal, your choice can come down to brand preference or availability.
| Brand Tier | Brands | Quality & Notes |
|---|---|---|
| Standard / Daily Driver | Carlson, Dorman, Centric | These brands are the workhorses of the aftermarket. They provide complete, reliable kits that meet or exceed original factory specifications. Carlson is frequently praised for its complete and well-fitting kits. Centric is also a major name in braking and is considered a quality choice. Dorman is a widely available and dependable option. |
| Standard / Daily Driver | ACDelco, Dynamic Friction | ACDelco is a GM-owned company, but their Advantage line (often in silver packaging) is made for all makes and models and offers good quality at a value price. Dynamic Friction is another solid brand; some users note their kits may include more stainless steel components for better corrosion resistance. |
Pro Tip: When you buy a kit, open it and compare the new parts to the old ones before you fully disassemble your brakes. This ensures you have the correct parts and helps you remember how everything goes back together. Taking a picture with your phone before you start is also a great idea.
Estimated Cost for a New Drum Brake Hardware Kit
Replacing the drum brake hardware is one of the most inexpensive parts of a brake job. The cost of the kit itself is very low, and the labor is almost always included when you are already having the brake shoes replaced.
| Part Type | Estimated Cost (Part Only) |
|---|---|
| New Aftermarket Hardware Kit | $10.92 - $15.37 |
| New OEM (Mopar) Hardware Kit | Not available / Discontinued |
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware with the shoes?
Yes, it is highly recommended. The springs lose tension over time from heat and use. A new hardware kit is very inexpensive and ensures your new brake shoes will work correctly, wear evenly, and last as long as possible.
What tools do I need to replace the drum brake hardware?
While you can do the job with standard pliers and screwdrivers, a set of drum brake tools makes it much easier and safer to handle the strong springs. These tools are inexpensive and a worthwhile investment if you plan to do the job yourself.
How does the self-adjuster work on my Caravan?
The self-adjusting mechanism on your 1984-1990 Caravan is designed to work when you apply the brakes while rolling in reverse and coming to a stop. This action turns a small star wheel, slightly expanding the shoes to account for wear. If this adjuster rusts or is installed incorrectly, it will not function.
My wheel cylinder is leaking. Should I still replace the hardware?
Yes. If your wheel cylinder has leaked brake fluid, you must replace the wheel cylinder, the contaminated brake shoes, and the hardware kit. Brake fluid soaks into the shoe material and cannot be cleaned off, making the brakes unsafe. Since you will have the entire assembly apart, it is the perfect time to install a fresh hardware kit.
Technical Specifications

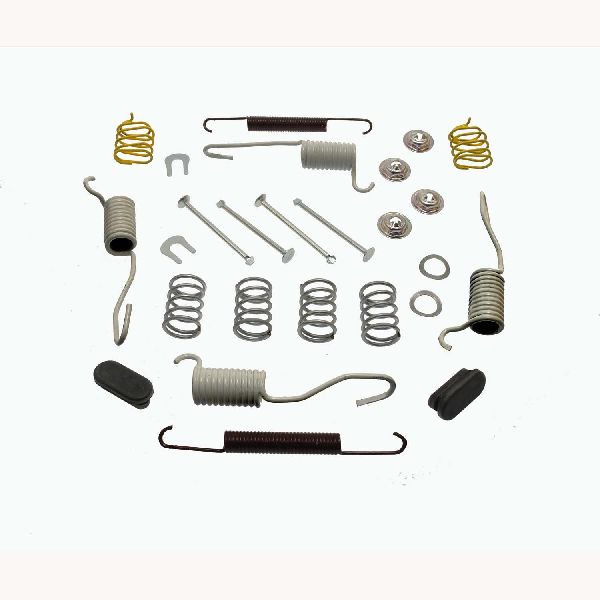

Kit typically includes return springs, hold-down springs, pins, clips, and self-adjuster components for a complete rear axle service.
