Choosing the Right Universal Joint for Your 1984-1991 GMC P3500
Don't let a bad U-joint leave your heavy-duty P3500 stranded; here's how to pick the right replacement.
- Prioritize premium brands like Dana Spicer for a heavy-duty P3500 chassis, as they offer superior durability.
- Symptoms like clunking, squeaking, and vibrations are serious warnings that should not be ignored to prevent a complete driveshaft failure.
- Always measure your existing U-joints before ordering, as sizes can vary by position and due to previous modifications.
- High-quality sealed (non-greasable) U-joints are often the most reliable, low-maintenance choice for these trucks.
Is Your GMC P3500 U-Joint Failing?
A failing U-joint on a P3500 chassis is not just noisy; it's a serious safety issue. Given the age and heavy-duty nature of these vehicles, U-joints are a common wear item. Ignoring the signs can lead to driveshaft separation, causing a loss of power and potentially severe damage to the underside of your truck. Listen and feel for these warning signs.
Common Failure Symptoms:
- Squeaking Noise: A rhythmic squeaking that matches your driveshaft's rotation, most noticeable at low speeds (under 10 mph), is an early sign the U-joint's internal bearings are dry.
- Clunking or Ringing Sound: A distinct "clunk" when you shift from drive to reverse (or vice-versa) indicates excessive play in the joint.
- Vibrations at Speed: A vibration that you can feel through the floor of the truck and that gets worse as you accelerate is a classic symptom of a worn and unbalanced U-joint. This is often confused with a tire imbalance, but if balancing the tires doesn't fix it, the U-joint is a likely culprit.
Critical Failure Warning
If a U-joint fails completely, the driveshaft can detach from the vehicle. This will leave you stranded and can cause catastrophic damage to the transmission, exhaust, and brake lines as the loose driveshaft flails around. At the first sign of a bad U-joint, get it inspected.

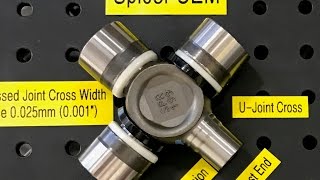

🎬 Watch: How to diagnose and replace your universal joints.OEM vs. Aftermarket Quality
For a vehicle from this era, OEM parts from a GM dealer are likely unavailable or are simply re-boxed aftermarket parts. The focus should be on high-quality aftermarket brands. For a heavy-duty chassis like the P3500, choosing a quality part is more important than saving a few dollars on an economy brand. The consensus among truck owners is that premium aftermarket brands like Dana Spicer are often the original equipment supplier and provide the best durability.
Choosing the Right Aftermarket U-Joint
Not all aftermarket U-joints are created equal. They generally fall into three tiers of quality and price. For a workhorse like the P3500, investing in a premium or mid-grade part is highly recommended.
Brand Tiers for Your P3500
- Premium (OEM Quality or Better): Dana Spicer Chassis is widely regarded as the top choice for heavy-duty applications. They are known for being the OEM supplier for many trucks and offer excellent strength and longevity. Many owners will use nothing else.
- Mid-Grade (Reliable Replacements): Moog and ACDelco are strong contenders. Moog has a long-standing reputation, though some users note their quality can be inconsistent depending on the specific product line (premium vs. standard). ACDelco is GM's official parts brand and is often considered a trustworthy equivalent to the original part.
- Economy (Budget-Friendly): GMB is a well-known economy brand that produces a wide range of automotive parts. While they can be a good value and meet OEM specifications, some users have reported issues with roughness or lower-grade materials compared to premium brands. For a light-duty car, they might be fine, but for a P3500, they should be considered a budget option.
Pro Tip: Greasable vs. Sealed U-Joints
You will see two types of U-joints: sealed (non-greasable) and greasable (with a zerk fitting).
Sealed joints are often considered stronger because the cross is solid, and they are maintenance-free.
Greasable joints can have a longer service life *if* you grease them regularly as part of your maintenance schedule. For a P3500 that sees hard use, a high-quality sealed joint from a brand like Spicer is often the most reliable, install-and-forget option.
Estimated Replacement Costs
The cost to replace a U-joint depends on the brand you choose and whether you do the work yourself or hire a professional.
| Part/Service | Estimated Cost |
|---|---|
| Aftermarket U-Joint Part | $18 - $238 |
| Shop Labor | $125 - $250 |
| Total Professional Replacement | $143 - $488 |
Cost estimates are based on national averages and may vary by location and specific vehicle configuration. The part price reflects the provided inventory range.
Frequently Asked Questions (FAQ)
How many U-joints does my 1984-1991 P3500 have?
Most 1984-1991 GMC P3500 models have a two-piece driveshaft, which typically uses three U-joints and a center support bearing. However, configurations can vary. It is essential to inspect your specific vehicle to confirm the number of joints before ordering parts.
Do I need special tools to replace a U-joint?
While a specialized U-joint press makes the job easier, it can be done with a sturdy bench vise, a large hammer, and a set of sockets (one small enough to press on the cap, one large enough to receive it). Some original GM joints from this era used injected plastic retainers that must be melted with a propane torch before the joint can be pressed out.
🎬 See how to remove those tricky plastic injected U-joints.Are all U-joints for the P3500 the same size?
No. It's possible for different positions (front, center, rear) to use different size U-joints. Furthermore, previous owners may have swapped axles or driveshafts, resulting in a need for "conversion" U-joints that have two different cap sizes. Always measure your old U-joint's cap diameter and width before ordering a replacement.
Were there any recalls for P3500 U-joints?
A search of the National Highway Traffic Safety Administration (NHTSA) database shows no specific recalls or technical service bulletins (TSBs) for universal joints on the 1984-1991 GMC P3500. Any failures are typically due to normal wear and tear over time.
Helpful Videos
Technical Specifications
OEM Part Numbers: 15633733
The GMC P3500 can use several U-joint series, most commonly the 1350 or 1410 series, depending on the specific drivetrain configuration and year. These are external snap ring types. It is critical to measure the cap diameter and overall width of your existing joints to ensure a correct match.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
