Distributor Cap Replacement and Diagnosis for 1984-1991 Nissan Pickup
A complete guide to diagnosing, replacing, and choosing the right distributor cap for your Z24 or VG30 powered Nissan D21 Hardbody or 720 pickup.
- A failing distributor cap on a Nissan Pickup causes misfires, rough idle, and starting issues.
- Moisture inside the cap is a common problem; check for cracks or a bad seal.
- Be extremely careful with the mounting screws; they are known to break off in the distributor housing.
- Always replace the distributor rotor at the same time as the cap for a complete tune-up.
Understanding the Distributor Cap on Your Nissan Pickup
If you own a 1984-1991 Nissan Pickup, also known as the D21 "Hardbody" or the earlier 720, you have a simple and reliable ignition system. The distributor cap is a critical part of this system. It's a plastic cap, usually black or brown, with several thick spark plug wires coming out of the top. Over time, the high voltage and heat from the engine can cause the cap to wear out, crack, or build up corrosion on the inside terminals. This wear and tear can lead to a variety of engine performance problems.
Symptoms of a Failing Distributor Cap
A bad distributor cap can make your truck run poorly. Because the part is simple, the signs of failure are usually straightforward. You might notice one or more of these issues:
- Engine Misfires: The engine may shake or stumble, especially under load.
- Rough Idle: Your truck might idle unevenly or feel shaky when stopped.
- Difficulty Starting: The engine may take longer than usual to start, or it might not start at all. 🎬 See how a broken distributor can prevent your truck from starting.
- Check Engine Light: A persistent misfire can trigger the check engine light.
- Stalling or Backfiring: In more serious cases, the engine may stall unexpectedly or backfire.
One common issue with the Z24 engine in these pickups is moisture getting inside the distributor cap, which can cause similar symptoms. If your truck starts running rough after a rainstorm or a car wash, it's a good idea to check inside the cap for water droplets.
🎬 Learn more about common Z24 engine issues and moisture problems.Choosing the Right Aftermarket Distributor Cap
For a simple maintenance part like a distributor cap, aftermarket options offer good value. The original OEM Nissan caps are high quality, but a good aftermarket part will perform just as well for most owners. The key is to choose a reputable brand.
Standard Ignition (Standard Motor Products): This is a well-known and widely available aftermarket brand that produces a large number of parts for these trucks. They are generally considered a reliable standard replacement option, offering a good balance of quality and price. Their parts meet or exceed OEM specifications.
When choosing a cap, pay attention to the terminal material. Brass terminals are often preferred over aluminum for better conductivity and corrosion resistance, which can lead to a longer service life.
Common Ordering Mistake: Hitachi vs. Mitsubishi Systems
Nissan used distributors from two different suppliers during this period: Hitachi and Mitsubishi. While the caps look similar, they may not be interchangeable. Always verify which system your truck has before ordering. The manufacturer's name is often stamped on the distributor housing itself.
Cost to Replace a Nissan Pickup Distributor Cap
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (e.g., Standard Ignition) | $23 - $28 |
| New OEM (Nissan) | $45 - $65 |
| Shop Labor | $50 - $100 |
Note: Costs are estimates and can vary based on location and supplier. It is highly recommended to replace the distributor rotor at the same time as the cap.
Pro Tip: A Common Installation Problem
A very common issue when replacing the cap on these Nissan trucks is breaking the mounting screws. The steel screws often seize inside the aluminum distributor housing. When you try to unscrew them, they snap off. To avoid this, spray the screws with penetrating oil and let them soak before attempting removal. If a screw does break, you may need to drill it out and use a nut and bolt to secure the new cap.
Frequently Asked Questions (FAQ)
Do I need to replace the rotor with the cap?
Yes. It is always recommended to replace the distributor rotor when you replace the cap. The rotor is a small, inexpensive part that wears out at the same rate as the cap. Most tune-up kits include both parts.
Is this a difficult job to do myself?
No, this is a very easy job for a DIY mechanic. The main challenge is the potential for the screws to break. The replacement itself only requires basic hand tools and about 15-30 minutes.

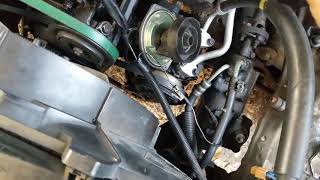

🎬 Watch this step-by-step walkthrough of a cap and rotor replacement.How do I make sure I put the spark plug wires back correctly?
The easiest way is to move the wires one at a time. Unplug a wire from the old cap, and immediately plug it into the same position on the new cap. Some new caps even have the cylinder numbers printed on them to help. Mixing up the wires will cause the engine to run very poorly or not at all.
Are there any recalls on the distributor cap for my truck?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any safety recalls or technical service bulletins (TSBs) specifically related to the distributor cap for the 1984-1991 Nissan Pickup.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22162-40F00 22162-18F01 22162-16E04 22162-40F10
Fits 1984-1991 Nissan 720 and D21 Pickup models with Z24 4-cylinder or VG30 V6 engines. Cap is typically secured by two screws. Terminal material can be aluminum or brass. Note that Nissan used parts from both Hitachi and Mitsubishi, which may not be interchangeable.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
