A Detailed Guide to the Engine Camshaft Position Sensor for the 1986-1993 Buick Riviera
Keep your Riviera's 3.8L V6 running smoothly by understanding this critical ignition sensor.
- This sensor is only for 1986-1993 Riviera models with the 3.8L V6; earlier models use a different system.
- A common failure is the magnet falling off the cam sprocket, which requires a more complex repair than just replacing the sensor.
- Symptoms include stalling, no-start, a rough idle, and a Check Engine Light with OBD1 Code 41.
- For best results, choose a premium aftermarket brand like Standard Ignition or an OEM AC Delco part to ensure reliability.
Is This Part For Your Car? A Note on Riviera Years
This guide is for the 1986-1993 Buick Riviera equipped with the 3.8L V6 engine. These models use a modern electronic ignition that requires a camshaft position sensor. The earlier 1984-1985 models used a traditional distributor and do not have this specific part. There was no 1994 Buick Riviera model year produced.
Symptoms of a Failing Camshaft Position Sensor
A bad cam sensor can cause problems that range from annoying to leaving you stranded. Here are the most common signs:

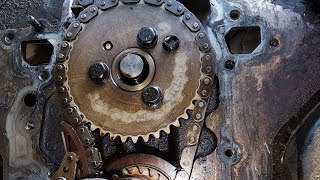

- Check Engine Light: This is often the first sign. On these cars, it will trigger an OBD1 trouble code, most commonly Code 41, 🎬 Watch: Troubleshooting Code 41 and checking your timing chain. which points to a fault in the camshaft sensor circuit.
- Engine Stalling: The engine may stall unexpectedly, either at idle or while driving, and may be difficult to restart.
- Hard Starting or No Start: The engine may crank for a long time before starting, or it may not start at all.
- Rough Running: You may notice a rough idle, engine misfires, and hesitation or stumbling during acceleration.
- Reduced Power and Fuel Economy: With incorrect timing, the engine loses efficiency, resulting in poor acceleration and more trips to the gas pump.
A Common and Unique Problem: The Camshaft Magnet

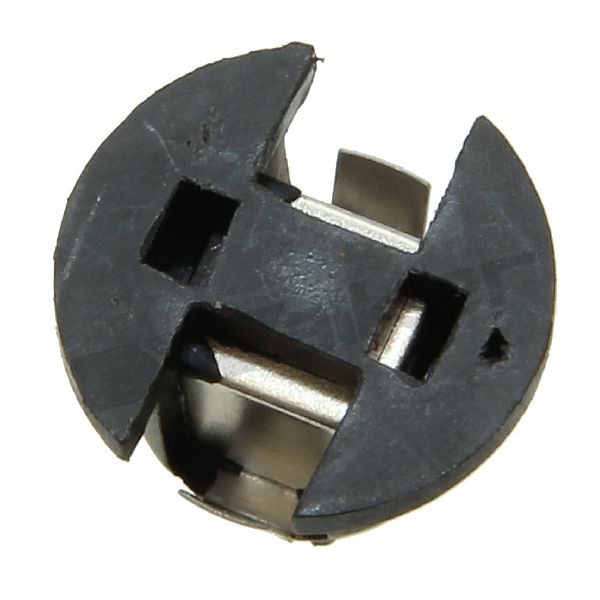

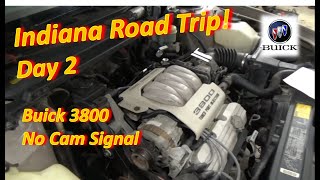

A very common issue on the GM 3800 engine from this era is not the sensor itself, but the small magnet it reads. This magnet, called an interrupter, is mounted on the camshaft sprocket. Over time, it can break and fall off. When this happens, the sensor has nothing to read, causing a constant Code 41 and a no-start or very poor running condition. The official fix involves removing the timing cover, but many mechanics and DIYers have successfully repaired it by epoxying a new magnet in place 🎬 See how to diagnose and fix a missing cam magnet. through the sensor mounting hole.
Choosing the Right Aftermarket Part: Quality Tiers
When replacing a critical sensor like this, quality matters. While many brands are available, they generally fall into two categories.
Premium Aftermarket Brands (Recommended)
- Standard Ignition (SMP): Often considered a top-tier aftermarket choice, Standard Motor Products provides parts with a reputation for good quality and reliability, often rivaling original equipment. For a sensor that is moderately difficult to access, choosing a reliable part can save you from doing the job twice.
Economy Aftermarket Brands
- Dorman: Dorman is known for making a wide range of parts available. However, their electronic components can be hit-or-miss in terms of quality and longevity.
- Walker Products, Global Parts, True Tech, Spectra: These brands typically offer a budget-friendly option. They can be a good choice if cost is the primary concern, but may not have the same long-term durability as a premium brand.
Estimated Replacement Costs
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $16.51 - $102.80 |
| New OEM (AC Delco) | $80 - $150 |
| Used OEM | $15 - $40 (Not Recommended) |
| Shop Labor | $100 - $225 |
Frequently Asked Questions
Where is the camshaft position sensor located on a 1986-1993 Riviera?
It is located on the front of the engine, on the timing cover. You will find it just below and to the side of the water pump pulley.
What is OBD1 Code 41?
Code 41 is a diagnostic trouble code for the older On-Board Diagnostics (OBD1) system used in these cars. It specifically indicates that the ECM has not received a signal from the camshaft position sensor for a few seconds while the engine is running.
Can I replace this sensor myself?
Yes, this is a feasible DIY job for someone with mechanical experience. The main challenge is access. You will need to remove the serpentine belt and likely the water pump pulley to reach the 10mm bolt that holds the sensor in place. 🎬 Watch this step-by-step guide to replacing the sensor yourself. If you suspect the magnet has fallen off, the repair becomes much more involved.
What's the difference between a camshaft and a crankshaft sensor?
They perform similar functions but monitor different shafts. The crankshaft sensor tracks the position and speed of the crankshaft (engine speed). The camshaft sensor tracks the position of the camshaft (valve timing). The computer uses both signals together. The crank sensor is primary for ignition, while the cam sensor is used to fine-tune the timing for sequential fuel injection.
Helpful Videos
Technical Specifications

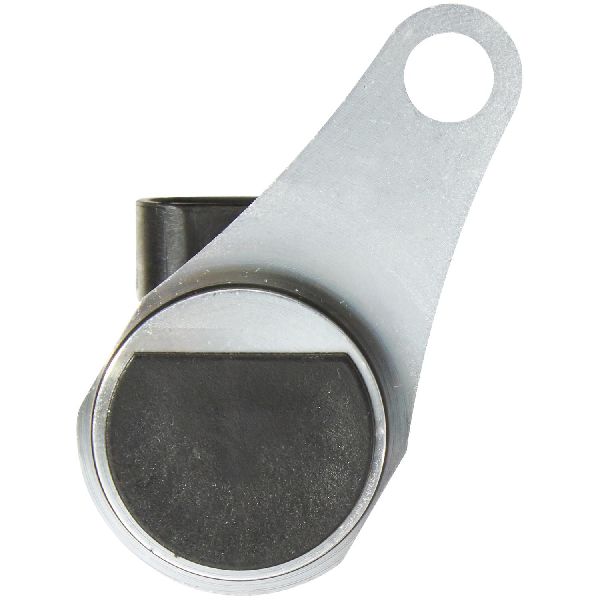

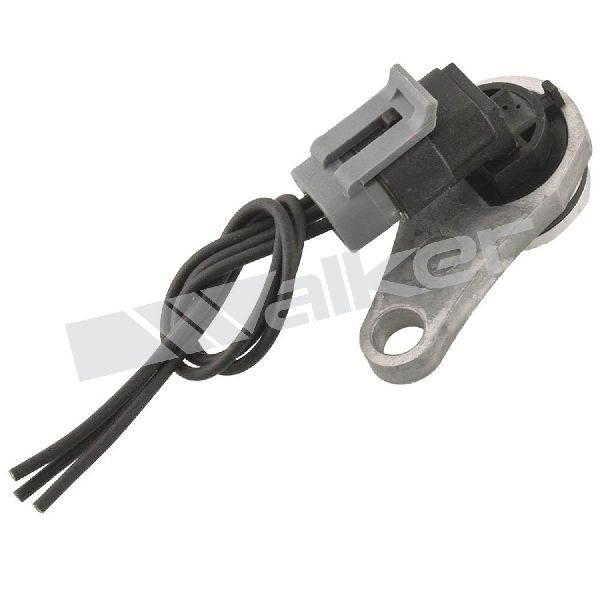

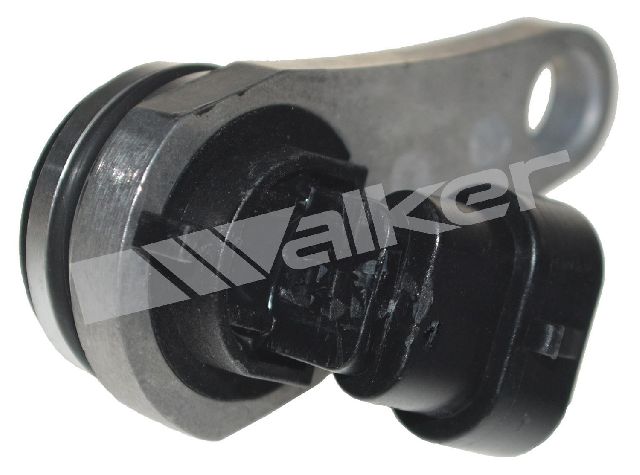

OEM Part Numbers: 25516915 (Sensor) 25530386 (Interrupter Magnet)
Hall-Effect Sensor for GM 3800 (LN3) Distributorless Ignition System
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
