Ford F-250 (1984-1994) Throttle Position Sensor Replacement and Diagnosis
Fix hesitation, poor automatic shifting, and stalling on your Ford truck by understanding this critical sensor.
- A bad TPS is a common cause of hesitation, stalling, and especially poor automatic transmission shifting on 1984-1994 F-250s.
- For diesel trucks with the E4OD transmission, a faulty sensor (FIPL) can lead to costly transmission damage.
- Aftermarket brand quality varies significantly; premium brands like Delphi are a safer bet than budget options with mixed reviews like Dorman.
- Proper installation requires adjusting the new sensor with a multimeter to a closed-throttle voltage of just under 1.0V.
Is a Bad Throttle Position Sensor Causing Your Truck's Problems?
If your 1984-1994 F-250 is acting up, the Throttle Position Sensor (TPS) is a likely suspect. This sensor sends information about the throttle blade's position to the main computer. When it starts to fail, the computer gets bad information, leading to a host of drivability issues. Because this sensor is a simple potentiometer that wears out over time, problems are common on high-mileage trucks.
Symptoms of a Failing TPS
A bad TPS can make your truck feel unpredictable. Here are the most common signs:
- Hesitation or Stumbling: When you press the gas pedal, the truck might hesitate or feel like it has a 'dead spot' before accelerating.
- Poor Automatic Transmission Shifting: If you have an automatic, especially the E4OD, a bad TPS 🎬 Watch: How to test and adjust the TPS for E4OD issues. can cause harsh shifts, delayed shifting, or hunting for gears. This is one of the most common symptoms for this generation of F-250.
- Erratic Idle: The engine might idle too high, too low, or surge up and down randomly.
- Sudden Stalling: The engine may stall for no apparent reason, which can be dangerous while driving.
- Check Engine Light: The computer may detect the faulty signal and turn on the check engine light. On these trucks, you will need an OBD-I code reader to check for codes like 121 or 124.
Diesel E4OD Transmission Warning
For F-250s with a diesel engine and the E4OD automatic transmission, the FIPL (TPS) is critical. A failing sensor can cause severe transmission damage. Ford issued technical bulletins recommending the sensor be checked or replaced every 50,000 miles to prevent premature transmission failure.
Choosing the Right Aftermarket TPS: Brand Quality Matters
When shopping for a new aftermarket TPS, you'll find a wide range of quality and price. For a critical sensor like this, choosing a reliable brand can save you from doing the job twice.
- Premium Aftermarket (e.g., Delphi): Brands like Delphi are often original equipment (OE) suppliers for major automakers. They build parts to meet or exceed factory specifications and are a trusted choice for reliability.

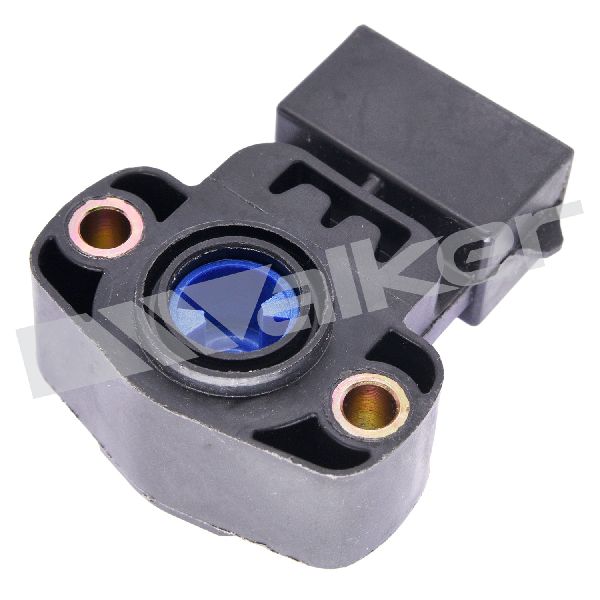

- Standard Aftermarket (e.g., Standard Ignition, Walker Products, Holstein): These brands offer a balance of quality and value. They are generally reliable for most repairs and are a solid choice if an OEM or premium part isn't in the budget.
- Economy / Mixed Reviews (e.g., Dorman): While some Dorman parts are known for improving on factory designs, their electronic components, including the TPS, have very mixed reviews from truck owners. Many forum users report premature failures. While the low price is tempting, it can be a gamble.
Pro Tip: Voltage Adjustment is Key
Proper installation requires setting the correct closed-throttle voltage. Using a multimeter, you must adjust the sensor until it reads just under 1.0 volt (0.90V - 0.99V is ideal). Some aftermarket sensors may require you to slightly widen the mounting holes with a drill bit to get enough adjustment. Skipping this step will cause performance issues even with a new part.
Cost of a New Throttle Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket TPS | $28.15 - $98.77 |
| New OEM (Motorcraft) TPS | $80 - $150 |
| Shop Labor | $90 - $150 |
Frequently Asked Questions
Can I just clean my old TPS?
No. The TPS fails because the internal electronic contacts wear out, creating dead spots in the signal. Cleaning the outside of the sensor or the throttle body will not fix a worn-out sensor. Replacement is the only solution.
Why is my truck still acting up after replacing the TPS?
The most common reason is incorrect voltage adjustment. The sensor must be set to under 1.0V at closed throttle. If the voltage is set too high, the computer thinks you are pressing the gas pedal at idle, causing a high idle and shifting problems. 🎬 Watch: How to perform a proper TPS replacement and idle reset. Also, ensure the wiring connector is clean and making good contact.
What is an OBD-I code?
Trucks from this era use the first-generation On-Board Diagnostics (OBD-I) system. Unlike modern cars, you need a special code reader (or use the paperclip method to flash the Check Engine light) to get codes. A faulty TPS often triggers codes related to the TPS signal being out of range.
Is the installation DIY-friendly?
Yes, this is a good project for a DIY mechanic. 🎬 See this step-by-step TPS replacement walkthrough for your F-250. The sensor itself is easy to replace once you get to it. The main task is removing the air intake tubing and the throttle body itself to access the sensor, which is mounted on the bottom. You will need basic hand tools and a multimeter to set the voltage.
Helpful Videos
Technical Specifications
OEM Part Numbers: E5TZ-9B989B E6TZ-9B989A
The most critical specification is the closed-throttle output voltage, which must be adjusted to between 0.90 and 0.99 volts for proper engine and transmission operation.
