Nissan Tsuru Distributor Cap Replacement Guide (1984-1994)
Diagnose and choose the right new distributor cap for your 1984-1994 Nissan Tsuru.
- A bad distributor cap causes misfires, hard starting, and stalling, especially when the engine is hot.
- Always inspect for oil leaks inside the distributor, as this points to a more significant issue than just the cap.
- Replace the distributor rotor at the same time as the cap for a complete repair.
- Consider a quality brand like Standard Ignition with brass terminals for better longevity and performance.
Is Your Tsuru's Distributor Cap Failing?
On a 1984-1994 Nissan Tsuru, the distributor cap is a simple but critical maintenance item. When it wears out, it can cause a variety of engine performance problems. Because it's a simple plastic and metal part exposed to high heat and voltage, it will eventually crack, corrode, or develop carbon tracks that short out the spark.
Symptoms of a Bad Distributor Cap
- Engine Misfires: The engine may hesitate, stumble, or run rough, especially under load.
- Hard Starting: The engine may take longer than usual to start, or it may crank but not start at all.
- Stalling: The engine might stall when it gets hot or while idling. Tsuru owners often report issues where the engine dies after reaching normal operating temperature. 🎬 Watch: How to fix a Tsuru that stalls when hot
- Loss of Power: You may notice your car feels sluggish and doesn't accelerate as it should.
- Visible Damage: If you remove the cap, you might see cracks, corrosion on the metal terminals, or black lines (carbon tracking) on the inside.
Check for Oil Leaks!
A very common problem on these Nissan engines is for the distributor's internal oil seal to fail. Oil leaks up into the distributor, contaminating the cap, rotor, and critical ignition components inside. If you see oil inside your distributor cap, the entire distributor assembly may need to be resealed or replaced.

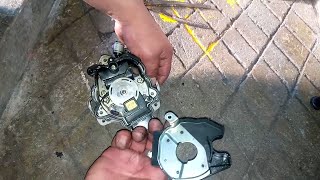

🎬 See this step-by-step guide on replacing the internal oil sealChoosing the Right Aftermarket Cap
For a vehicle of this age, new OEM parts are generally not available. You will be choosing from aftermarket brands. Quality can vary, so it's important to know what you're buying.
Brand Quality Tiers
Not all aftermarket parts are created equal. For a critical ignition part, choosing a quality component is important.
- Standard Ignition: This is a well-regarded aftermarket brand known for producing reliable ignition components. Their parts often meet or exceed OEM specifications and are a solid choice for a dependable repair. Some reviews note that Standard parts succeed where cheaper alternatives fail.
- Walker Products: Walker is often positioned as a budget-friendly option. While they claim to meet OE quality, some user feedback suggests that quality can be inconsistent. This may be a suitable choice if the price is the primary concern, but it may not have the same longevity as a premium brand.
Always Replace the Rotor, Too
The distributor rotor spins inside the cap and is the other half of the system. It wears out at the same rate as the cap. For a complete and effective repair, you should always replace the distributor rotor when you replace the cap. Many parts are sold as a kit for this reason.
Cost of Replacing a Nissan Tsuru Distributor Cap
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Distributor Cap | $12 - $110 |
| Shop Labor for Installation | $50 - $100 |
Cost estimates are for the part only and do not include taxes or shop supplies. Labor costs are based on a typical hourly rate and the job's simplicity.
Frequently Asked Questions
Do I need a special tool to replace the distributor cap?
No. A simple Phillips head screwdriver is usually all that is needed to remove the two or three screws holding the cap in place.
🎬 Watch: A quick walkthrough on changing your Tsuru distributor capWhat's the difference between brass and aluminum terminals?
Higher-quality distributor caps often use solid brass terminals. Brass is an excellent conductor and is highly resistant to corrosion, which helps the cap last longer and perform better. Cheaper caps may use aluminum or steel terminals, which can corrode more quickly and offer less reliable performance over time.
My car runs fine when cold but stalls when it's hot. Is it the cap?
It could be, but this symptom is also very common for a failing ignition module (or "pickup coil") located inside the distributor. Heat causes electronic components to fail. If a new cap and rotor don't solve the issue, the problem likely lies deeper within the distributor assembly.
How do I know which cap to buy for my Tsuru?
Over the long 1984-1994 production run, Nissan used distributors from different manufacturers, like Hitachi. It is very important to confirm the exact year and engine of your car. When possible, check for markings on your old distributor to ensure you buy a cap that fits correctly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22162-01B01
Fitment can vary. Check if your vehicle has a Hitachi-made distributor, as this may affect part selection.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
