Your 1984-1995 Dodge Caravan Manifold Absolute Pressure (MAP) Sensor: A Complete Guide
Address poor fuel economy and rough running in your Caravan by understanding and replacing its MAP sensor.
- A bad MAP sensor on this Caravan typically triggers OBD1 fault codes 13 or 14.
- Symptoms often mimic a vacuum leak; always check the vacuum hose to the sensor first.
- Replacement is very easy for a DIYer, as the sensor is located on the firewall, not directly on the engine.
- Choosing a quality aftermarket brand like Standard Ignition or Walker Products is a reliable choice for this repair.
Is Your Caravan's MAP Sensor Failing?
A bad MAP sensor sends wrong information to your van's computer. This can make your engine run poorly because the air-fuel mixture is incorrect. Common signs include a noticeable drop in gas mileage, a rough or shaky idle, and a general lack of power or hesitation when you press the gas pedal. You might also smell gasoline or see black smoke from the exhaust, which means the engine is running too rich (using too much fuel).
Check for OBD1 Trouble Codes
For these pre-1996 vans, you can check for codes without a scanner. Cycle the ignition key ON-OFF-ON-OFF-ON within five seconds, and watch the 'Check Engine' light flash. A Code 13 means there was no change in the MAP sensor reading, and a Code 14 means the sensor's voltage is too low. These are strong indicators of a failed MAP sensor.
Choosing the Right Aftermarket MAP Sensor
For a vehicle of this age, an original Mopar part can be hard to find and may not be necessary. A quality aftermarket sensor is often a reliable and cost-effective choice. However, not all brands are created equal. They can be grouped into tiers based on reputation and quality.
Tier 1: Quality Aftermarket (Recommended)
These brands are known for making parts that meet or exceed original specifications and are trusted by many mechanics.
- Standard Ignition (SMP): A long-standing brand with a reputation for producing reliable sensors. While occasional issues can occur with any brand, SMP is generally considered a top-tier aftermarket choice.

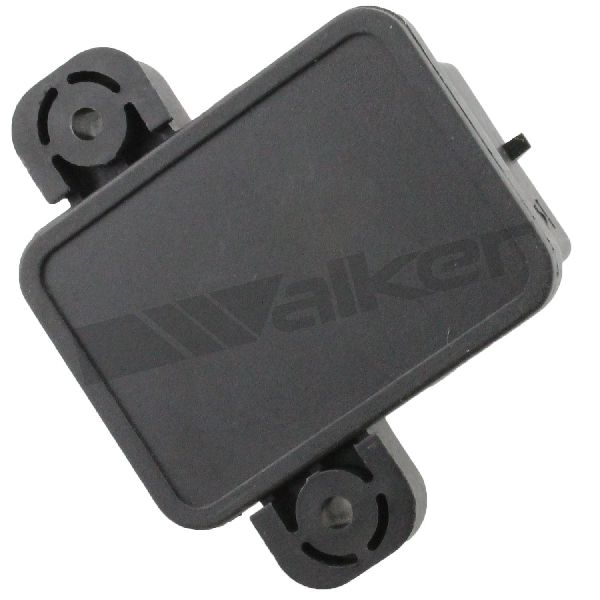

- Walker Products: With decades of experience, Walker focuses on fuel and engine management parts. They state their sensors are 100% tested and designed to be direct OE replacements.
Tier 2: Economy Brands
These brands provide a lower-cost alternative, but quality and longevity can be inconsistent. They may be a choice for a budget-focused repair, but be aware of potential issues.
- Spectra: While a known brand, some user reviews mention issues with fitment and reliability for their sensors.

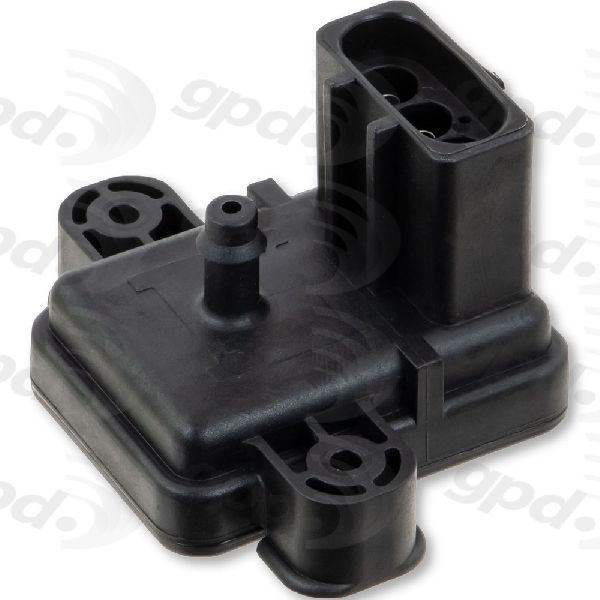

- Global Parts: This brand falls into the value category, offering a budget-friendly option, though specific user feedback is limited.
Cost of Replacing Your Caravan's MAP Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $50.13 - $113.54 |
| New OEM (Mopar) | $100 - $150 |
| Used OEM | $20 - $40 |
| Shop Labor | $50 - $100 |
Check Vacuum Hoses First!
Before buying a new sensor, inspect the small rubber vacuum hose that runs to it. A cracked, loose, or clogged hose can cause the exact same symptoms as a failed sensor and is a much cheaper fix.
Frequently Asked Questions
Where is the MAP sensor located on my 1984-1995 Caravan?
On these first and second-generation Caravans, the MAP sensor is usually not mounted directly on the engine. Look on the firewall, on the passenger side of the engine bay. It's a small, black, rectangular part with an electrical plug and a single vacuum hose connected to it.
How hard is it to replace the MAP sensor?
This is a very easy job, perfect for a beginner. You only need basic hand tools. The process involves disconnecting the battery, unplugging the electrical connector, pulling off the vacuum hose, and removing one or two small bolts. The entire replacement should take less than 30 minutes.
Can I just clean my old MAP sensor?
It is generally not recommended. The failure is usually internal to the sensor's electronics or diaphragm. Cleaning the outside or the vacuum port will not fix a failed sensor. Given the part's importance and reasonable cost, replacement is the only reliable solution.
Is a cheap MAP sensor worth it?
While tempting, an ultra-cheap sensor can be a gamble. These parts provide critical data to the engine computer. A low-quality sensor may provide inaccurate readings, leading to continued performance problems, or it may fail prematurely. Sticking with a reputable aftermarket brand is a safer investment.
Technical Specifications
OEM Part Numbers: 5234024 4638998 4728396
3-pin male electrical connector with a single vacuum hose port.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
