A/C Compressor Clutch Guide for the 1984-1996 Chevrolet Corvette C4
Is your C4 Corvette's A/C not blowing cold? The compressor clutch might be the culprit, and it's a repair you can handle.
- You can replace the A/C clutch on a C4 Corvette without discharging the refrigerant, making it a great DIY-friendly repair.
- Before buying a new clutch, confirm your system has a proper refrigerant charge, as a low-pressure safety switch will prevent engagement.
- Properly shimming the new clutch to achieve a 0.020-inch air gap is critical for correct operation and longevity.
- If you see oily residue or the compressor is seizing, you likely need to replace the entire compressor assembly, not just the clutch.
Is Your Corvette's A/C Clutch Failing?
A failing A/C compressor clutch on a C4 Corvette can show several signs. Before you assume the entire compressor is bad, check for these specific clutch-related symptoms. 🎬 Watch: A step-by-step guide to diagnosing and repairing A/C issues. Addressing a bad clutch is much cheaper than replacing the whole compressor assembly.
Common Failure Symptoms:
- A/C Blows Warm Air: The most obvious sign is when the A/C system fails to cool. If the clutch doesn't engage the compressor, the refrigerant cycle never starts.
- Grinding or Squealing Noises: A loud grinding or squealing sound from the engine bay that starts or stops when you turn the A/C on is a classic sign of a worn-out clutch bearing. You might hear this noise constantly if the pulley bearing is failing.
- Visible Smoke or Black "Goo": Smoke or a black, oily substance slung around the front of the compressor points to a serious failure. This could be the clutch material burning up or the compressor's front shaft seal leaking oil.
- Clutch Won't Engage: You should hear a distinct "click" from the engine bay when the A/C is turned on, followed by a slight change in engine RPM. If there's no click, the clutch isn't engaging. This could be a bad coil, an incorrect air gap, or an electrical issue.
- Engine Stalling: In severe cases, a seizing compressor can put such a heavy load on the engine when the clutch engages that it causes the engine to stumble or stall.
Choosing the Right Aftermarket A/C Clutch
For the C4 Corvette, the original equipment compressor was typically a durable Nippondenso (Denso) unit. Often, the clutch fails long before the compressor itself. This makes replacing only the clutch an attractive and cost-effective repair. You can replace the clutch without opening the sealed refrigerant system, avoiding the cost of evacuation and recharge.
🎬 See this walkthrough on how to replace the clutch assembly.Aftermarket Brand Quality: Four Seasons vs. Global Parts
When shopping for an aftermarket clutch, you'll likely encounter brands like Four Seasons and Global Parts Distributors (GPD). Here’s an honest look at what to expect:

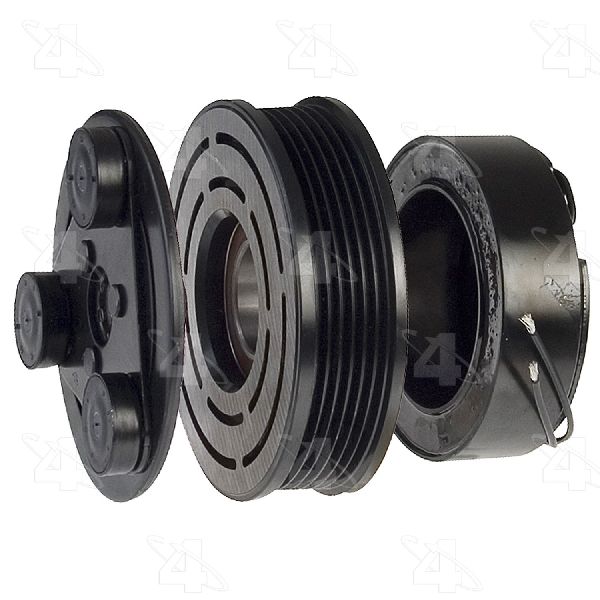

- Four Seasons: This is a very common and widely available aftermarket brand. Reviews are mixed. Some users have had good experiences, finding them to be a reliable, budget-friendly choice. Others have reported parts failing prematurely or even being defective out of the box. It is generally considered a standard-tier aftermarket option.

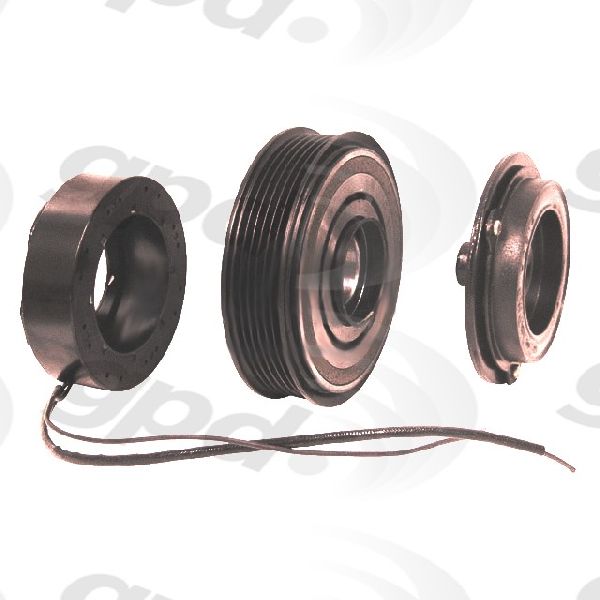

- Global Parts Distributors (GPD): This is another aftermarket supplier. While there is less specific feedback available for this brand on the C4 Corvette, one user in a forum noted a GPD clutch failing within a year.
Pro Tip: Given the mixed reviews for some aftermarket brands, it's wise to inspect the part carefully upon arrival. More importantly, many failures come from incorrect installation. The air gap between the clutch plate and the pulley is the most critical adjustment. For the C4's Nippondenso compressor, this gap should be set to 0.020 inches using the shims provided in your kit.
Vehicle-Specific Issues & TSBs
While no major recalls exist for the A/C compressor on these models, a couple of Technical Service Bulletins (TSBs) are worth noting:
| Part | Estimated Cost |
|---|---|
| New Aftermarket Clutch Kit | $131.27 - $210.53 |
| New OEM Clutch Kit | $300+ (if available, often discontinued) |
| Shop Labor (Clutch Only) | $150 - $300 |
| Full Compressor Replacement (Shop Job) | $1180 - $1743+ |
Frequently Asked Questions
Do I have to discharge the A/C system to replace the clutch?
No. On the 1984-1996 Corvette, you can replace the A/C compressor clutch, pulley, and coil while the compressor remains on the engine with the refrigerant lines attached. This saves you significant time and money.
What tools are needed to replace the A/C clutch?
You will need basic hand tools, a serpentine belt tool, a strap wrench or oil filter pliers to hold the clutch hub, and snap ring pliers. Some clutch designs may also require a specific A/C clutch puller/installer tool, which can often be rented from auto parts stores.
My clutch won't engage. Is it broken?
Not necessarily. The system has a low-pressure switch that prevents the clutch from engaging if the refrigerant is too low. This protects the compressor from damage. Always check for proper refrigerant charge and test for electrical issues (power and ground at the clutch connector) before condemning the clutch itself.
What is the most common mistake when installing a new clutch?
Failing to set the correct air gap. An incorrect gap can cause the clutch to not engage, slip and burn up, or engage with a loud bang. The gap must be set to 0.020 inches using the included shims.
Should I replace the whole compressor instead?

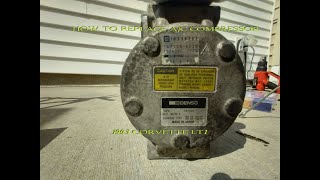

If only the clutch bearing is noisy or the coil has failed, just replacing the clutch is fine. However, if the compressor is leaking from its front seal (flinging oil), is seizing (stalling the engine), or has failed internally (sending metal debris through the system), you must replace 🎬 Watch: How to replace the full compressor on an LT1. the entire compressor, accumulator/drier, and orifice tube, and flush the system.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10263019 10268616 1134351 1134319
Compressor Type: Nippondenso 10PA20C Clutch Air Gap: 0.020 inches
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
