Choosing the Right Spark Plug Wire Set for Your 1984-1996 Corvette
Restore your C4 Corvette's performance and reliability by selecting the perfect spark plug wire set for your engine.
- For 1992-1996 LT1/LT4 models, wire replacement is more difficult due to the Optispark distributor; prioritize sets with correct lengths and boot angles.
- For stock engines, a quality OEM-equivalent set from brands like ACDelco or NGK is an excellent and reliable choice.
- Performance wires like MSD or Taylor offer better heat resistance but may require modifying the stock wire holders to fit their larger diameter.
- Always apply dielectric grease to the boots and replace wires one at a time to avoid mixing up the firing order.
Signs of Failing Spark Plug Wires on a C4 Corvette
When spark plug wires begin to fail, the symptoms are often noticeable. Because the wires wear out from heat, vibration, and age, the electrical current they carry can become weak or inconsistent. This leads to problems you can feel and hear.
Common signs include a rough idle, engine hesitation during acceleration, and a general loss of power. You might also experience engine misfires, which can feel like a stutter or stumble from the engine. 🎬 Watch a breakdown of common symptoms of bad spark plug wires. In some cases, a failing wire can cause the Check Engine Light to illuminate. Visually, you may see cracks, melting, or burn marks on the wire's insulation, or notice a clicking sound from electricity arcing to the engine block or exhaust manifolds.
Choosing Your Aftermarket Spark Plug Wire Set
For a vehicle like the C4 Corvette, aftermarket spark plug wires often meet or exceed original equipment (OE) quality. The key is to choose a reputable brand that fits your specific engine and needs. Wires come in different diameters, like 7mm, 8mm, or 8.5mm, with thicker wires generally offering better insulation against heat and electrical interference.
Brand Quality Tiers
| Tier | Brands | Best For |
|---|---|---|

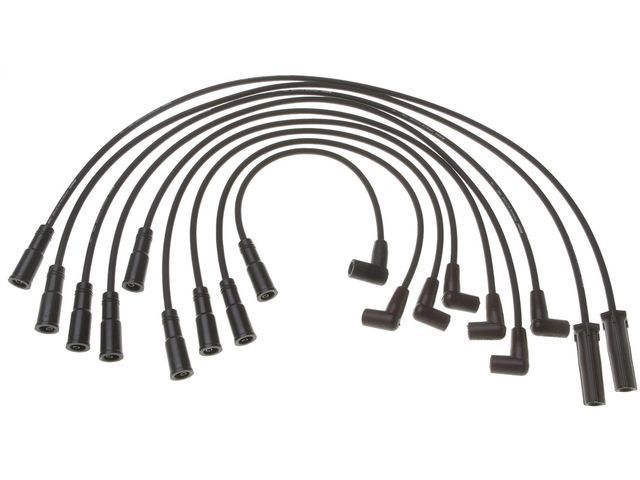

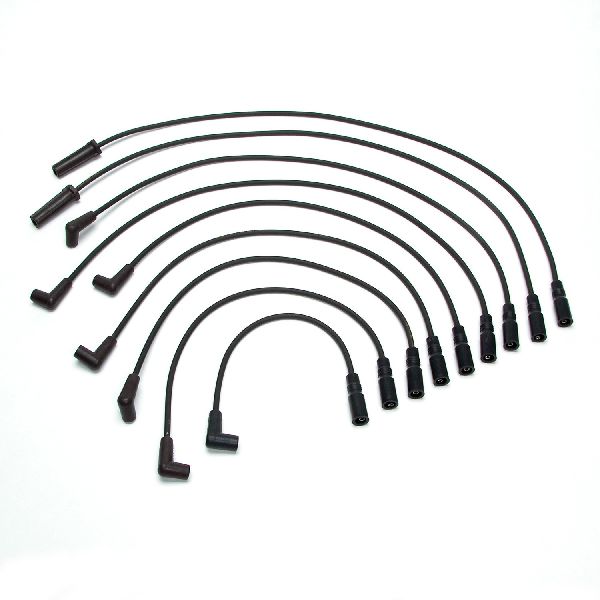

| OEM-Equivalent & Premium Aftermarket | ACDelco, NGK, Delphi, Denso | Owners seeking factory-style fit, reliability, and performance for a stock or lightly modified Corvette. ACDelco is the original equipment supplier and a trusted choice. NGK is also highly regarded by owners for quality and fit. |

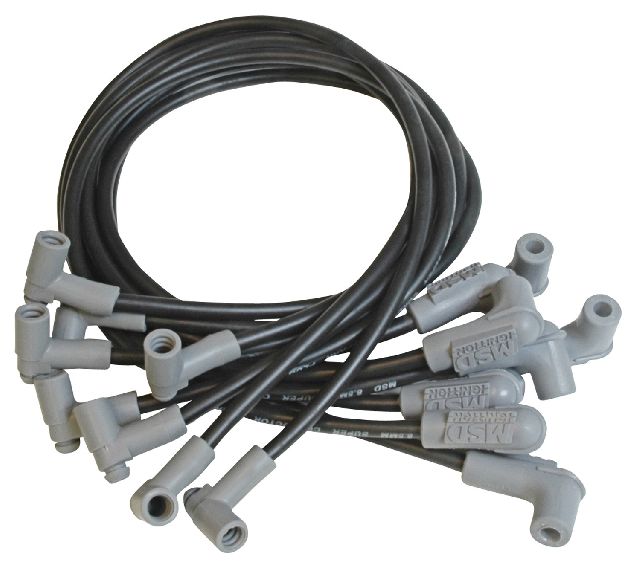

| Performance | MSD, Taylor Cable, Granatelli, JBA | Enthusiasts with modified engines or those wanting enhanced heat protection and potentially lower resistance. Taylor Spiro-Pro and MSD Super Conductor wires are popular choices, often featuring thicker 8mm or 8.5mm insulation. Be aware that thicker wires may require modifying or replacing the stock wire looms to fit properly. |

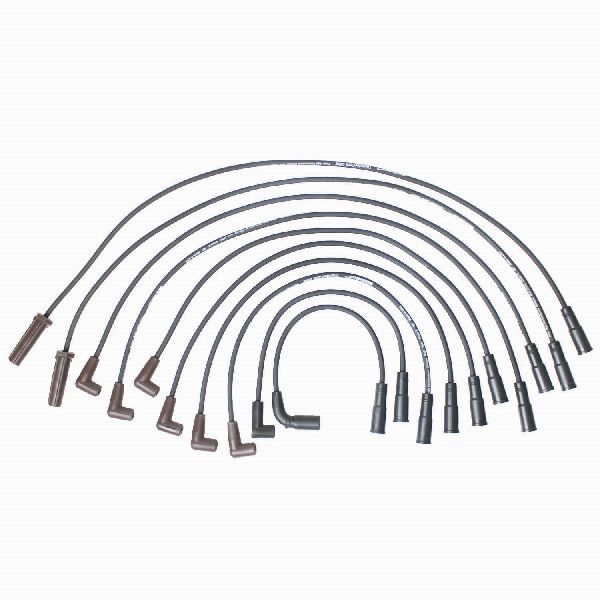

| Standard/Value | Standard Wires, Walker Products | Daily drivers and budget-conscious owners needing a reliable replacement for aging, failed wires on a stock vehicle. These provide a functional, cost-effective solution. |
A Special Note for 1992-1996 LT1/LT4 Owners
The Optispark distributor on later C4 models makes spark plug wire replacement more challenging. The distributor is located low on the front of the engine, and routing the driver's side wires is particularly difficult. Using a wire set with the correct length and boot angles is critical to ensure they connect securely to the Optispark and are routed away from hot engine components. Some owners find it easier to access the connections by removing components like the serpentine belt and tensioner.
🎬 See a step-by-step guide for replacing wires on LT1 engines.Frequently Asked Questions
Do I need special tools to change my spark plug wires?
Generally, no special tools are required, but a spark plug wire puller can help remove stubborn boots without damaging the wires. A set of extensions and a swivel for your socket wrench will be very helpful, especially for reaching the rear spark plugs. For LT1/LT4 engines, you may need basic hand tools to remove components like the belt tensioner for better access.
Should I replace my spark plugs at the same time?
Yes, it is highly recommended. Worn spark plugs require higher voltage to create a spark, which puts extra strain on the new wires and the entire ignition system. Replacing both at the same time ensures the whole system is in top condition.
🎬 Learn how to change both spark plugs and wires together.What is dielectric grease and should I use it?
Dielectric grease is a non-conductive, silicone-based grease applied to the inside of the spark plug wire boots. It helps seal out moisture, prevents the boots from getting stuck to the spark plugs and distributor terminals, and makes future removal easier. It is a highly recommended step during installation.
Will performance wires give my stock Corvette more horsepower?
If your old wires were failing, you will notice a performance improvement from new wires, but a high-performance set is unlikely to add noticeable horsepower to an otherwise stock engine. The main benefits of performance wires are improved durability, heat resistance, and ensuring a strong, reliable spark for highly modified engines.
Are there any recalls for C4 Corvette spark plug wires?
No specific recalls or Technical Service Bulletins (TSBs) were found for spark plug wires on the 1984-1996 Chevrolet Corvette. Most issues are related to normal wear and tear or damage from engine heat.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12192195 19171893

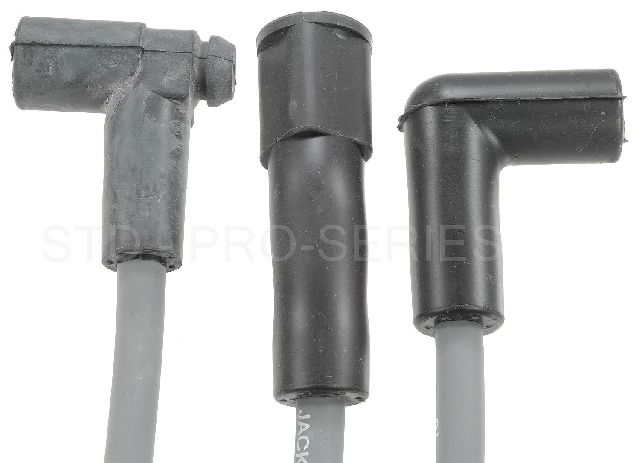

Vehicle-specific fit for 1984-1991 (L98) or 1992-1996 (LT1/LT4). Wire diameter typically ranges from 7mm (stock) to 8.5mm (performance). Core types include carbon suppression (OEM style) and spiral wound (performance). Boot angles are straight or 90-degrees depending on the application.
