Choosing the Right Spark Plug Wire Set for Your 1984-1998 Ford F-350
Get the right spark and prevent misfires by picking the perfect wire set for your gas-powered F-350.
- This guide is only for gas engines (5.8L V8, 7.5L V8); diesel models do not use spark plug wires.
- Symptoms of failure include rough idle, misfiring, and poor fuel economy.
- For heavy use or engines with headers, choose high-temperature performance wires from brands like MSD or Taylor Cable.
- Always replace wires one at a time to avoid mixing up the firing order, and consider replacing the distributor cap and rotor simultaneously.
Is it Time for New Spark Plug Wires?
The spark plug wires on your 1984-1998 F-350 live in a harsh environment. Constant heat from the engine, especially the big 7.5L (460) V8, can make the wire insulation brittle and cracked. When this happens, the electrical energy can leak out or 'arc' to metal parts of the engine instead of going to the spark plug. This causes a range of problems you'll definitely notice.
Symptoms of Failing Wires:
- Rough Idle: The engine may shake or run unevenly when you're stopped.
- Engine Misfires: You might feel a hesitation or stumble during acceleration. This happens when a cylinder fails to fire properly.
- Reduced Power and Poor Fuel Economy: If your truck feels sluggish or you're filling up the tank more often, weak spark could be the culprit.
- Check Engine Light: A modern OBD-II scanner on 1996 and newer models might show codes like P0300 (Random Misfire) or P0301-P0308 for specific cylinder misfires. 🎬 Watch: Step-by-step spark plug replacement for the 5.8L engine
- Visible Damage: Look for cracks, burns, or melted spots on the wire insulation and boots. You can perform a simple test by spraying a fine mist of water on the wires at night with the engine running; sparks jumping from the wires indicate they are bad. 🎬 Watch: How to test your spark plug wires for leaks
Engine Identification is Key
This guide applies only to gasoline engines found in the 1984-1998 F-350, such as the 5.8L (351W) V8 and the 7.5L (460) V8. Diesel engines from this era (6.9L IDI, 7.3L IDI, and 7.3L Power Stroke) do not use spark plugs or spark plug wires. Ordering the correct set requires knowing your engine size, as the wire lengths and boot angles are specific.
Choosing Your Aftermarket Spark Plug Wire Set
For these classic Ford trucks, aftermarket wire sets often provide excellent value and performance, sometimes exceeding the original factory quality. The key is choosing a reputable brand. Wires are generally categorized by the diameter of the wire (e.g., 8mm, 8.5mm), which often relates to the thickness of the insulation. Thicker insulation provides better protection against heat and electrical arcing.
Brand Tiers for Your F-350
- Performance (Best): Brands like MSD and Taylor Cable are favorites among truck enthusiasts for a reason. Their wires, often 8.5mm or larger, feature high-quality silicone jackets and low-resistance conductors. This provides excellent heat resistance, crucial for the 460 V8, and ensures maximum spark energy reaches the plugs. They are a great choice if you have headers or other performance modifications.
- OEM-Quality (Better): Brands such as NGK, Denso, and Ford Performance (Motorcraft) offer direct-fit replacement wires that meet or exceed original specifications. They provide reliable performance for a daily driven or work truck with a stock engine setup. These are a solid, no-nonsense choice for long-term durability.
- Standard Replacement (Good): Brands like Standard and Walker Products offer affordable, direct-fit sets that will get your truck running smoothly again. They are a good budget-friendly option for a standard repair.
A Note on "Universal" Wires
Some performance brands offer "universal" or "cut-to-fit" wire sets. While these can provide a custom-routed look, they require you to cut each wire to the perfect length and crimp the terminal ends yourself. This is best left to experienced mechanics. For most owners, a direct-fit set for your specific engine is the faster and more reliable option.
Cost of Replacement
The cost for a new set of spark plug wires for a 1984-1998 F-350 varies by brand and quality. Below is a general price breakdown.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard) | $28 - $60 |
| New Aftermarket (OEM-Quality/Performance) | $60 - $197 |
| Shop Labor for Installation | $75 - $150 |
Frequently Asked Questions
Do I need special wires if I have aftermarket headers?
Yes, it's highly recommended. Headers generate more heat closer to the spark plugs. Opt for a performance set from brands like MSD or Taylor with high-temperature silicone boots (some are rated up to 450°F or higher) to prevent them from melting or burning. Some sets come with 135-degree boots which can help with clearance.
Should I replace the distributor cap and rotor at the same time?
Yes, it is best practice to replace the spark plug wires, distributor cap, and rotor together as a set. These components all wear out at a similar rate. Replacing them all at once ensures a complete and reliable ignition tune-up.
🎬 See this walkthrough for replacing your distributor cap and rotorWhat's the difference between 8mm, 8.5mm, and 9mm wires?
The measurement refers to the outer diameter of the wire. A larger diameter generally means thicker insulation, which provides better heat resistance and prevents voltage leaks (arcing). For a hard-working Ford V8, especially the 7.5L/460, a thicker 8.5mm or 9mm wire is a good upgrade for durability.
Are there any recalls for spark plug wires on these trucks?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls or specific Technical Service Bulletins (TSBs) related to spark plug wires for 1984-1998 Ford F-350 models. Any issues are typically due to age and normal wear.
Helpful Videos
Technical Specifications
OEM Part Numbers: WR4001-B

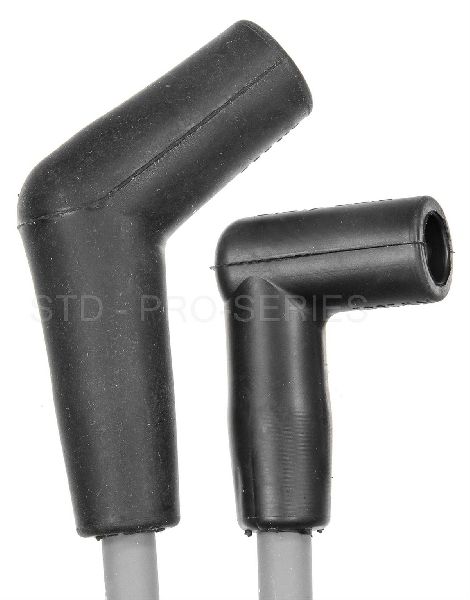

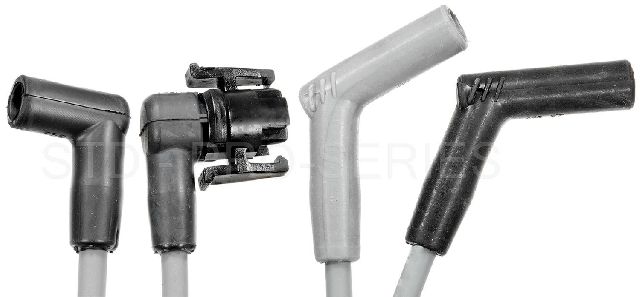

Vehicle and engine-specific. Key attributes are wire length, boot angle (straight, 45-degree, 135-degree), and wire diameter (typically 7mm to 9mm). The 1984-1998 F-350 gas V8s use a set of 9 wires (8 for cylinders, 1 for coil-to-distributor).
