Chevrolet Corvette C4 Universal Joint Replacement Guide (1984-1999)

Symptoms of a Failing Universal Joint

Worn U-joints on a C4 Corvette typically start with subtle noises and vibrations that get worse over time. Ignoring these signs can lead to a complete failure, which can cause significant damage to the driveshaft, half-shafts, or differential. Common symptoms include:

• Clunking or Clanking Noise: A loud "clunk" when shifting from Park into Drive or Reverse is a classic sign of a worn U-joint with excessive play. You might also hear a metallic clicking or clanking that matches the rotation of the wheels, especially at low speeds.
• Squeaking or Chirping: A rhythmic squeak that increases with vehicle speed often points to a dry or failing U-joint that lacks lubrication. This sound is different from brake squeal and is directly related to driveshaft speed.
• Vibration: A vibration felt through the floor or seats, particularly at highway speeds, can be caused by a stiff or unbalanced U-joint. This happens as the worn joint struggles to rotate smoothly.
• Visible Rust or Play: If you inspect the U-joints, you might see rust dust around the bearing caps, which indicates the internal grease has dried up. You can also check for play by putting the car in neutral (with wheels blocked and on jack stands) and attempting to twist the driveshaft or half-shafts by hand. There should be zero play or movement in the joints.

Choosing the Right Aftermarket U-Joint for Your C4

For a vehicle from this era, high-quality aftermarket parts are the standard for replacement. The original U-joints were made by Spicer, and they remain a top choice. A critical factor for the C4 Corvette is that it uses aluminum yokes on the driveshaft and half-shafts. You must use U-joints with special coatings on the bearing caps to prevent galvanic corrosion between the steel U-joint and the aluminum yoke.

Important Sizing Information

The C4 Corvette uses different U-joint sizes for the driveshaft and half-shafts. Ordering the wrong part is a common mistake.

• Driveshaft (2 required): 1310 series
• Half-Shafts (4 required): 1350 series

Brand Tiers for Aftermarket U-Joints

When shopping for new U-joints, you'll find several reputable brands. They can be grouped into the following tiers based on quality, performance, and owner feedback.

Tier 1: Premium / Heavy-Duty

These brands are considered the best for durability and strength, often exceeding original equipment quality. They are highly recommended for all types of driving, especially for performance applications.

• Dana/Spicer: As the original equipment manufacturer, Spicer is the benchmark for quality. Their non-greasable "Spicer Life Series" joints are known for being incredibly durable and are a favorite among Corvette owners for their strength and longevity. Many consider them the best you can get.
• Moog (Premium Line): Moog is a well-respected aftermarket brand. Their premium, non-greasable U-joints are considered a strong alternative to Spicer and are known for their durability. Some owners have used them for years with no issues, even with high-horsepower engines.

Tier 2: Standard Replacement / OEM-Equivalent

These brands offer a great balance of quality and value for daily driving and spirited weekend use. They meet or exceed OEM specifications and are a reliable choice.

• ACDelco: As GM's official parts brand, ACDelco parts are a safe bet. However, be aware that they often source parts from different manufacturers, so the U-joint in the box could be a re-branded Spicer or another quality part. Ensure you are getting their "Professional" or premium grade for the best quality.

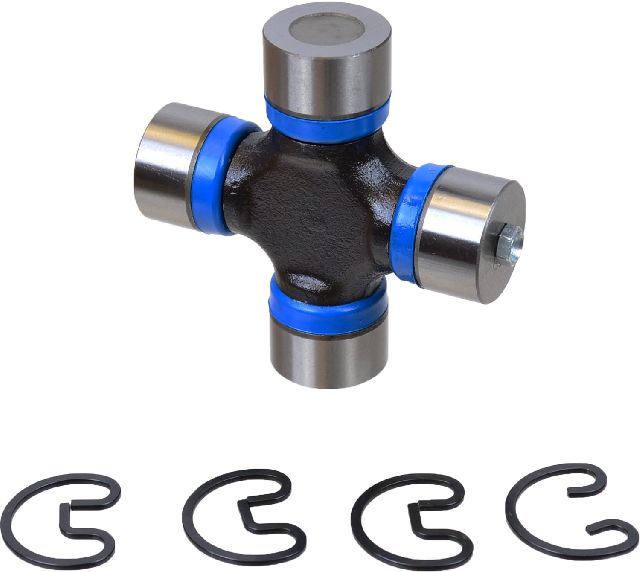

• SKF: A global leader in bearings, SKF produces high-quality U-joints. Some users note their unique seal designs and solid construction. They are a solid choice for a standard replacement.

Tier 3: Value Options

These brands provide a functional replacement at a lower price point. They are suitable for standard-use vehicles where budget is a primary concern.

• GMB: GMB is a common aftermarket brand that offers a cost-effective solution. While not typically placed in the same performance category as Spicer or Moog, they are a viable option for a stock Corvette under normal driving conditions.

Cost to Replace Corvette C4 U-Joints

The cost can vary depending on the brand of parts you choose and whether you perform the labor yourself. Since you need six U-joints for a full replacement, the costs can add up.

Note: Labor costs are estimates and will vary by location and shop. Replacing all six joints at once may result in lower overall labor costs.
