Jeep Cherokee XJ Universal Joint Guide (1984-2001)
Everything you need to know about replacing the U-joints on your 1984-2001 Jeep Cherokee XJ.
- Driveshaft U-joint failure causes clunks and vibrations; axle U-joint failure causes clicking when turning.
- Dana Spicer is the most recommended brand for durability and is considered an OEM-grade part by Jeep owners.
- Non-greasable U-joints are generally stronger and require no maintenance, making them a popular choice.
- Verify your exact U-joint size before ordering, as front axle sizes changed around 1995 and can vary.
Is Your Cherokee Making Noises? It Might Be a U-Joint.
The universal joints on the 1984-2001 Jeep Cherokee XJ are common wear items. Due to the vehicle's design and intended use, these parts are under constant stress. Whether you're hearing a new noise or feeling a strange vibration, it's smart to inspect your U-joints. A failure can leave you stranded, and a severely worn joint can cause damage to other, more expensive parts like the driveshaft or axle yokes.
Symptoms of a Bad U-Joint
Bad U-joints give you plenty of warning before they fail completely. Listen and feel for these common signs:

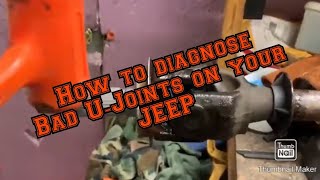

- Clicking or Popping When Turning: A repetitive clicking sound from the front end when you make a sharp turn is a classic sign of a failing front axle U-joint. 🎬 Watch: How to diagnose bad front axle u joints on your XJ The sound gets faster as you move.
- Clunking Noise: A distinct "clunk" when you shift from Drive to Reverse, or when you get on and off the gas, often points to a worn driveshaft U-joint. This is the sound of the driveshaft taking up slack in the bad joint.
- Squeaking or Chirping at Low Speeds: A rhythmic squeak that matches your wheel speed is often an early sign of a U-joint that has lost its grease. This is the sound of dry metal-on-metal.
- Vibrations: A vibration you can feel through the floor, especially at highway speeds, can be caused by a worn and unbalanced U-joint. This may start at a specific speed and get worse as you go faster.
Don't Ignore the Noise
A U-joint failure on the road can be dangerous. A broken driveshaft U-joint can cause the driveshaft to fall, potentially digging into the pavement and causing a loss of control. A broken axle U-joint can damage the axle shaft, ball joints, and steering knuckle.
Choosing the Right Aftermarket U-Joint
For a vehicle like the XJ Cherokee, aftermarket U-joints are often as good or better than the original factory parts. The key is to choose a quality brand. Here’s a breakdown of your options:
Brand Tiers
- Premium (OEM & Off-Road): Dana Spicer
Spicer is the original equipment manufacturer (OEM) for many Jeep components, and their U-joints are widely considered the gold standard. They are known for strength and durability. For most XJ owners, a non-greasable Spicer U-joint is the best choice for a strong, low-maintenance replacement. - Reputable Aftermarket: Moog, SKF
These brands are well-known in the aftermarket. Moog's "Problem Solver" line is popular, though some users report mixed long-term results compared to Spicer. SKF is another trusted name that provides reliable quality for daily driving and light-duty use. - Economy & OE-Style: Crown, Omix-Ada, GMB
These brands specialize in affordable, OE-style replacement parts for Jeeps. They are a good option for a budget-conscious repair on a stock vehicle. While they meet standard specifications, they may not have the same strength or longevity as premium brands, especially under heavy off-road use.
Greasable vs. Non-Greasable U-Joints
You'll see both types available. Non-Greasable (Sealed) joints are generally stronger because the cross is solid metal. They are filled with grease at the factory and require no maintenance. Greasable joints have a zerk fitting to add grease. They can last a very long time *if* you grease them regularly, but many owners forget. For the hassle-free, strongest option, most XJ owners prefer non-greasable Spicer joints.
Common Ordering Mistakes
The biggest mistake is ordering the wrong size. Over the years, Jeep used a few different U-joint sizes on the XJ's Dana 30 front axle. Driveshafts typically use a 1310 series joint. However, front axle shafts can have smaller (5-297x or 5-260x) or larger (5-760x) joints, with the changeover happening around 1995 and also depending on whether the vehicle had ABS. Always verify your vehicle's year and specs before ordering. If in doubt, measuring the old joint's cap diameter is the only way to be certain.
Cost of Replacing a Jeep Cherokee U-Joint
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket U-Joint | $18 - $60 per joint |
| Shop Labor (per joint/axle) | $150 - $300 |
| Total Professional Replacement | $170 - $360+ |

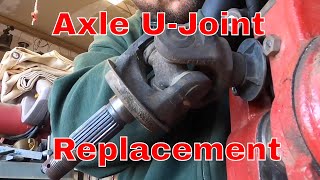

Costs are estimates and can vary based on your location, the specific joint being replaced (axle vs. driveshaft), and the brand of part used. Axle U-joint replacement is more labor-intensive than driveshaft U-joint replacement. 🎬 See this walkthrough for changing a front axle u-joint
Frequently Asked Questions
How many U-joints does my Cherokee have?
Most 4x4 XJs have a total of seven U-joints. There are two on the rear driveshaft, three on the front driveshaft (in the double-cardan joint), and one on each front axle shaft.
Is replacing a U-joint a DIY job?
It can be, but it requires specific tools. You will need a heavy-duty C-clamp press or a ball joint press to remove the old joint and install the new one. A bench vise and some large sockets can also work. Rusted-in joints can be very difficult to remove without heat and a large hammer, so be prepared for a fight.
🎬 Watch: How to replace a u-joint without a hydraulic pressWhat are the Spicer part numbers for my XJ?
For driveshafts, the common part is a 5-1310x (or older 5-153x). For front axles, it's typically 5-297x or 5-760x for 1995 and newer models (or earlier models with ABS), and the smaller 5-260x for pre-95 models without ABS. It is critical to confirm the size for your specific vehicle before buying.
Are there any recalls for Cherokee U-joints?
No recalls were found specifically for universal joints on the 1984-2001 Jeep Cherokee XJ. Searches for recalls and TSBs found issues related to newer model Cherokees (2014+) and different parts, but nothing specific to the XJ's U-joints.
Helpful Videos
Technical Specifications
OEM Part Numbers: J8126637
Common sizes include 1310 series for driveshafts and 5-260x, 5-297x, or 5-760x for front axle shafts, depending on year and ABS. Cap diameters are typically 1.062" or 1.188".
