A Trooper Owner's Guide to Universal Joint Replacement (1984-2002)
Don't let a bad U-joint leave your classic Isuzu Trooper stranded—here's what you need to know.
- Prioritize Spicer brand U-joints for the best quality and longevity; they are widely considered the OEM-equivalent standard.
- Symptoms like clunking, squeaking, and especially vibration should be addressed immediately to prevent a dangerous driveshaft failure.
- Your 4WD Trooper has at least four U-joints; it's wise to inspect all of them and replace them in pairs (front or rear) if possible.
- No specific recalls or TSBs exist for U-joints on the 1984-2002 Trooper; failure is a result of age and wear.
Is Your Trooper's U-Joint Failing?
A failing U-joint gives several clear warning signs. Ignoring them can be dangerous, as a complete failure can cause the driveshaft to detach from the vehicle. This can lead to a loss of control, significant damage to the undercarriage, transmission, and exhaust system.
Common Symptoms: 🎬 Watch: 7 signs of a bad universal joint
- Squeaking Noise: A rhythmic, bird-like squeak that gets faster as you accelerate is often the first sign. This is caused by dry, worn-out needle bearings inside the U-joint cup.
- Clunking or Ringing Sound: A distinct "clunk" when you shift from park into drive or reverse points to excessive play in the joint.
- Vibration: A vibration that you can feel through the floor of the truck, which becomes more noticeable at highway speeds (typically above 40-50 mph). This is a very common and serious symptom.
- Fluid Leaks: In some cases, the vibration from a bad U-joint can damage the output seal on your transmission or the pinion seal on your differential, causing a fluid leak.
Known Issues, Recalls, or TSBs
Searches for official NHTSA recalls and Technical Service Bulletins (TSBs) related to universal joints for the 1984-2002 Isuzu Trooper did not yield any specific results. While other Isuzu commercial trucks have had recalls for related components like U-bolts, the U-joints on the Trooper from this era have no such official campaigns. Failures are typically due to normal wear and tear over time.

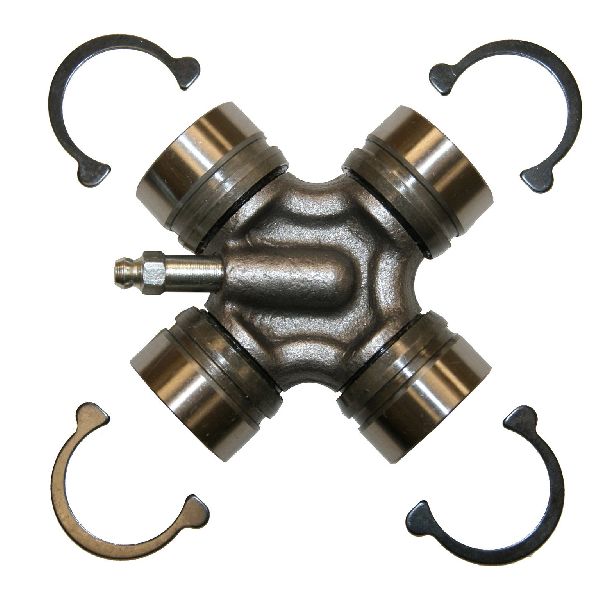

Choosing the Right Aftermarket U-Joint
When replacing U-joints on your Trooper, you have several good aftermarket options. OEM Isuzu parts are difficult to source and often unnecessary, as top-tier aftermarket brands meet or exceed original quality. Brands are generally available in two styles: sealed (non-greasable) and greasable.
Greasable vs. Non-Greasable U-Joints
Non-greasable (sealed) joints are generally stronger because the cross is solid steel. Greasable joints have channels drilled through them for grease to flow, which makes them slightly weaker. However, a greasable joint that is regularly maintained can outlast a sealed one. For most owners who prefer a fit-and-forget solution, a high-quality sealed joint from a brand like Spicer is the top choice.
Brand Quality Tiers:
- Tier 1 (Best Quality): Dana/Spicer
Spicer is widely regarded as the premier choice and is the original equipment manufacturer for many vehicles. They are known for their strength, durability, and precise fit. If you want OEM-or-better quality, Spicer is the brand to choose. - Tier 2 (Good Quality): SKF
SKF is a well-respected bearing manufacturer that produces high-quality U-joints. They are a solid choice and often considered a reliable alternative if Spicer is not available. - Tier 3 (Standard/Economy): Moog & GMB
Moog's quality has received mixed reviews in recent years, with some users reporting premature failures while others find them adequate for daily driving. GMB is generally considered a standard, budget-friendly replacement brand that meets basic OEM standards. These are acceptable for a budget repair but may not offer the same longevity as Spicer or SKF.
| Part/Service | Estimated Cost |
|---|---|
| Single Aftermarket U-Joint | $17 - $78 |
| Shop Labor (per joint) | $110 - $180 |
| Total Professional Replacement (per joint) | $240 - $300 |
Frequently Asked Questions
How many U-joints does my Isuzu Trooper have?
Most 1984-2002 4WD Isuzu Troopers have a total of four universal joints: two on the rear driveshaft and two on the front driveshaft. Some models with a longer wheelbase may have a two-piece rear driveshaft that includes a third U-joint and a center support bearing. It is critical to inspect all of them when you suspect one is failing.
🎬 See this guide on how to check your U-jointsCan I replace a U-joint myself?
Yes, this is a DIY-friendly job for someone with moderate mechanical experience. The main challenge is removing the old, often rusted, U-joint from the driveshaft yokes. You will need basic hand tools, a good hammer, and either a bench vise or a large C-clamp with some sockets to press the old joint out and the new one in. Always wear safety glasses, as the retaining clips can snap off unexpectedly.
🎬 Watch: How to change driveshaft U-joints at homeAre there different U-joints for different years?
Yes. There are differences between the first generation (pre-1992) and second generation (1992-2002) Troopers, and sometimes even within those ranges. For example, specific kits are sold for 1987-1997 and 1998-2002 models. It is essential to enter your vehicle's exact year and submodel to ensure you order the correct part.
Do I need to get my driveshaft balanced after replacing the U-joints?
For a standard U-joint replacement, you typically do not need to re-balance the driveshaft. However, if the driveshaft was damaged during the repair, or if you still have a vibration after installing new joints, a professional balance at a driveline shop is recommended.
Helpful Videos
Technical Specifications
Part numbers vary by year and driveshaft position. For example, Moog offers kits like 'moog-ujoint-packagedeal1110' for 1987-1997 models and 'moog-ujoint-packagedeal1109' for 1998-2002 models. Always confirm fitment using your vehicle's specific year, make, and model before ordering.
