A Guide to the 1985-1989 BMW 635CSi Windshield Washer Pump
Keep your classic 6-Series' windshield clear by understanding its washer pump system.
- The most common failure point is not the pump itself, but a clogged filter screen caused by mixing washer fluids.
- Replacement is a straightforward DIY job that requires removing the front passenger wheel and fender liner.
- Always replace the rubber grommet seal when installing a new pump to prevent future leaks.
- For a classic like the 635CSi, choosing a quality aftermarket brand like Hella or Febi is a smart investment over cheaper options.
Symptoms of a Failing Windshield Washer Pump
On a classic car like the E24 635CSi, parts like the washer pump can fail from age, wear, or blockages. Here’s what to look for:
- No Fluid Spray: You pull the stalk, the wipers move, but no fluid comes out. You might hear the pump motor humming, or you might hear nothing at all.
- Weak or Uneven Spray: The fluid barely reaches the windshield or sprays unevenly. This can be a sign of a dying pump, but it's more often caused by a clogged filter screen at the pump's intake.
- Pump Motor is Silent: If you hear no sound from the pump when you activate the switch, the pump motor has likely failed or isn't receiving power. This could be the pump itself, a blown fuse, or a wiring issue.
- Leaks: Puddles of washer fluid under the car are a sign of a leak. While hoses can fail, the pump housing itself can crack over time, causing fluid to leak out.
Watch Your Washer Fluid Choice
Many BMW owners report that mixing different types of washer fluid, especially using additives like Rain-X, can cause a gel-like substance to form in the reservoir. This gunk will clog the pump's filter screen, starving it of fluid and leading to failure. It's best to stick with one type of fluid or completely flush the system before switching.

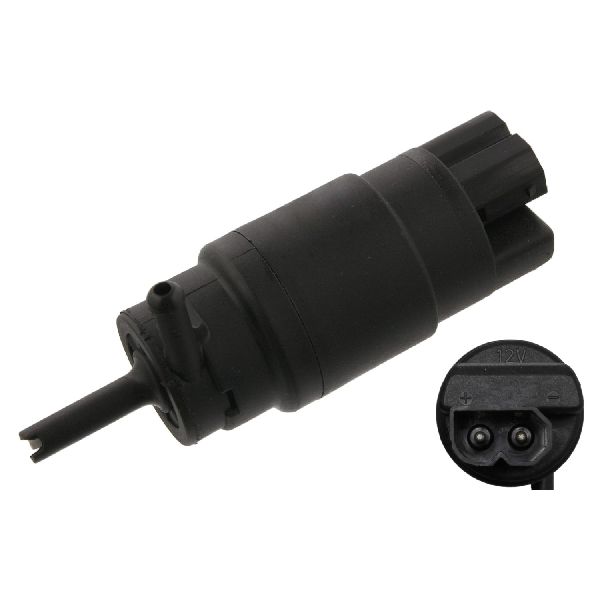

Choosing the Right Aftermarket Pump
For the 1985-1989 635CSi, you don't need to hunt down a rare, expensive OEM part. Several quality aftermarket brands offer direct-fit replacements that perform well. Given the low cost of the part, it's wise to choose a reputable brand to avoid doing the job twice.
| Brand Tier | Brands | Quality & Price Assessment |
|---|---|---|
| OEM-Quality Aftermarket | Hella | Hella is a trusted original equipment supplier for many German car brands. Their pumps are known for reliability and are considered a top-tier choice that should match or exceed the original part's performance. Expect to pay a bit more, but the quality is worth it. |
| Standard Aftermarket | Febi, Trico | Febi (Febi Bilstein) is a well-known German aftermarket brand offering a good balance of quality and price. Trico, famous for wiper blades, also produces reliable replacement pumps designed for easy, direct-fit installation. These are solid, dependable choices for most owners. |
| Economy Aftermarket | URO Parts | URO Parts provides a budget-friendly option. While many users have success with them, especially for less critical components, some forum discussions mention a higher potential for premature failure compared to premium brands. It's an economical choice, but may carry a higher risk of needing replacement sooner. |
Pro Tip: Replace the Grommet
The washer pump pushes into the reservoir through a rubber grommet that also acts as a seal and filter screen. These grommets get hard and brittle with age and are a common source of leaks. It is highly recommended to replace the grommet whenever you replace the pump. Many pumps come with a new one included.
Frequently Asked Questions (FAQ)
Is replacing the washer pump a DIY job?
Yes, for someone with basic mechanical skills. The job requires safely jacking up the front passenger side of the car, removing the wheel, and pulling back the plastic fender liner to access the washer fluid reservoir and pump. The pump itself just pulls out of the reservoir and disconnects from a single electrical plug and hose.
Where is the washer pump located on the 635CSi?
The main washer fluid reservoir and pump are located in the front passenger-side wheel well, behind the fender liner. Some models may have a second, smaller reservoir for an intensive wash system in the engine bay.
Are there any recalls or TSBs for the 635CSi washer pump?
Searches for NHTSA recalls specifically for the 1985-1989 BMW 635CSi's washer pump did not find any results. However, a general Technical Service Bulletin (TSB) for "Windshield Washer Malfunctions" does exist for this era of BMW, indicating it's a known area for service.
My pump runs, but no fluid comes out. Is the pump bad?
Not necessarily. This is the most common symptom of a clogged filter screen at the base of the pump. Using incompatible washer fluids can create a sludge that blocks this screen. You will still need to remove the pump to access and clean or replace the screen, so it's often worth having a new pump on hand in case the motor was strained or is also failing.
Technical Specifications
OEM Part Numbers: 61661377830
The system typically uses a single electric pump pressed into the main reservoir located in the passenger-side wheel well. Some E24s feature a dual-tank 'intensive' cleaning system with a second pump. The pump is a simple DC motor that is activated by the steering column stalk.
