Your Guide to the 1985-1989 Isuzu I-Mark Brake Light Switch
Keep your brake lights working correctly with the right replacement switch.
- A faulty brake light switch is a critical safety failure; replace it immediately.
- Always check bulbs and fuses before replacing the switch.
- Replacement is simple for DIYers and can be done in under 30 minutes.
- Aftermarket brands like Beck Arnley or Standard Ignition are quality choices for this part.
Is Your Brake Light Switch Failing?
A brake light switch is a part that gets used every time you drive. Over decades of use in your I-Mark, the internal components can wear out, or the plastic housing can become brittle. Before you assume the switch is bad, always check the brake light bulbs and the fuse first. 🎬 Watch: How to diagnose why your brake lights aren't working If those are good, the switch is the next likely culprit.
Common Symptoms of a Bad Switch:
- Brake Lights Don't Turn On: This is the most obvious and dangerous symptom. If the switch fails in the 'off' position, your brake lights will not illuminate when you press the pedal.
- Brake Lights Stay On: The switch can also fail in the 'on' position, causing the brake lights to stay lit even when you're not braking. This can drain your battery and confuse other drivers. This may also be caused by a missing or broken rubber stopper on the pedal assembly that is supposed to press the switch.
- Intermittent Brake Lights: The lights may flicker or only work some of the time. This indicates the switch is worn and making a poor connection.
Safety First
Driving without functioning brake lights is extremely dangerous and illegal. It significantly increases your risk of being rear-ended. Do not drive your vehicle if you know the brake lights are not working.
Choosing the Right Aftermarket Switch
For a vehicle like the 1985-1989 Isuzu I-Mark, a new OEM (Original Equipment Manufacturer) switch is likely unavailable. The aftermarket offers several reliable choices. Since there are no widespread, documented issues for this specific model's switch, choosing a quality aftermarket brand is a safe bet.
Expected Replacement Costs
Replacing the brake light switch is an inexpensive repair. The part itself is affordable, and the labor is minimal.
DIY Savings
This is a great job for a DIY mechanic. The switch is usually easy to access in the driver's footwell, attached to the brake pedal bracket. The job typically requires no special tools and can be done in under 30 minutes, saving you the entire cost of labor.
Frequently Asked Questions
How do I know it's the switch and not just a burnt-out bulb?
A single burnt-out bulb is common. However, if all of your brake lights stop working at the same time, the problem is very likely the switch or a fuse, not multiple bulbs failing at once. Always check the fuse first, as it's the easiest and cheapest thing to fix.
Is replacing the brake light switch on an I-Mark difficult?
No, it is generally considered an easy repair. You will need to work in the driver's side footwell, which can be cramped. The switch is located at the top of the brake pedal. The process involves unplugging the electrical connector and then unscrewing the switch from its bracket.
🎬 See this walkthrough on how to replace your brake light switchDo I need to adjust the new brake light switch?
Yes, adjustment is often necessary. The new switch needs to be threaded in just right so the brake lights come on as soon as you begin to press the pedal, but are not on when the pedal is at rest. A good method is to match the position of the jam nut on the new switch to the old one before installing it, and then test and adjust as needed.

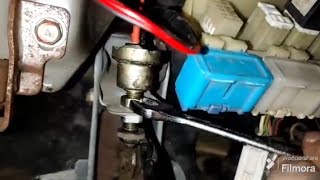

🎬 Watch: How to properly adjust your new brake light switchWhat happens if I ignore a faulty brake light switch?
You should never ignore it. If your brake lights don't work, you are at a high risk of being hit from behind. If they stay on, you will drain your battery and may cause other drivers to react unpredictably. It is a critical safety issue that needs to be addressed immediately.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8940261960 8941568210 8943625240 94024700 94026196 94156821 94362524
2-prong, pedal-mounted electrical switch
